HEV INVERTER

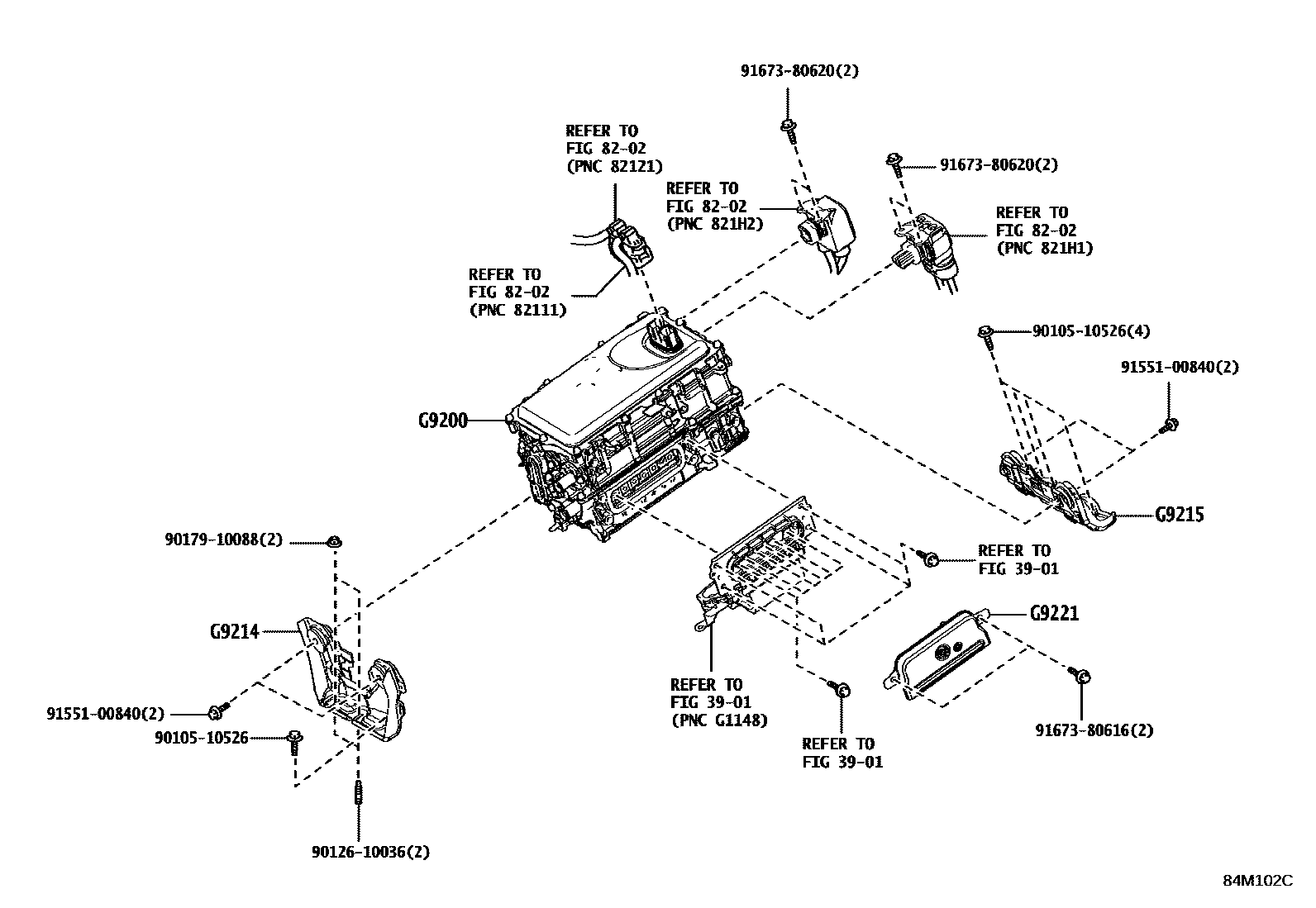

Parts diagram

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG92A048340i202010-202107

subG92A0-48341¥341,000

mainG92A048341i202108-202207

subG92A0-48342¥309,000

mainG92A048342i202208-202210

G9214BRACKET, INVERTER, NO.1

mainG921433040i202010-202210

G9215BRACKET, INVERTER, NO.2

mainG921533040i202010-202210

G9221COVER, INVERTER

mainG902247050i202010-202210

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

12 parts on this diagram · 2 diagrams in section
