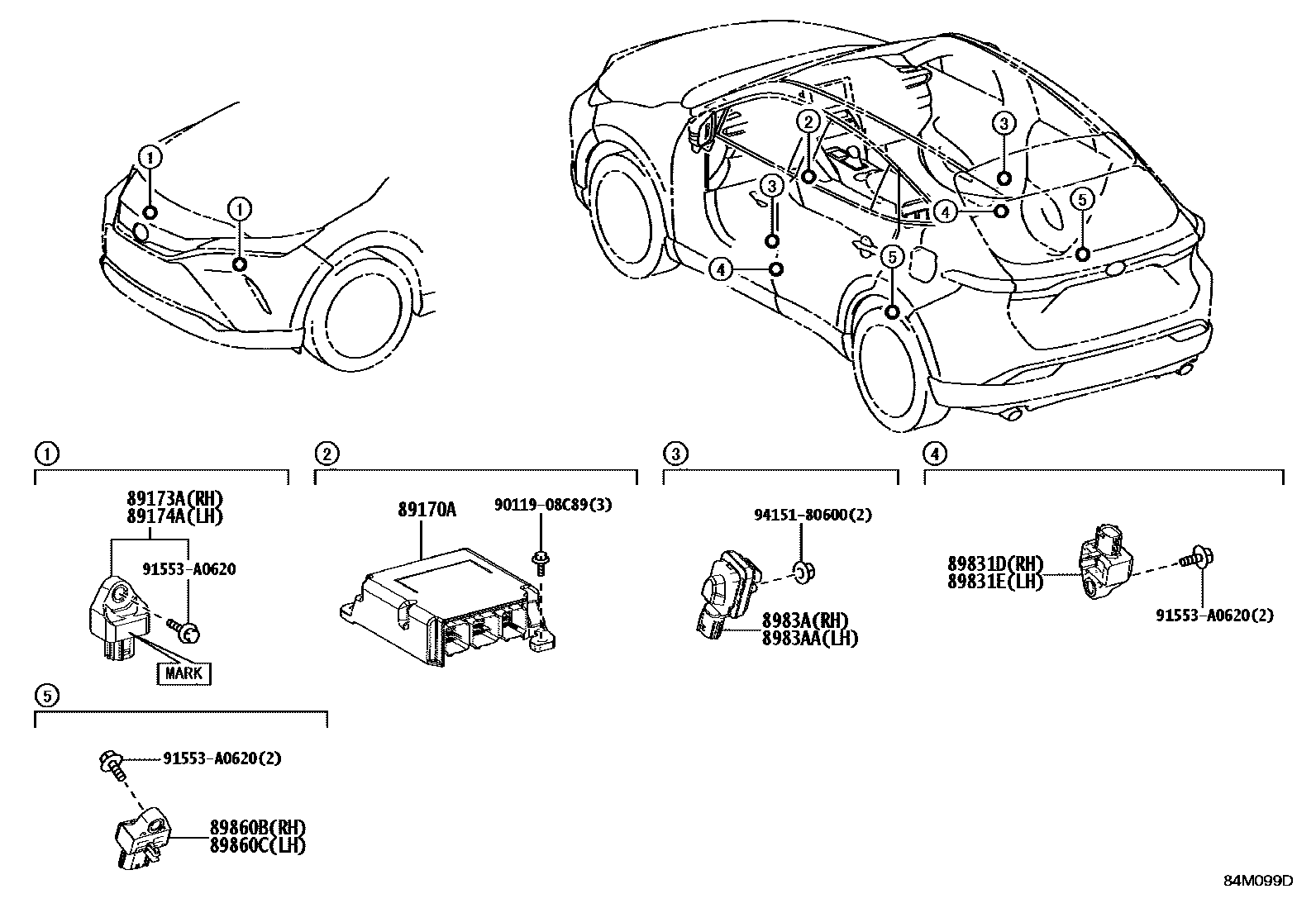

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-48E40iMXUA80202009-202210

*614

main89170-48E50iAXUH80202010-202210

*614

main89170-48J70iMXUA80..G202210-202309

*614

main89170-48J80iAXUH80202210

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iMXUA80..G202304-202309

MARK 89173-11010

main89173-59335iAXUH80;MXUA80..S202304

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iMXUA80..G202304-202309

MARK 89173-11010

main89173-59335iAXUH80,MXUA80202210-202304

MARK 89173-52190

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42020iAXUH80,MXUA80202009-202210

main89831-47050iMXUA80..G202304-202309

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42020iMXUA80..G202210-202304

main89831-47050iMXUA80..G202304-202309

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52010iAXUH80,MXUA80202009-202101

main8983A-52011iAXUH80;MXUA80..S202210

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52010iAXUH80,MXUA80202009-202101

main8983A-52011iAXUH80,MXUA80202102-202210

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-52130iAXUH80,MXUA80202009-202210

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-52130iAXUH80,MXUA80202009-202210

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
