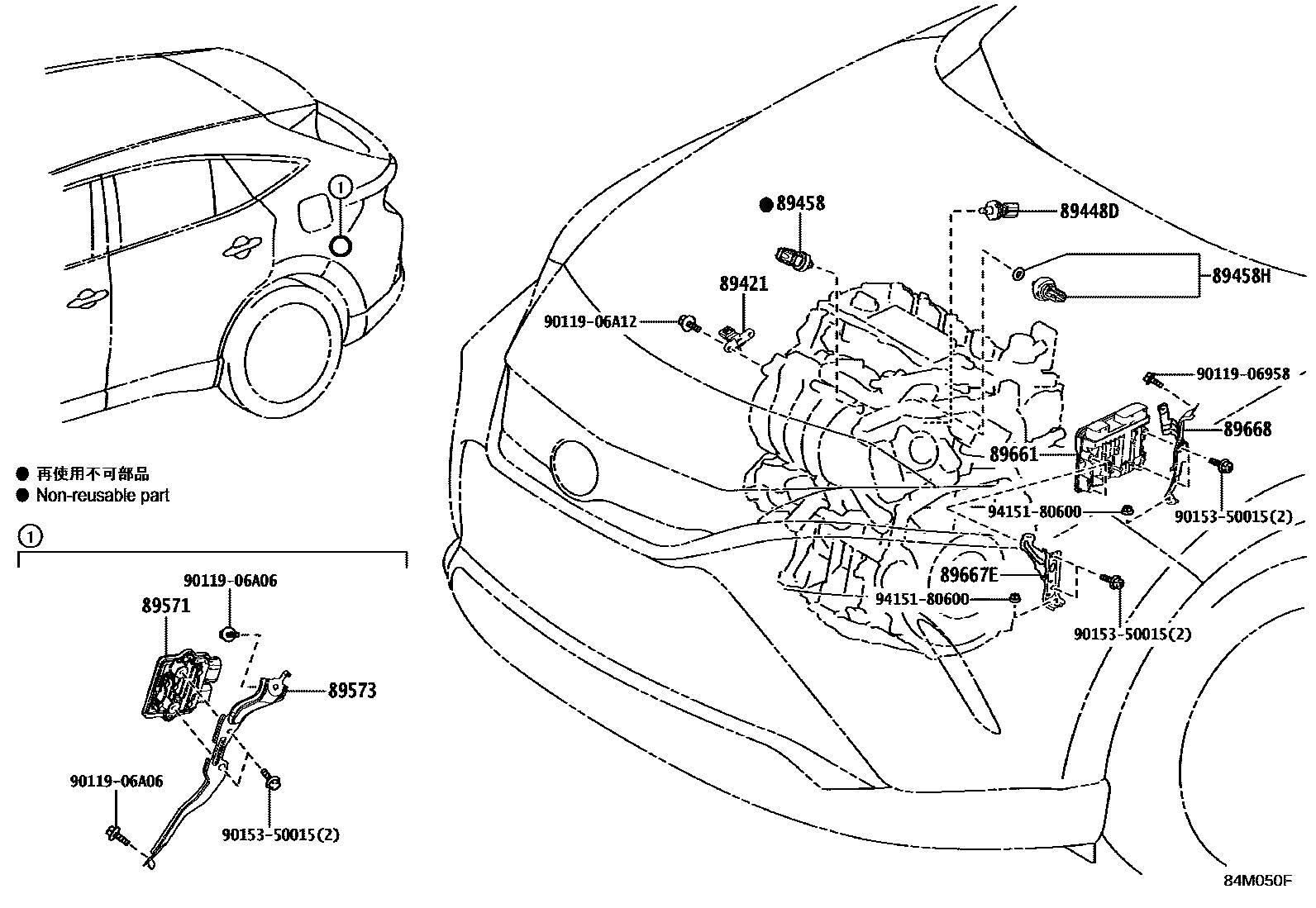

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXUH80,MXUA80202009-202309

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXUH80,MXUA80202009-202309

89458SENSOR, FUEL PRESSURE

main89458-33030iAXUH80;MXUA80..S202009-202309

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXUH80,MXUA80202009-202303

main89458-33042iMXUA80..G202207-202309

89571COMPUTER, FUEL PUMP CONTROL

main89571-48010iAXUH80,MXUA80202009-202309

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-42030iMXUA80..G202009-202309

89661COMPUTER, ENGINE CONTROL

main89661-4D180iMXUA80202009-202112

DENSO TEN,*614

main89661-4D190iMXUA80202112-202210

DENSO TEN,*614

main89661-4D200iAXUH80202010-202210

DENSO,*614

main89661-4D770iMXUA80..G202210-202504

DENSO TEN,*614

main89661-4D810iAXUH80202210-202504

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iMXUA80..G202009-202309

main89667-42080iAXUH80202010-202405

main89667-42081iAXUH80202406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42080iMXUA80202009-202309

main89668-42100iAXUH80202010-202210

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
