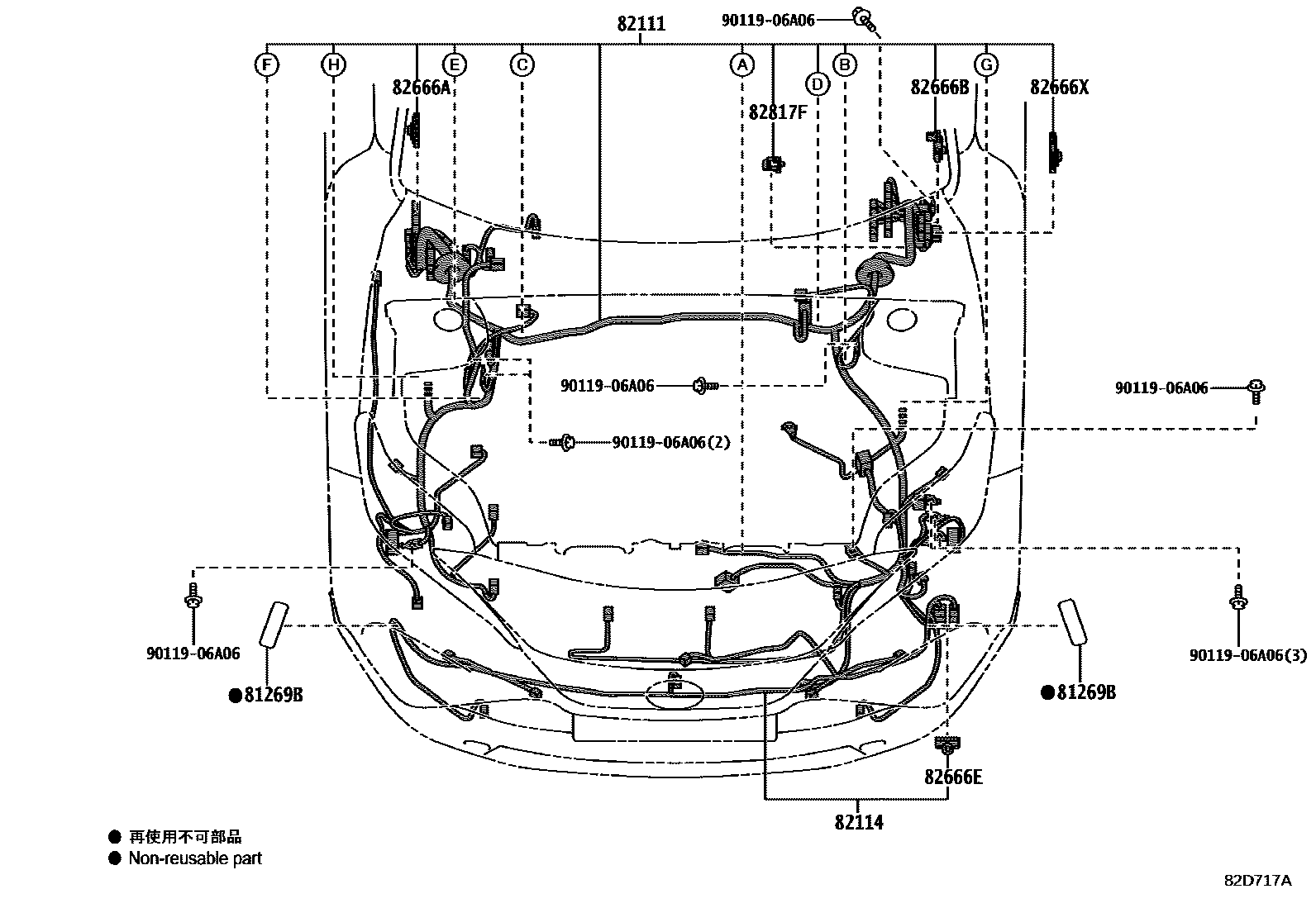

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 1/2 0006 1ENGINE 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1INSTRUMENT PANEL 0010 1DOOR 0011 1FLOOR & ROOF 0012 1FLOOR & ROOF 0013 1HIGH VOLTAGE CABLE 0014 1SEAT 0015 1CLAMP & BRACKET 1/2 0016 1CLAMP & BRACKET 2/2 0017 1CONNECTOR 1/2 0018 1CONNECTOR 2/2

81269BSEAL, FOG LAMP

main81269-42010iMXUA80..G202009-202309

82111WIRE, ENGINE ROOM MAIN

main82111-4DE90iMXUA80202009-202112

main82111-4DE91iMXUA80202112-202210

main82111-4DF20iAXUH80202010-202112

main82111-4DF21iAXUH80202112-202210

main82111-4DF22iAXUH80202210-202310

main82111-4DF23iAXUH80202310

main82111-4DQ70iMXUA80..G202210-202310

main82111-4DQ71iMXUA80..S202310

82114WIRE, ENGINE ROOM, NO.4

main82114-48160iAXUH80,MXUA80202009-202210

main82114-48161iAXUH80202210

main82114-48171iMXUA80..G202210-202309

main82114-48171iMXUA80..S202210

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR & WASHER)

82666AHOLDER, CONNECTOR NO.2

main82666-60220iAXUH80,MXUA80202009-202309

82666BHOLDER, CONNECTOR NO.3

main82666-42710iAXUH80,MXUA80202009-202309

82666EHOLDER, CONNECTOR NO.6

main82666-48130iAXUH80,MXUA80202009-202210

main82666-48750iAXUH80;MXUA80..S202210-202309

82666XHOLDER, CONNECTOR NO.17

main82666-60310iAXUH80,MXUA80202009-202112

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42B60iAXUH80,MXUA80202009-202210

main82817-42L70iMXUA80..G202210-202309

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-42N70iAXUH80,MXUA80202009-202309

9011906A06

main90119-06A06

10 parts on this diagram · 18 diagrams in section
