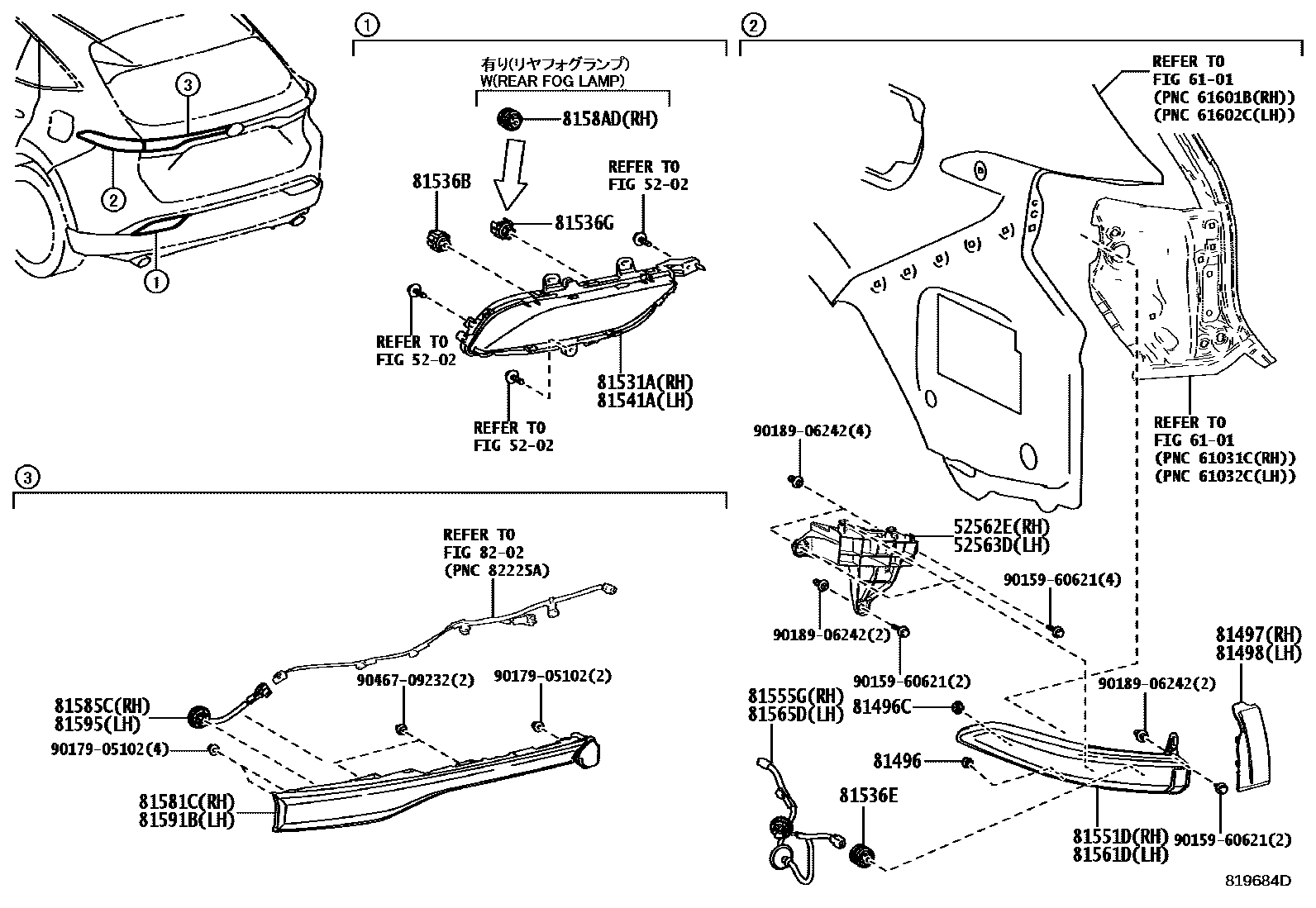

REAR COMBINATION LAMP
5202
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81536ELED, STOP LAMP
81536GLED, BACK-UP LAMP
SINGAPORE SPEC
MALAYSIA SPEC
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81555GCORD, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81565DCORD, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81585CSOCKET & WIRE, REAR LAMP, RH
8158ADLED, REAR FOG LAMP
81591BLENS AND BODY, REAR LAMP, LH
81595SOCKET & WIRE, REAR LAMP, LH
8202
9015960621
main90159-60621
9017905102
main90179-05102
9018906242
main90189-06242
9046709232
main90467-09232
27 parts on this diagram · 1 diagram in section
