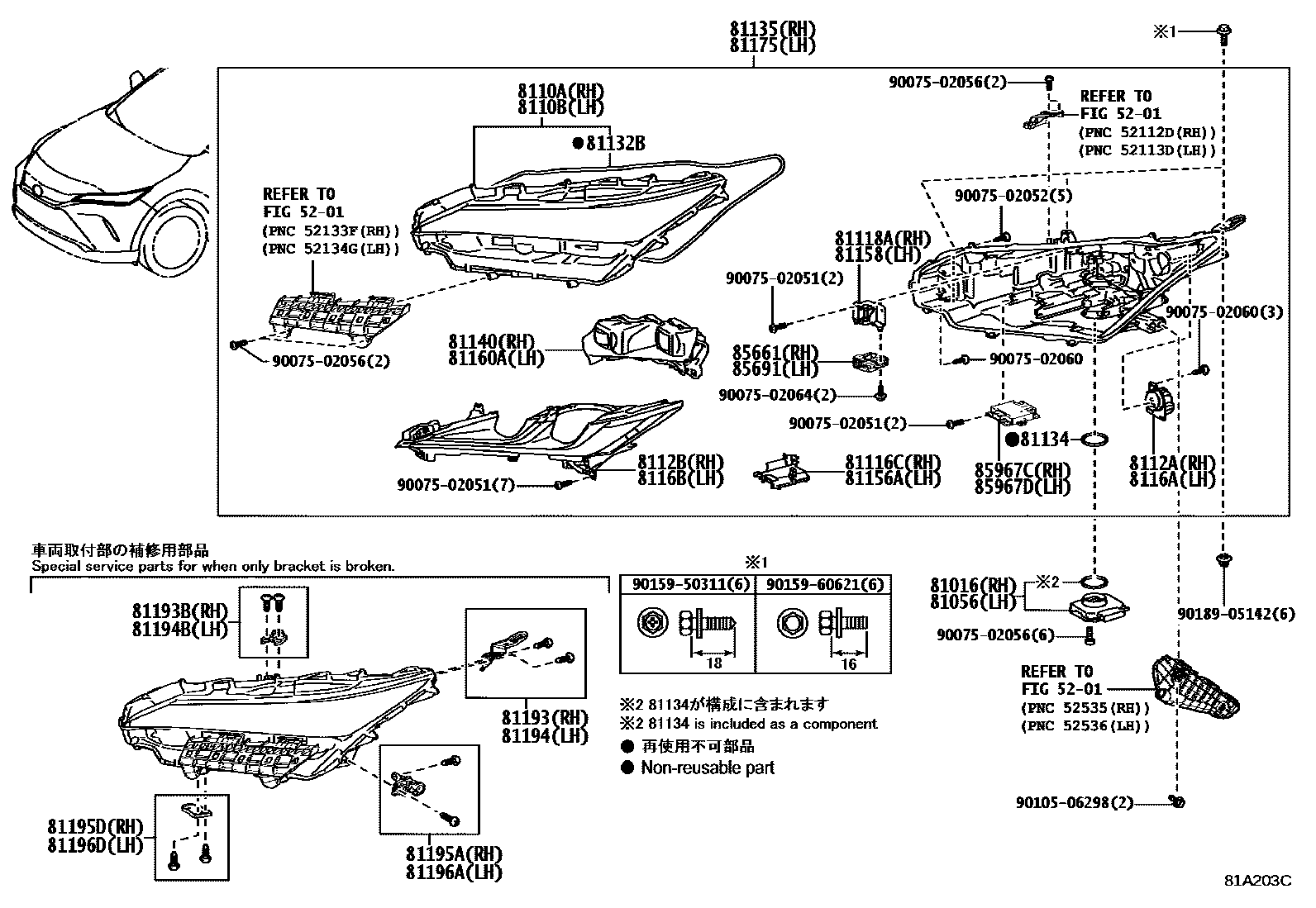

HEADLAMP
5201
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81116CBRACKET, HEADLAMP, RH
81118ABRACKET, HEADLAMP, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
8112BUNIT, HEADLAMP CLEARANCE LED, NO.2 RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81140UNIT ASSY, HEADLAMP LED, RH
81156ABRACKET, HEADLAMP, LH
81158BRACKET, HEADLAMP, LH
81160AUNIT ASSY, HEADLAMP LED, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
8116BUNIT, HEADLAMP CLEARANCE LED, NO.2 LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502056
main90075-02056
9007502060
main90075-02060
9007502064
main90075-02064
9010506298
main90105-06298
9015950311
main90159-50311
9015960621
main90159-60621
9018905142
main90189-05142
40 parts on this diagram · 1 diagram in section
