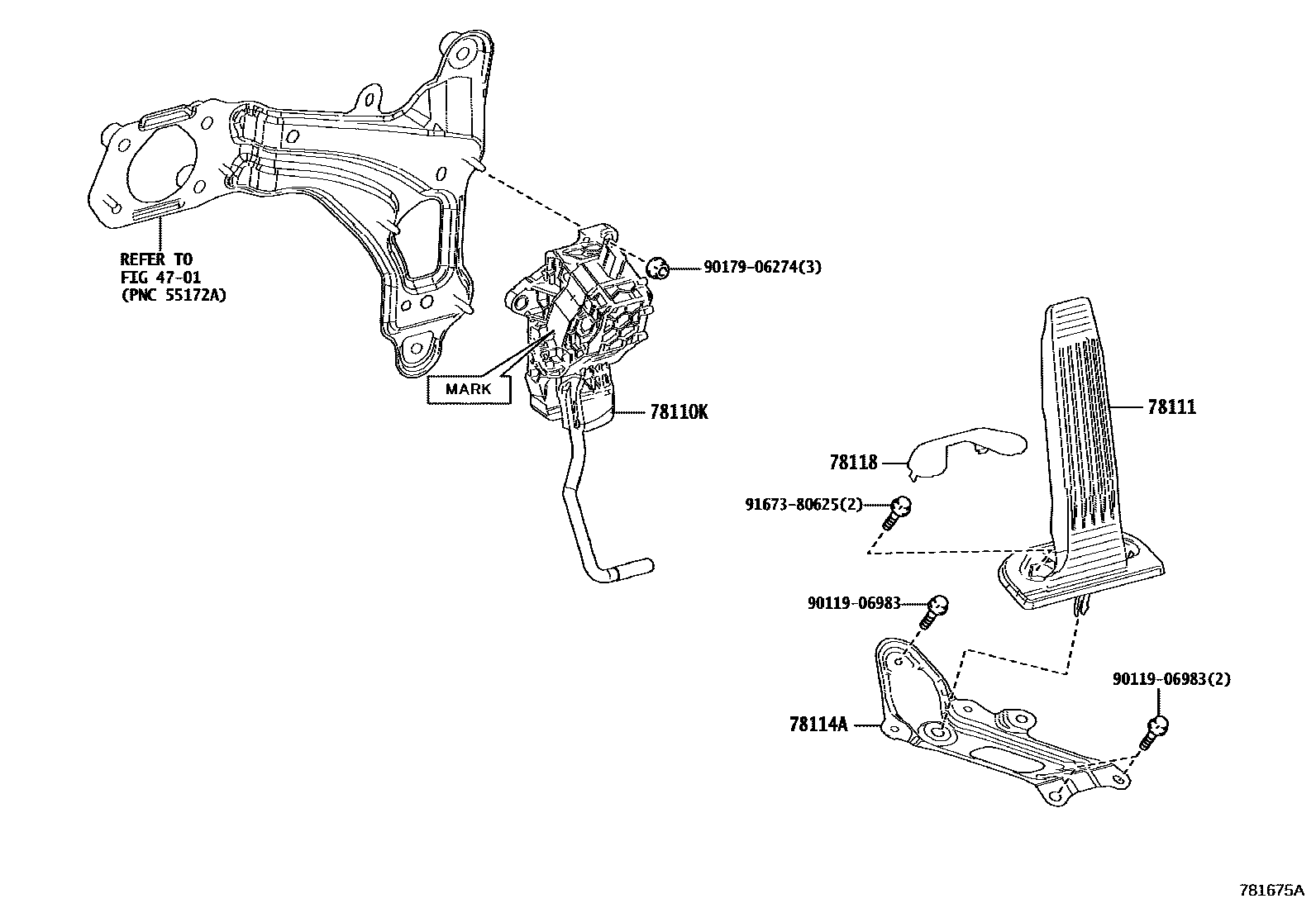

ACCELERATOR LINK

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-42060iMXUA80202009-202010

MARK 78110-42060

sub78110-42061

main78110-42061iAXUH80,MXUA80202010-202309

MARK 78110-42061

78111PEDAL, ACCELERATOR

main78101-33060iAXUH80,MXUA80202009-202111

sub78101-33061

main78101-33061iAXUH80,MXUA80202112-202309

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-42030iAXUH80,MXUA80202009-202309

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXUH80,MXUA80202009-202309

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 1 diagram in section
