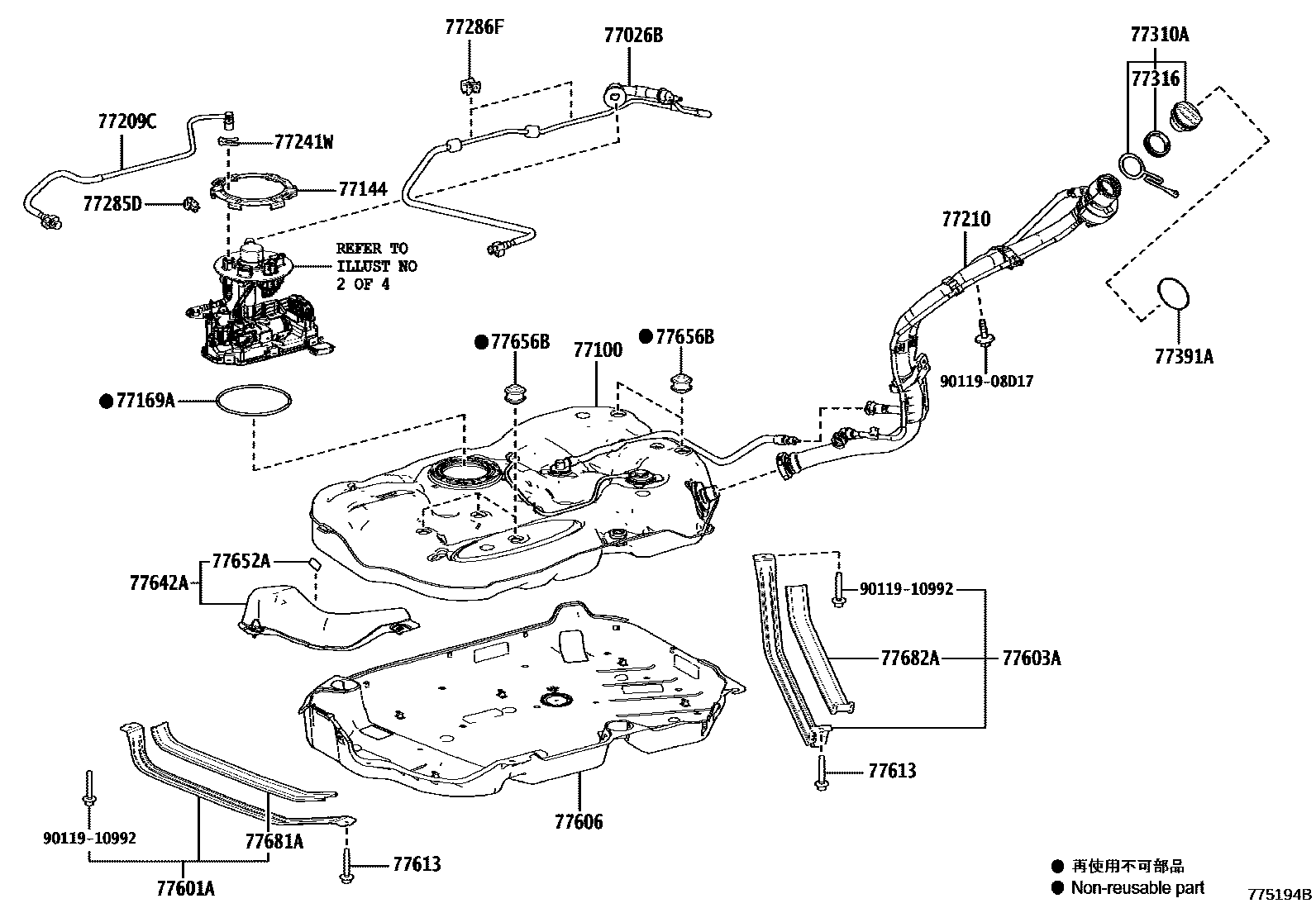

FUEL TANK & TUBE
77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77285DCLAMP, FUEL TUBE, NO.1
77286FCLAMP, FUEL TUBE, NO.2
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77642APROTECTOR, FUEL TANK, NO.2
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77682ASEAT, FUEL TANK BAND, NO.2
9011908D17
main90119-08D17
9011910992
main90119-10992
23 parts on this diagram · 8 diagrams in section
