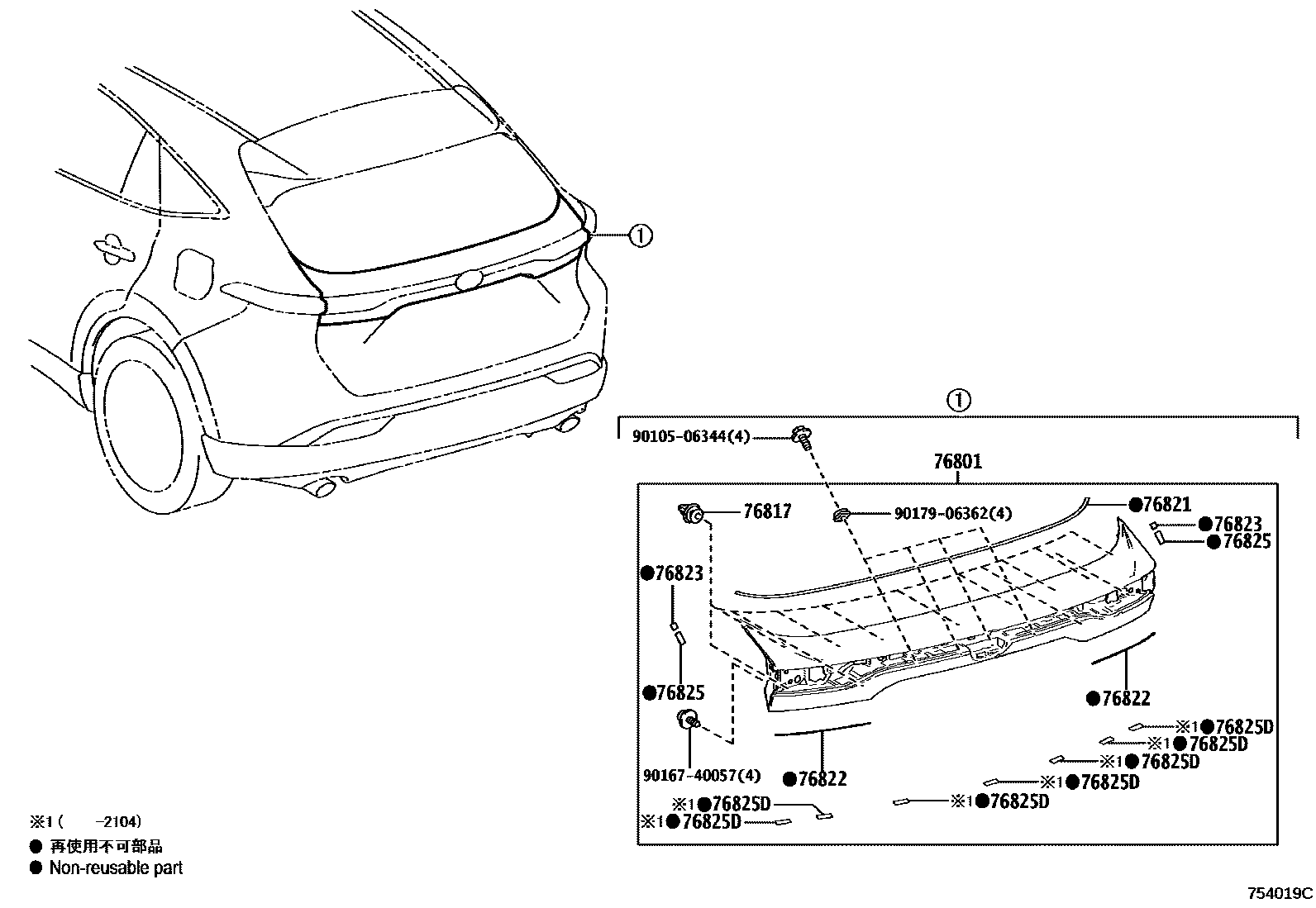

REAR MOULDING

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-48540-A0iAXUH80,MXUA80202009-202104

WHITE PEARL CS.,070

main76801-48540-B0iAXUH80,MXUA80202009-202104

SLATE GRAY ME.,1K4 ,1K9

main76801-48540-C0iAXUH80,MXUA80202009-202104

BLACK,202

main76801-48540-C1iAXUH80,MXUA80202009-202104

PRECIOUS BLACK,219

main76801-48540-D0iAXUH80,MXUA80202009-202104

RED MC.,3T3

main76801-48540-E0iAXUH80,MXUA80202009-202104

STEEL BLONDE ME.,4X1

main76801-48540-J0iAXUH80,MXUA80202009-202104

DK. BLUE MC.,8X8

main76801-48541-A0iAXUH80,MXUA80202104-202210

WHITE PEARL CS.,070

main76801-48541-A1iAXUH80;MXUA80..S202210

PLATINUM WHITE PEARL MC.,089

main76801-48541-B0iMXUA80..G202210-202309

SLATE GRAY ME.,1K9

main76801-48541-C0iAXUH80;MXUA80..S202210

BLACK,202

main76801-48541-C1iMXUA80..G202210-202309

PRECIOUS BLACK,219

main76801-48541-D0iMXUA80..G202210-202309

RED MC.,3T3

main76801-48541-E0iMXUA80..G202210-202309

STEEL BLONDE ME.,4X1

main76801-48541-J0iAXUH80,MXUA80202104-202210

DK. BLUE MC.,8X8

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×12iAXUH80,MXUA80202009-202210

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-48060iAXUH80,MXUA80202009-202210

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-48060×2iAXUH80,MXUA80202009-202210

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-48020×2iAXUH80,MXUA80202009-202210

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48110×2iAXUH80,MXUA80202009-202210

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-48110×7iAXUH80,MXUA80202009-202104

9010506344

main90105-06344

9016740057

main90167-40057

9017906362

main90179-06362

10 parts on this diagram · 1 diagram in section
