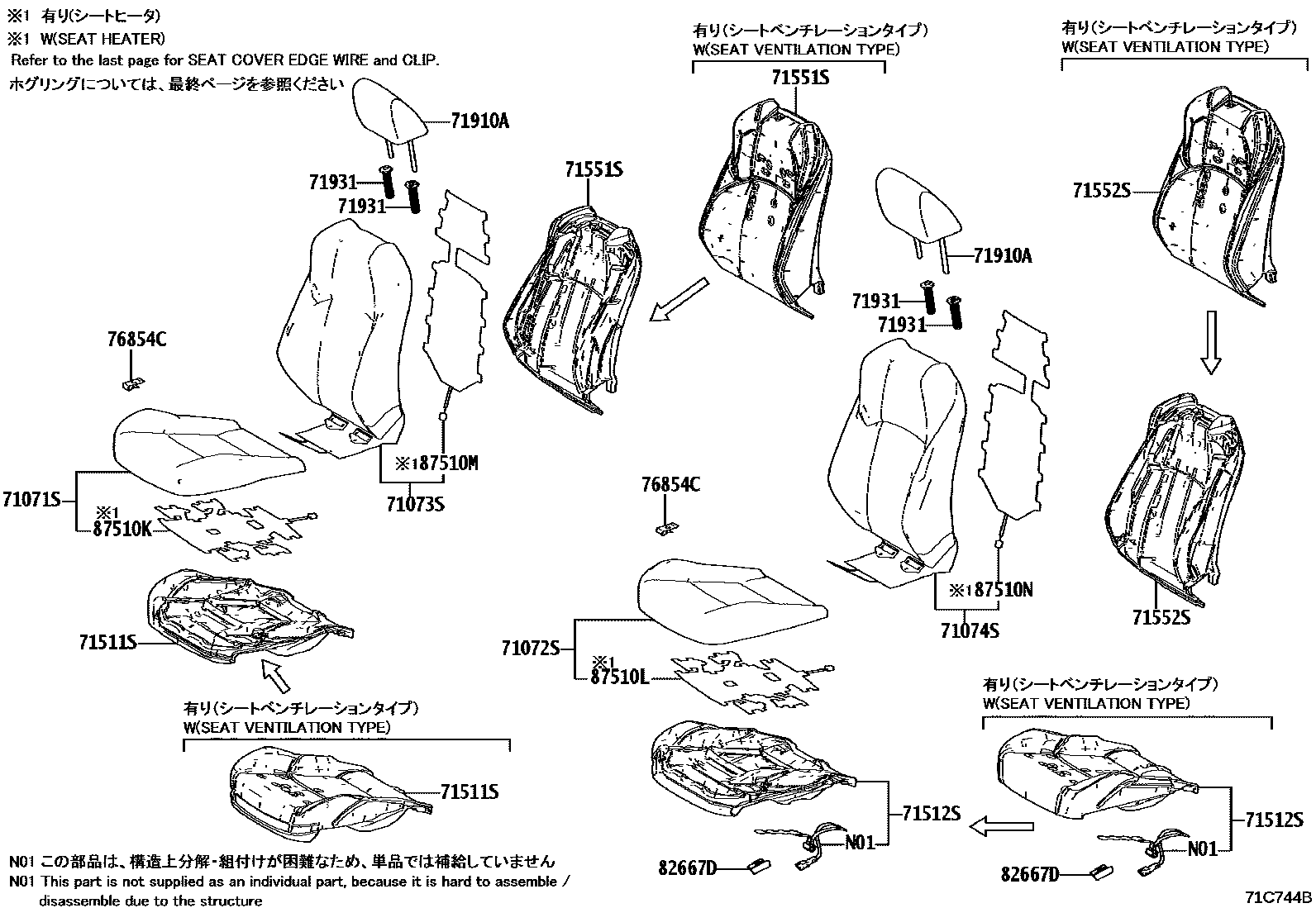

FRONT SEAT & SEAT TRACK

0001 1FRONT SEAT COVER & PAD 0002 1FRONT POWER SEAT (RH) 0003 1FRONT POWER SEAT (LH) 0004 1FRONT MANUAL SEAT (LH) 0005 1FRONT SEAT FITTING PARTS 0006 1CLIP

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-48D90-B1iMXUA80..G202009-202309

MEDIUM GRAY/BEIGE,TRIM1#

main71071-48D90-C2iAXUH80,MXUA80202009-202309

BLACK/GRAY,TRIM2#

main71071-48D90-C3iMXUA80..G202009-202309

BLACK/CAMEL,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-48C80-B1iMXUA80..G202009-202309

MEDIUM GRAY/BEIGE,TRIM1#

main71072-48C80-C2iMXUA80..G202009-202309

BLACK/GRAY,TRIM2#

main71072-48C80-C3iAXUH80;MXUA80..S202009-202309

BLACK/CAMEL,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-48G30-B1iAXUH80,MXUA80202009-202112

MEDIUM GRAY/BEIGE,TRIM1#

main71073-48G30-C2iAXUH80,MXUA80202009-202112

BLACK/GRAY,TRIM2#

main71073-48G30-C3iAXUH80,MXUA80202009-202112

BLACK/CAMEL,TRIM4#

main71073-48G31-B1iAXUH80,MXUA80202112-202210

MEDIUM GRAY/BEIGE,TRIM1#

sub71073-48G31¥51,000

main71073-48G31-B2iAXUH80;MXUA80..S202210-202407

MEDIUM GRAY/BEIGE,TRIM1#

sub71073-48G31¥51,000

main71073-48G31-B3iAXUH80;MXUA80..S202407

MEDIUM GRAY/BEIGE,TRIM1#

sub71073-48G31¥51,000

main71073-48G31-C2iAXUH80,MXUA80202112-202210

BLACK/GRAY,TRIM2#

sub71073-48G31¥51,000

main71073-48G31-C3iAXUH80,MXUA80202112-202210

BLACK/CAMEL,TRIM4#

sub71073-48G31¥51,000

main71073-48G31-C5iAXUH80;MXUA80..S202210-202407

BLACK/GRAY,TRIM2#

sub71073-48G31¥51,000

main71073-48G31-C6iAXUH80;MXUA80..S202210-202407

BLACK/CAMEL,TRIM4#

sub71073-48G31¥51,000

main71073-48G31-C8iAXUH80;MXUA80..S202407

BLACK/GRAY,TRIM2#

sub71073-48G31¥51,000

main71073-48G31-C9iAXUH80;MXUA80..S202407

BLACK/CAMEL,TRIM4#

sub71073-48G31¥51,000

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-48F90-B1iAXUH80,MXUA80202009-202112

MEDIUM GRAY/BEIGE,TRIM1#

main71074-48F90-C2iAXUH80,MXUA80202009-202112

BLACK/GRAY,TRIM2#

main71074-48F90-C3iAXUH80,MXUA80202009-202112

BLACK/CAMEL,TRIM4#

main71074-48F91-B1iAXUH80,MXUA80202112-202210

MEDIUM GRAY/BEIGE,TRIM1#

sub71074-48F91¥51,000

main71074-48F91-B2iAXUH80;MXUA80..S202210-202407

MEDIUM GRAY/BEIGE,TRIM1#

sub71074-48F91¥51,000

main71074-48F91-B3iAXUH80;MXUA80..S202407

MEDIUM GRAY/BEIGE,TRIM1#

sub71074-48F91¥51,000

main71074-48F91-C2iAXUH80,MXUA80202112-202210

BLACK/GRAY,TRIM2#

sub71074-48F91¥51,000

main71074-48F91-C3iAXUH80,MXUA80202112-202210

BLACK/CAMEL,TRIM4#

sub71074-48F91¥51,000

main71074-48F91-C5iAXUH80;MXUA80..S202210-202407

BLACK/GRAY,TRIM2#

sub71074-48F91¥51,000

main71074-48F91-C6iAXUH80;MXUA80..S202210-202407

BLACK/CAMEL,TRIM4#

sub71074-48F91¥51,000

main71074-48F91-C8iAXUH80;MXUA80..S202407

BLACK/GRAY,TRIM2#

sub71074-48F91¥51,000

main71074-48F91-C9iAXUH80;MXUA80..S202407

BLACK/CAMEL,TRIM4#

sub71074-48F91¥51,000

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-48460iAXUH80,MXUA80¥9,000202009-202309

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-48120iAXUH80,MXUA80¥13,200202009-202309

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-48270iAXUH80,MXUA80¥9,000202009-202304

main71551-48370iMXUA80..G¥9,000202305-202309

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-48260iAXUH80,MXUA80¥9,000202009-202304

main71552-48360iMXUA80..G¥9,000202305-202309

71910AHEADREST ASSY, FRONT SEAT

main71910-48E50-B1iMXUA80202009-202112

MEDIUM GRAY/BEIGE,TRIM1#

main71910-48E50-C0iMXUA80202009-202112

BLACK/GRAY,TRIM2#

main71910-48E50-C1iMXUA80202009-202112

BLACK/CAMEL,TRIM4#

main71910-48E51-B2iMXUA80202112-202309

MEDIUM GRAY/BEIGE,TRIM1#

main71910-48E51-C2iMXUA80..G202112-202309

BLACK/GRAY,TRIM2#

main71910-48E51-C3iMXUA80202112-202309

BLACK/CAMEL,TRIM4#

main71910-48F30-B1iAXUH80202010-202112

MEDIUM GRAY/BEIGE,TRIM1#

main71910-48F30-C0iAXUH80202010-202112

BLACK/GRAY,TRIM2#

main71910-48F30-C1iAXUH80202010-202112

BLACK/CAMEL,TRIM4#

main71910-48F31-B2iAXUH80202112-202210

MEDIUM GRAY/BEIGE,TRIM1#

main71910-48F31-C2iAXUH80202112-202210

BLACK/GRAY,TRIM2#

main71910-48F31-C3iAXUH80202112-202210

BLACK/CAMEL,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iAXUH80,MXUA80202009-202309

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-47030-C4iAXUH80,MXUA80202009-202309

W/O(LOCK),BLACK,TRIM1#,2#,4#

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iMXUA80..G¥40202210-202309

82667DHOLDER, CONNECTOR

main82666-47630iAXUH80,MXUA80¥170202009-202309

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

87510MHEATER ASSY, FRONT SEATBACK, RH

87510NHEATER ASSY, FRONT SEATBACK, LH

16 parts on this diagram · 6 diagrams in section
