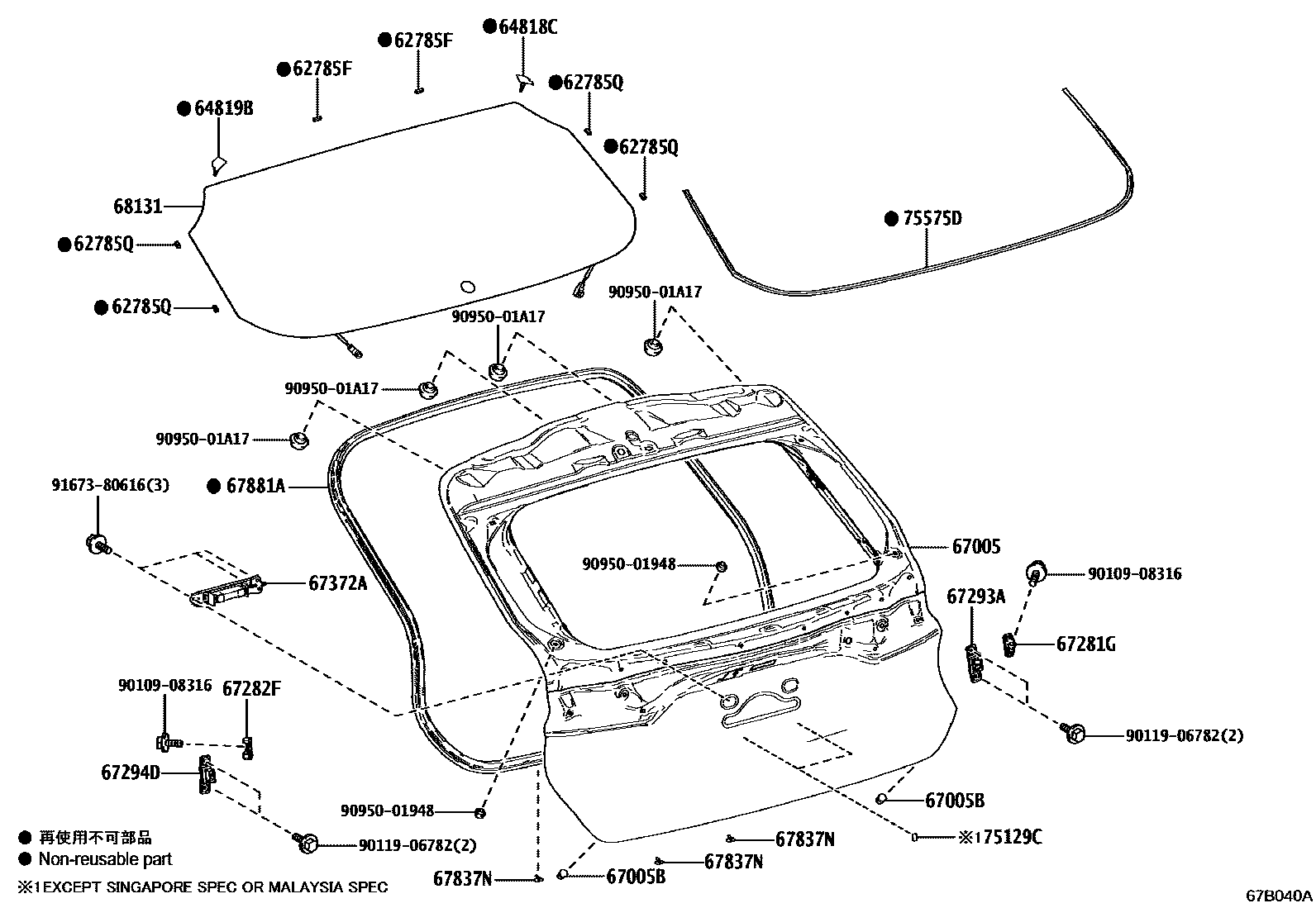

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030iMXUA80..G202009-202309

62785QSPACER, QUARTER WINDOW GLASS, NO.2

main62786-10010iAXUH80,MXUA80202009-202309

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48090iAXUH80,MXUA80202009-202309

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48080iAXUH80,MXUA80202009-202309

67005PANEL SUB-ASSY, BACK DOOR

main67005-48A60iAXUH80,MXUA80202009-202309

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iAXUH80,MXUA80202009-202111

main90541-09153iAXUH80,MXUA80202112-202309

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-48030iAXUH80,MXUA80202009-202309

67282FSTOPPER, BACK DOOR, LWR LH

main67282-48020iAXUH80,MXUA80202009-202309

67293ACUSHION, BACK DOOR STOPPER

main67293-48070iAXUH80,MXUA80202009-202309

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-48020iAXUH80,MXUA80202009-202309

67372AWEIGHT, BACK DOOR

main67372-48080iAXUH80,MXUA80202009-202309

67837NSEAL, BACK DOOR DUST PROOF

main67837-30120iAXUH80;MXUA80..S202410

main67837-52040iMXUA80..G202009-202409

67881AWEATHERSTRIP, BACK DOOR

main67881-48100iAXUH80,MXUA80202009-202309

68131GLASS, BACK DOOR

main68105-48920iAXUH80,MXUA80202009-202112

main68105-48924iAXUH80,MXUA80202112-202309

main68105-48925iAXUH80,MXUA80..S202210

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iAXUH80,MXUA80202009-202112

75575DMOULDING, BACK WINDOW, LOWER

main75575-48070iAXUH80,MXUA80202009-202309

9010908316

main90109-08316

9011906782

main90119-06782

9095001948

main90950-01948

9095001A17

main90950-01A17

9167380616

main91673-80616

21 parts on this diagram · 2 diagrams in section
