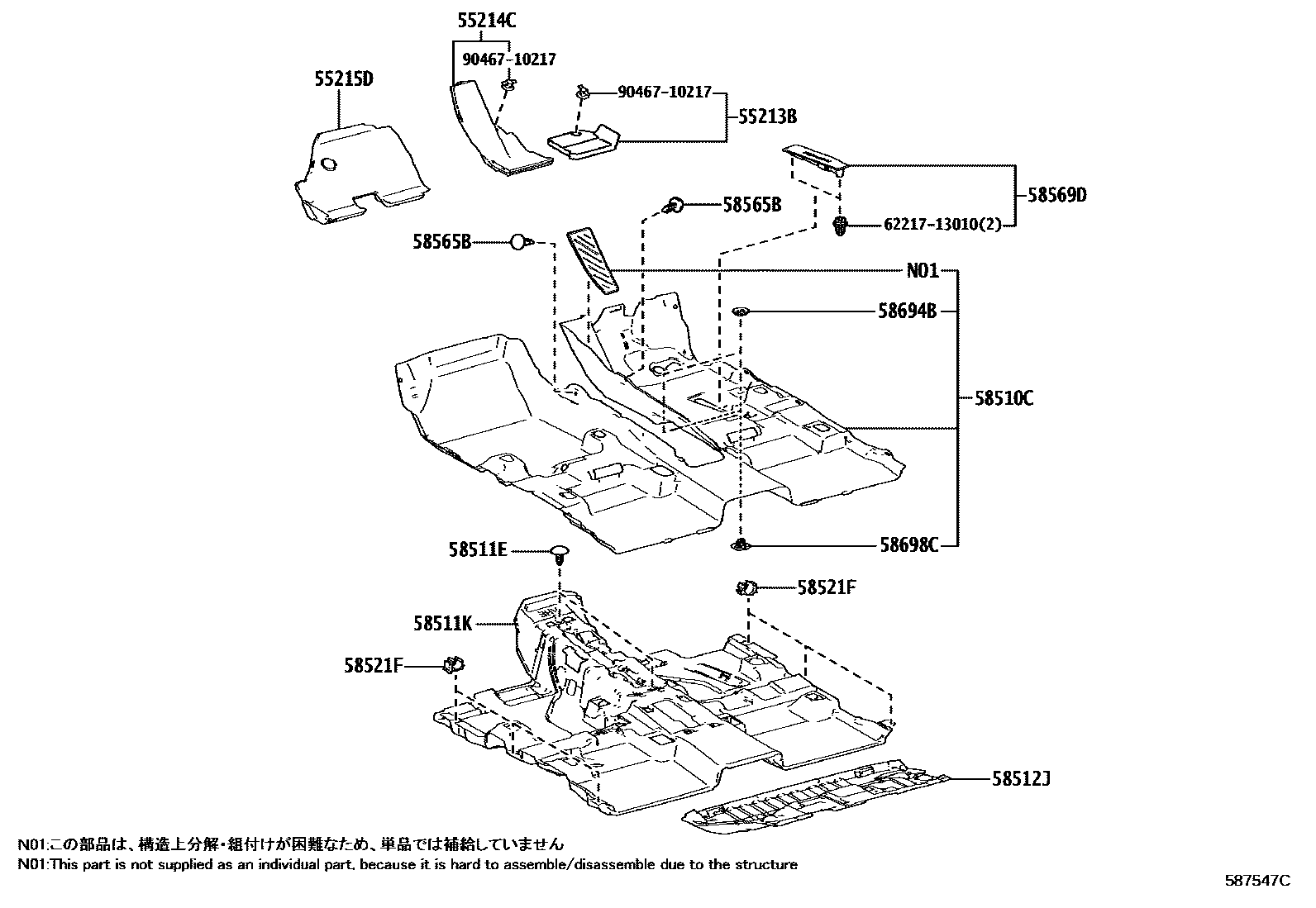

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
58511ECLIP(FOR FRONT FLOOR MAT)
58512JMAT, FLOOR, NO.2
58521FHOOK, FLOOR CARPET
58565BCLIP
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM1#,2#,4#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9046710217
main90467-10217
14 parts on this diagram · 2 diagrams in section
