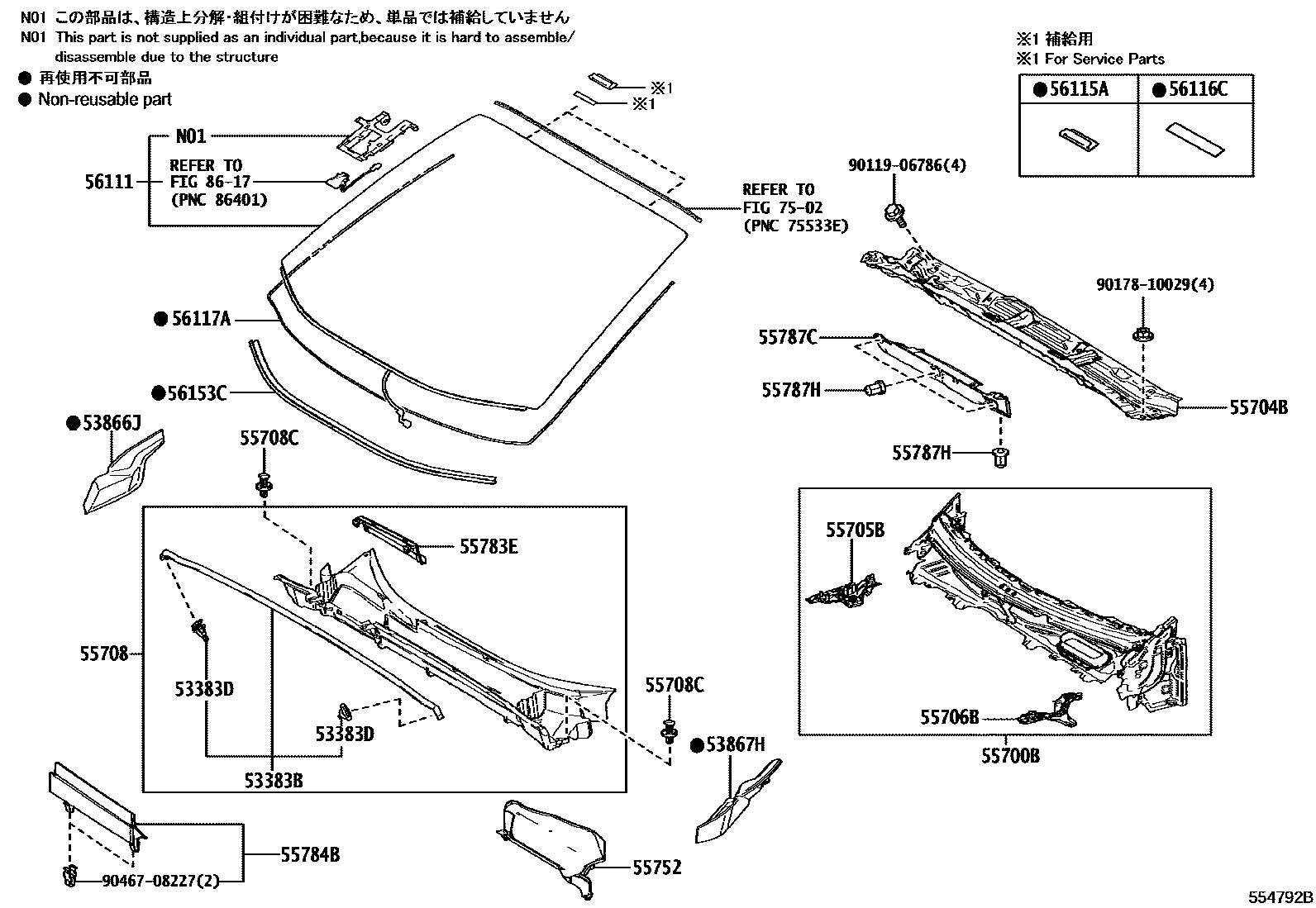

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48090iAXUH80,MXUA80202009-202309

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030iAXUH80,MXUA80202009-202309

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-48100iAXUH80,MXUA80202009-202309

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-48110iAXUH80,MXUA80202009-202309

55700BCOWL ASSY

main55700-42510iAXUH80,MXUA80202009-202309

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-42020iAXUH80,MXUA80202009-202309

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42080iAXUH80,MXUA80202009-202309

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42060iAXUH80,MXUA80202009-202309

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48190iAXUH80,MXUA80202009-202309

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAXUH80,MXUA80202009-202309

55752SHIELD, COWL VENTILATOR SPLASH

main55752-42030iAXUH80,MXUA80202009-202309

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-48090iAXUH80,MXUA80202009-202309

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-48080iAXUH80,MXUA80202009-202309

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-48080iAXUH80,MXUA80202009-202309

55787HCLIP, COWL TOP PANEL INSULATOR

main90467-06188iAXUH80,MXUA80202009-202309

56111GLASS, WINDSHIELD

main56101-48912iAXUH80,MXUA80202009-202309

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAXUH80,MXUA80202009-202309

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXUH80,MXUA80202009-202309

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAXUH80,MXUA80202009-202309

L=3500

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-42020iAXUH80,MXUA80202009-202309

7502

8617

9011906786

main90119-06786

9017810029

main90178-10029

9046708227

main90467-08227

25 parts on this diagram · 1 diagram in section
