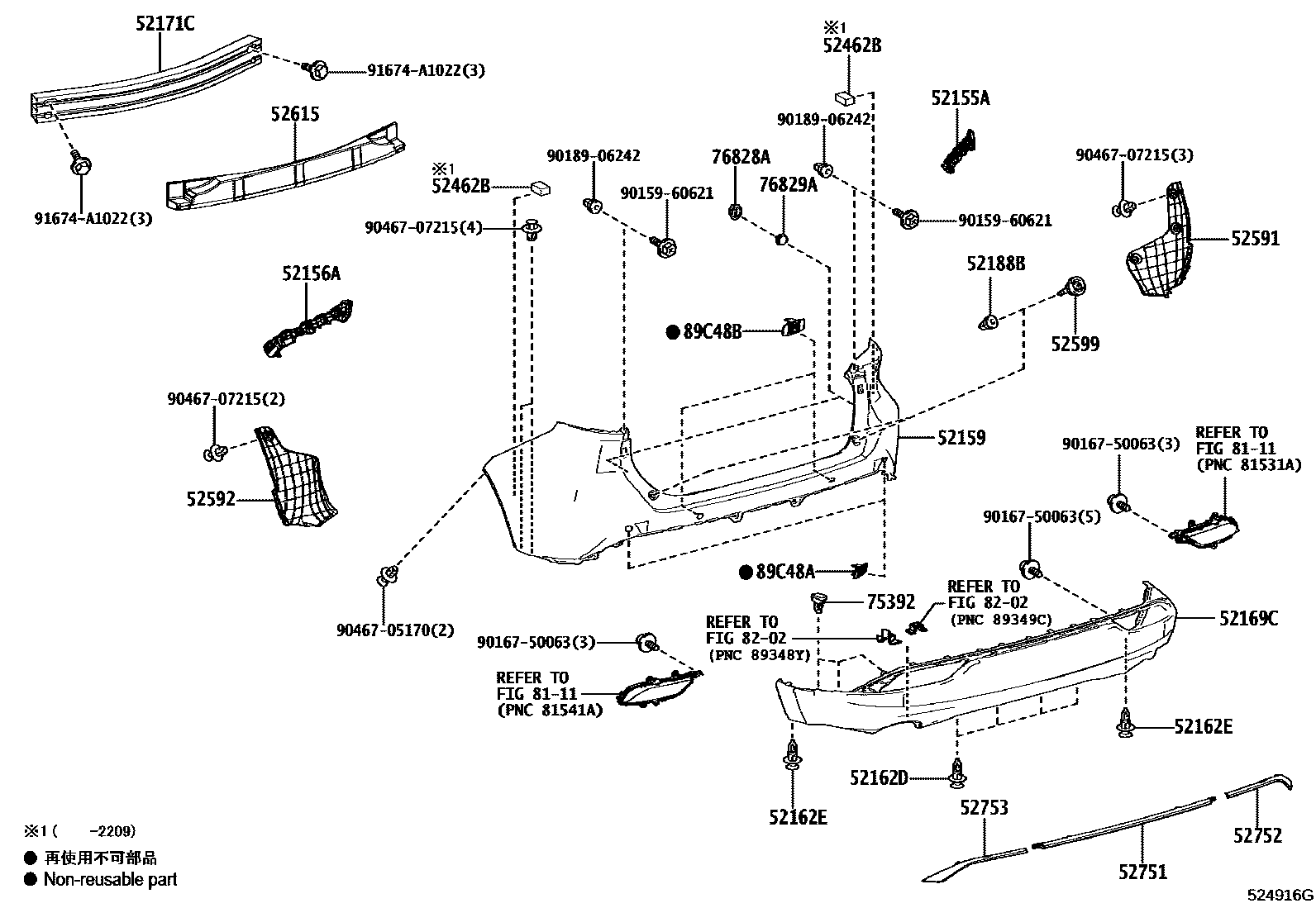

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
52162DPIECE, REAR BUMPER
sub52161-0K040
52162EPIECE, REAR BUMPER
sub52161-0K040
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52188BSPACER, REAR BUMPER MOUNTING
52462BPAD, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
52752MOULDING, REAR BUMPER SIDE, RH
52753MOULDING, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8111
8202
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE PEARL CS.,070,RH
PLATINUM WHITE PEARL MC.,089,RH
SLATE GRAY ME.,1K9,RH
BLACK,202,RH
PRECIOUS BLACK,219,RH
RED MC.,3T3,RH
STEEL BLONDE ME.,4X1,RH
DK. BLUE MC.,8X8,RH
WHITE PEARL CS.,070,LH
PLATINUM WHITE PEARL MC.,089,LH
SLATE GRAY ME.,1K9,LH
BLACK,202,LH
PRECIOUS BLACK,219,LH
RED MC.,3T3,LH
STEEL BLONDE ME.,4X1,LH
DK. BLUE MC.,8X8,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015960621
main90159-60621
9016750063
main90167-50063
9018906242
main90189-06242
9046705170
main90467-05170
9046707215
main90467-07215
91674A1022
main91674-A1022
29 parts on this diagram · 1 diagram in section
