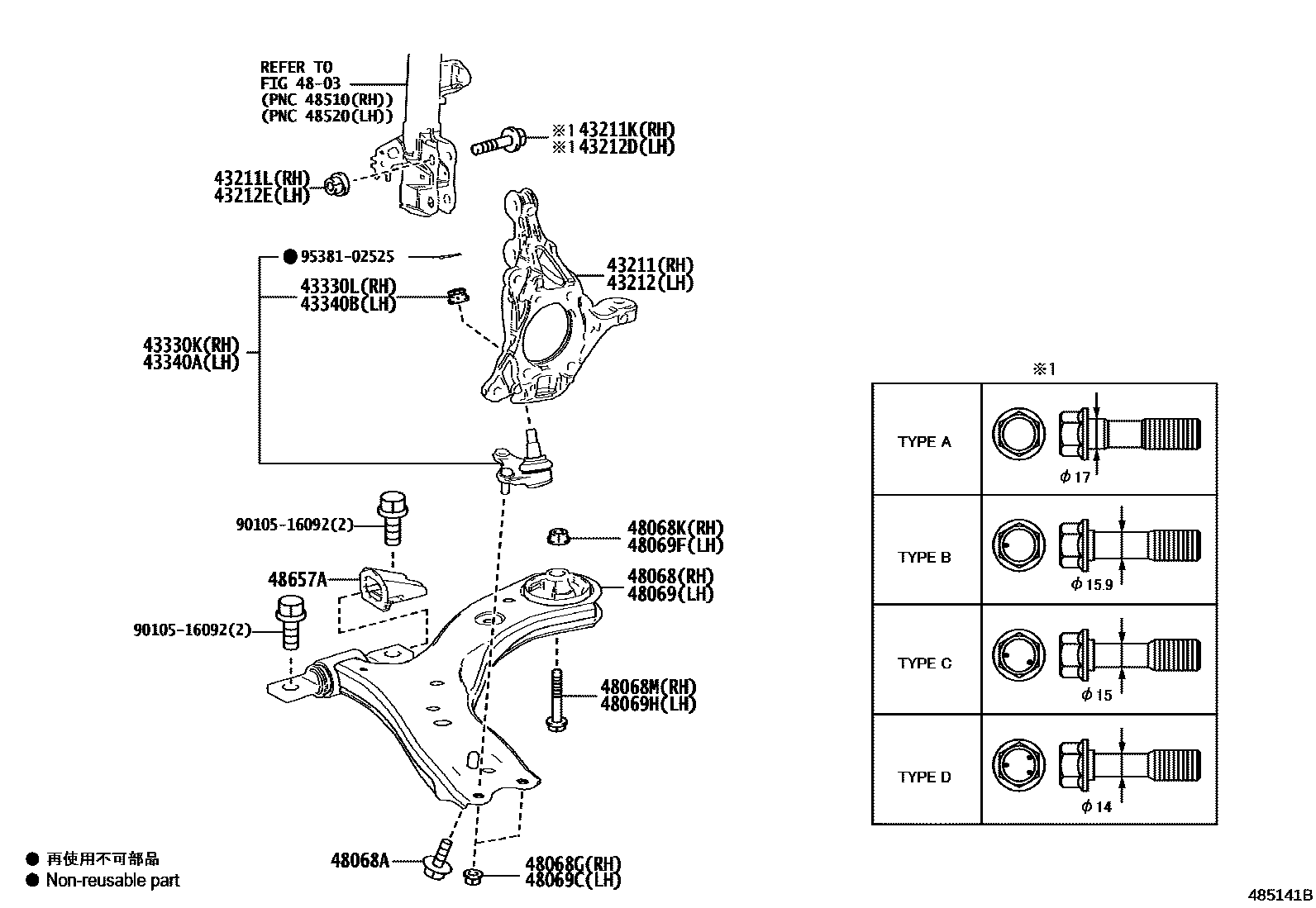

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-42010iAXUH80202010-202210

main43211-33130iMXUA80202009-202309

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iAXUH80,MXUA80202009-202309

OD=15.9,TYPE B

main90105-17014iAXUH80;MXUA80..S202009-202309

OD=15,TYPE C

main90105-17015iMXUA80..G202009-202309

OD=14,TYPE D

main90105-17021iAXUH80,MXUA80202009-202309

OD=17,TYPE A

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iAXUH80,MXUA80202009-202309

43212KNUCKLE, STEERING, LH

main43202-42010iAXUH80202010-202210

main43212-33130iMXUA80..G202009-202309

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iAXUH80;MXUA80..S202009-202309

OD=15.9,TYPE B

main90105-17014iAXUH80,MXUA80202009-202309

OD=15,TYPE C

main90105-17015iAXUH80;MXUA80..S202009-202309

OD=14,TYPE D

main90105-17021iAXUH80,MXUA80202009-202309

OD=17,TYPE A

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iAXUH80;MXUA80..S202009-202309

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49225iMXUA80202009-202309

main43330-49235iAXUH80202010-202210

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14015iMXUA80202009-202309

main90171-14017iAXUH80202010-202210

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49225iMXUA80..S202009-202309

main43330-49235iAXUH80202010-202210

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14015iMXUA80..S202009-202309

main90171-14017iAXUH80202010-202210

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-42070iAXUH80,MXUA80202009-202309

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12407iAXUH80,MXUA80202009-202309

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-12019iAXUH80,MXUA80202009-202309

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90179-14068iAXUH80,MXUA80202009-202309

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iAXUH80,MXUA80202009-202309

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-42070iAXUH80,MXUA80202009-202309

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-12019iAXUH80,MXUA80202009-202309

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90179-14068iAXUH80,MXUA80202009-202309

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iAXUH80,MXUA80202009-202309

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iAXUH80,MXUA80202009-202309

9010516092

main90105-16092

9538102525

main95381-02525

23 parts on this diagram · 1 diagram in section
