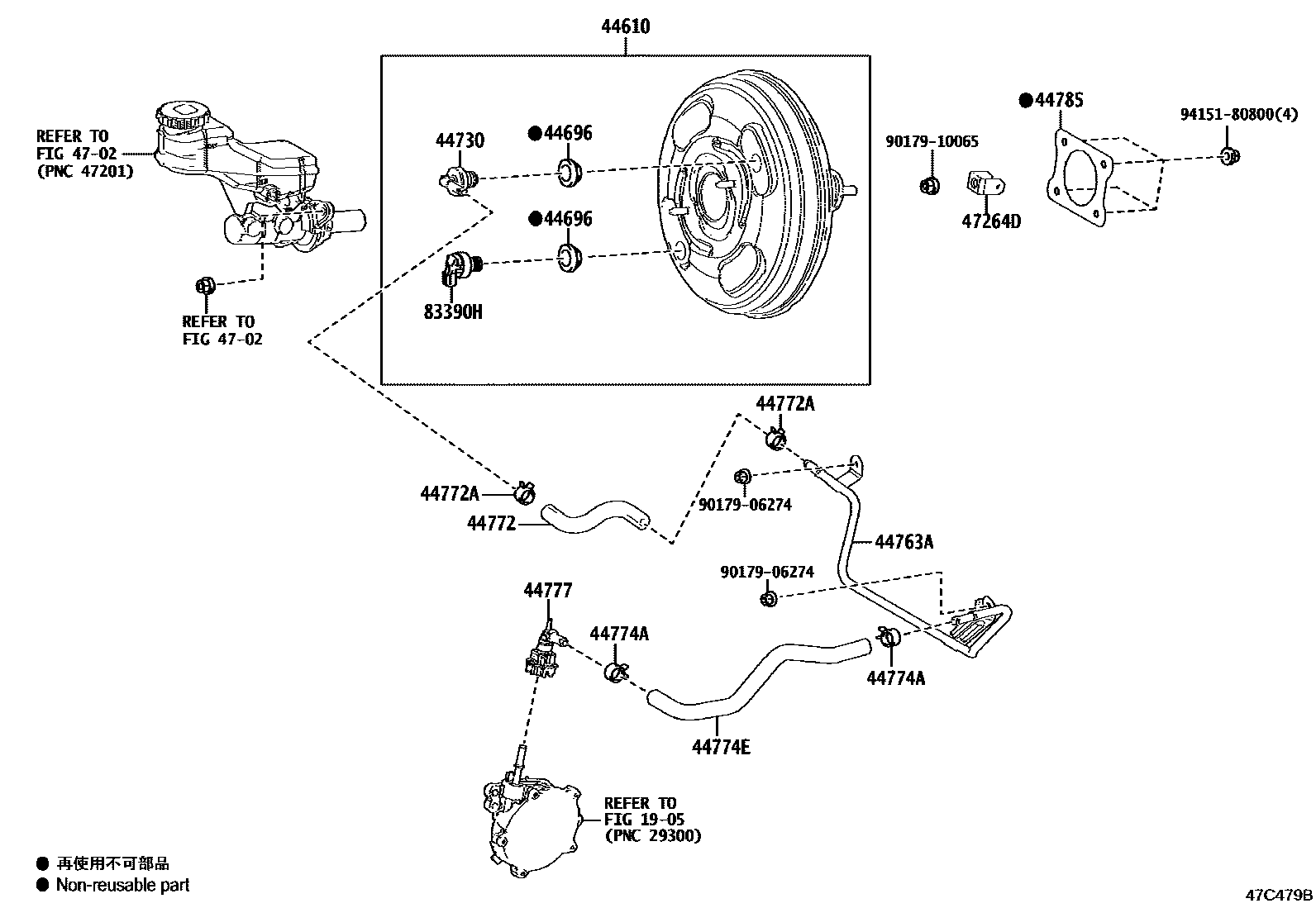

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-42460iMXUA80202009-202309

44696GROMMET, CHECK VALVE

main90480-24439iMXUA80202009-202309

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXUA80202009-202309

44763ATUBE, HOSE TO HOSE, NO.1

main44763-42090iMXUA80202009-202309

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42100iMXUA80202009-202309

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMXUA80202009-202309

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iMXUA80202009-202309

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-42120iMXUA80202009-202309

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iMXUA80202009-202309

44785GASKET, BRAKE BOOSTER

main44785-12040iMXUA80202009-202309

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iMXUA80202009-202309

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXUA80202009-202309

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
