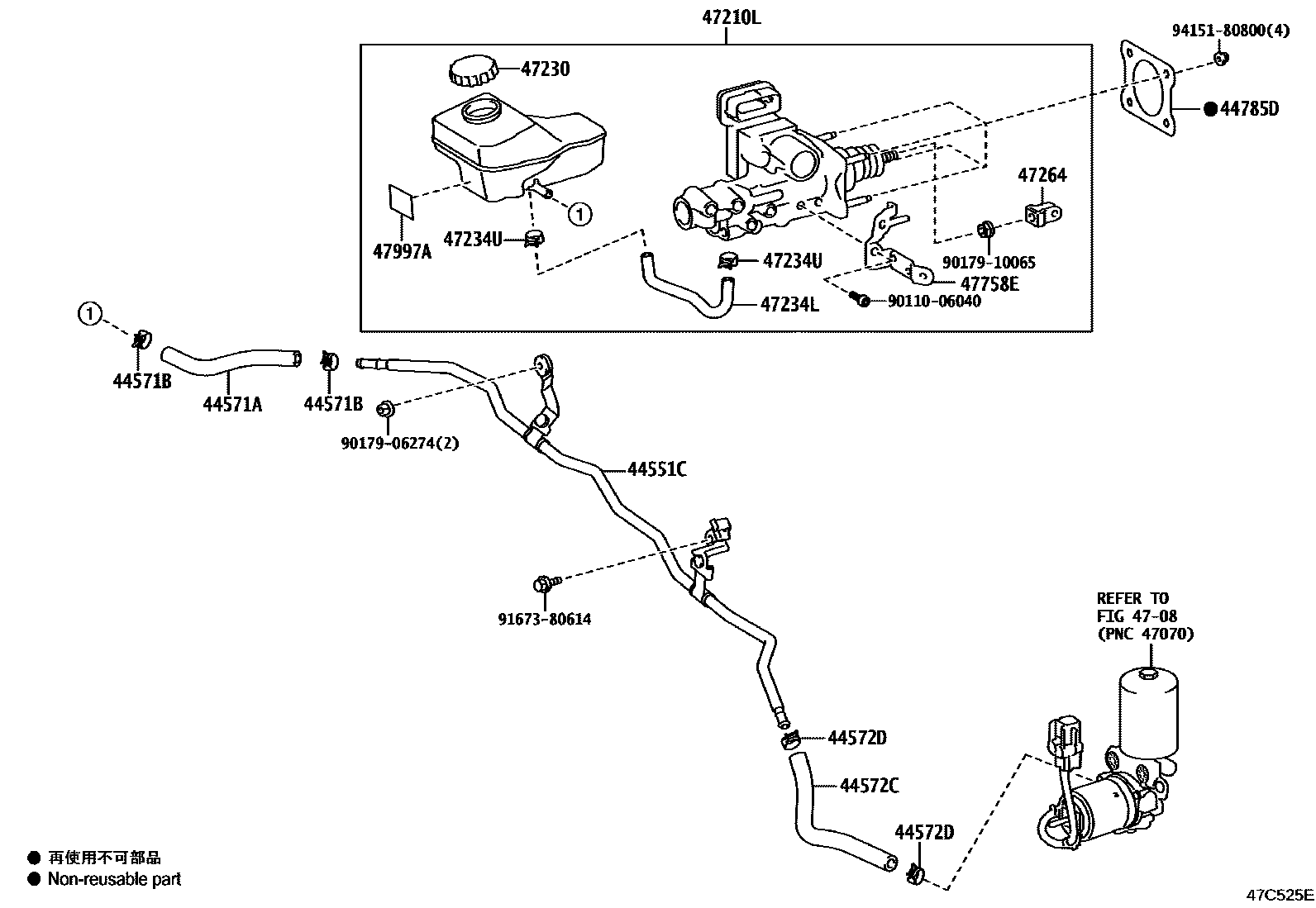

BRAKE MASTER CYLINDER

0001 1 0002 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-48100iAXUH80202010-202210

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-42050iAXUH80202010-202210

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iAXUH80202010-202210

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-42030iAXUH80202010-202210

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501iAXUH80202010-202210

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iAXUH80202010-202210

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-48110iAXUH80202010-202112

*614

main47050-48111iAXUH80202112-202210

*614

main47050-48112iAXUH80202210-202310

main47050-48430iAXUH80202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAXUH80,MXUA80202009-202309

47234LHOSE, RESERVOIR, NO.1

main47234-42050iAXUH80202010-202210

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iAXUH80202010-202210

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXUH80202010-202210

47758EBRACKET, WIRE CLAMP, NO.1

main47758-42020iAXUH80202010-202210

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXUH80202010-202210

9011006040

main90110-06040

9017906274

main90179-06274

9017910065

main90179-10065

9167380614

main91673-80614

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
