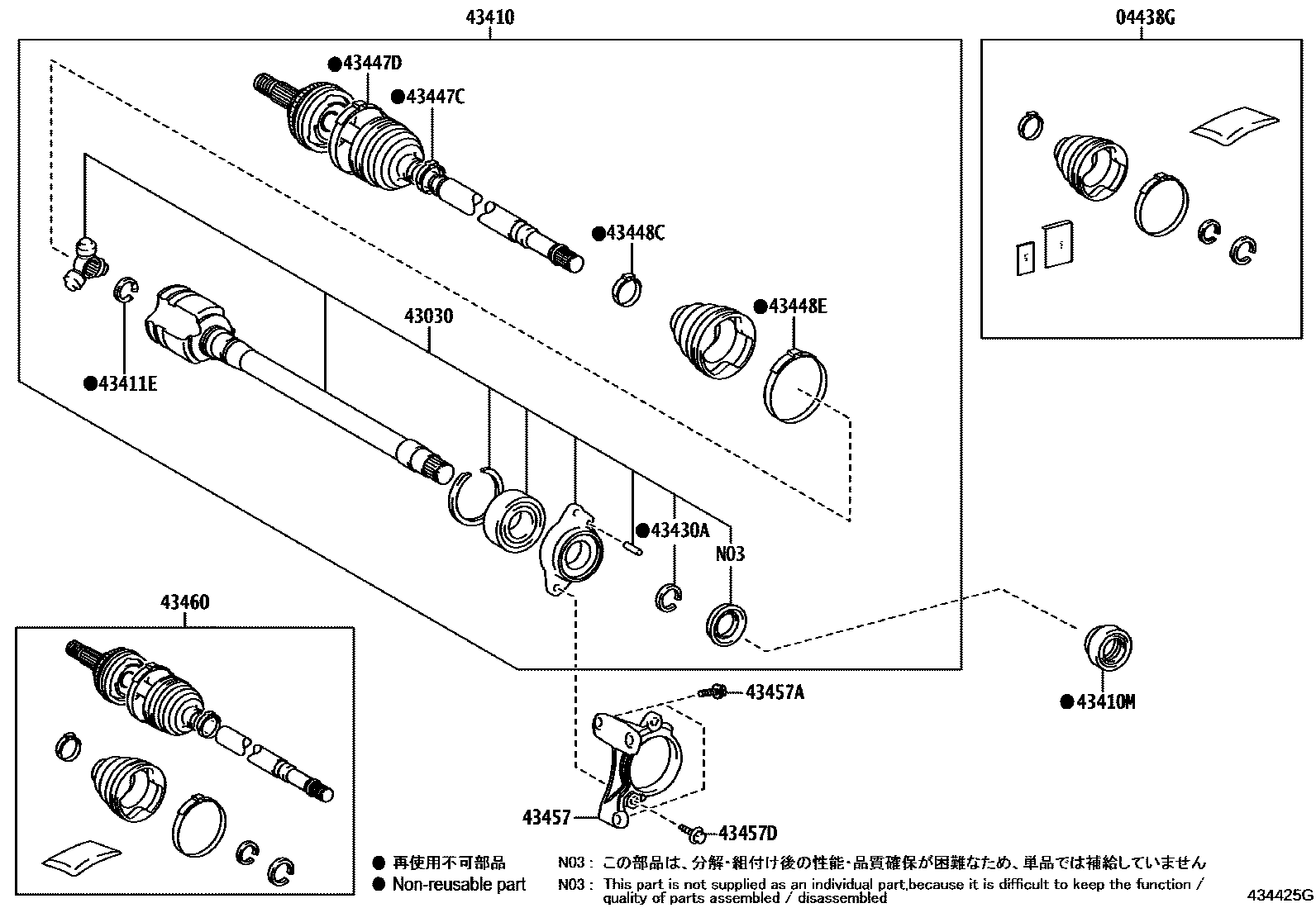

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-42080iMXUA80..G202009-202309

main04437-48170iAXUH80202010-202210

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33070iAXUH80,MXUA80202009-202309

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42331iMXUA80..G202009-202309

main43410-48160iAXUH80202010-202210

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40047iMXUA80..G202009-202309

main90311-40049iAXUH80202010-202210

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXUH80,MXUA80202009-202309

43430ARING, SHAFT SNAP

main90520-38015iMXUA80..G202009-202309

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXUH80;MXUA80..S202009-202309

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXUH80,MXUA80202009-202309

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28090iAXUH80;MXUA80..S202310

main42345-33120iAXUH80,MXUA80202009-202210

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iAXUH80,MXUA80202009-202309

43457BRACKET, DRIVE SHAFT BEARING

main43457-33060iAXUH80;MXUA80..S202009-202309

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10381iAXUH80,MXUA80202009-202309

*10-1.25PX32-30

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10361iAXUH80;MXUA80..S202009-202309

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80466iMXUA80202009-202309

main43470-80481iAXUH80202010-202210

14 parts on this diagram · 4 diagrams in section
