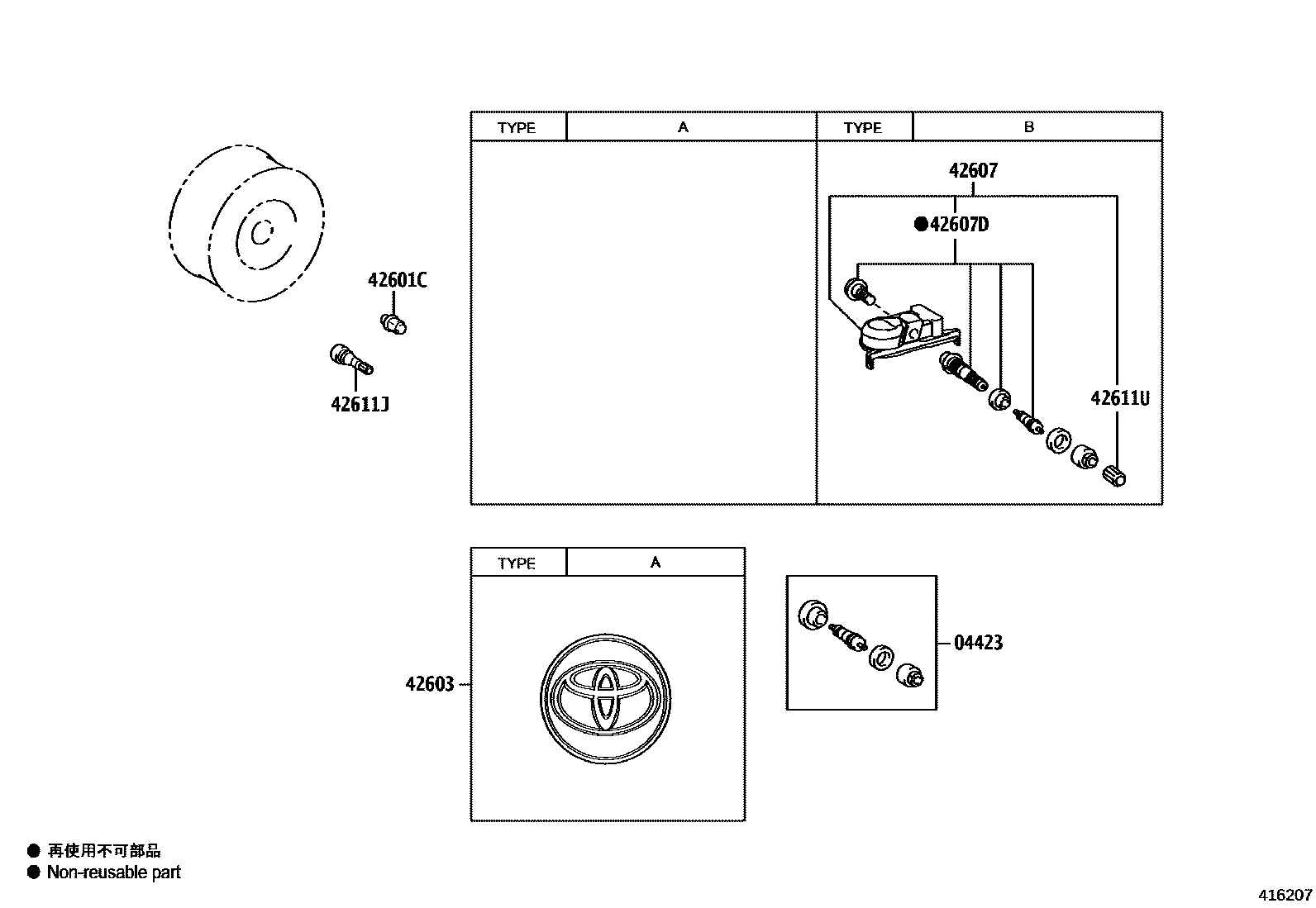

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iMXUA80..G202009-202309

42601WHEEL, DISC

main42611-48B50iAXUH80;MXUA80..S202009-202309

18X7J, #,TYPE D:REFER ILLUST.

main42611-48B70iMXUA80..G202009-202309

18X7J, #,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iAXUH80,MXUA80202009-202309

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iAXUH80,MXUA80202009-202309

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12020iAXUH80,MXUA80202009-202309

TYPE B:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iAXUH80,MXUA80202009-202309

TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXUH80,MXUA80202009-202309

42611UCAP, TIRE VALVE

main90942-05039iAXUH80,MXUA80202009-202309

8 parts on this diagram · 3 diagrams in section
