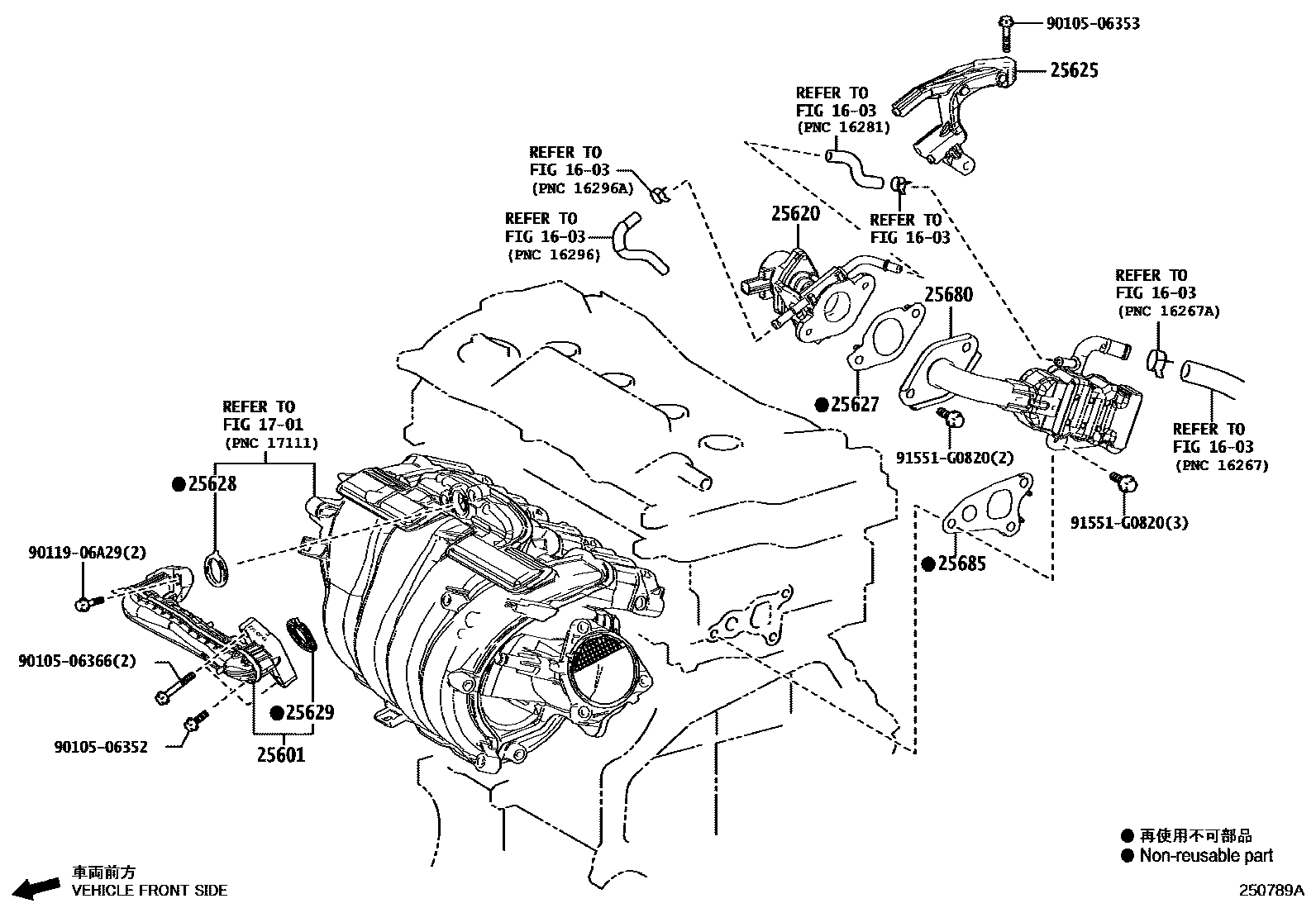

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFKS..MXUA80..G202009-202309

main25601-25011iA25AFXS..AXUH80202010-202210

main25601-25030iA25AFXS..AXUH80202210

25620VALVE ASSY, EGR

main25620-24050iA25AFXS..AXUH80202009-202309

main25620-25040iA25AFXS..AXUH80202010-202210

25625BRACKET, EGR VALVE

main25625-25030iA25AFXS..AXUH80202010-202210

25627GASKET, EGR VALVE

main25627-24010iM20AFKS..MXUA80..S202009-202309

main25627-25010iA25AFXS..AXUH80202010-202210

25628GASKET, EGR INLET

main25628-25010iA25AFXS..AXUH80202009-202309

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25AFXS..AXUH80202009-202309

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MXUA80..G202009-202309

main25680-25030iA25AFXS..AXUH80202010-202210

main25680-25060iA25AFXS..AXUH80202210

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25AFXS..AXUH80202009-202309

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

9011906A29

main90119-06A29

91551G0820

main91551-G0820

15 parts on this diagram · 3 diagrams in section
