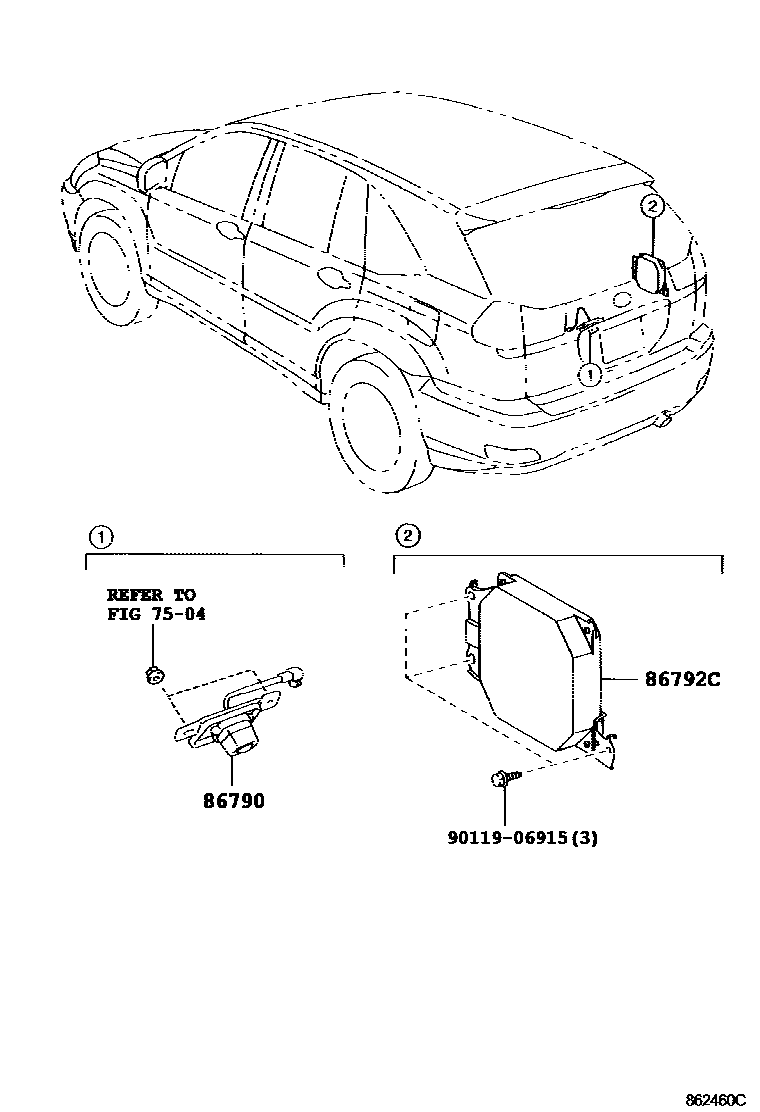

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

7504

86790CAMERA ASSY, TELEVISION

main86790-48020iMHU38200503-200608

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

main86790-48060iMHU38200608-200812

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86790-48061

86792CCOMPUTER, PARKING ASSIST

main86792-48091iMHU38200503-200608

EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)

main86792-48160iMHU38200608-200812

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

main86792-48180iMHU38..LHD200608-200612

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86792-48181

main86792-48180iMHU38..RHD200608-200612

AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86792-48181

main86792-48180iMHU38..RHD200608-200612

CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86792-48181

main86792-48181iMHU38..LHD200701-200707

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86792-48182

main86792-48181iMHU38..RHD200701-200707

AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86792-48182

main86792-48181iMHU38..RHD200701-200707

CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

sub86792-48182

main86792-48182iMHU38..LHD200708-200812

NEW ZEALAND SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

main86792-48182iMHU38..LHD200708-200812

TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

main86792-48182iMHU38..LHD200708-200812

AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

main86792-48182iMHU38..LHD200708-200812

CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

9011906915

main90119-06915

4 parts on this diagram · 2 diagrams in section
