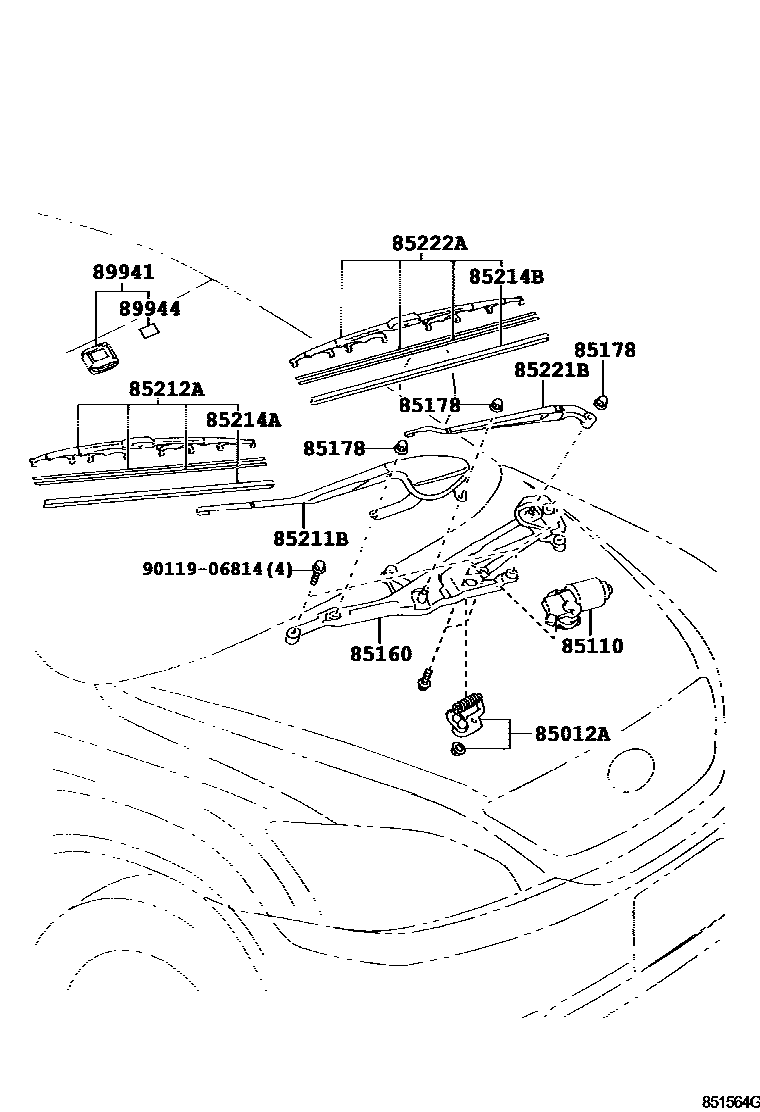

WINDSHIELD WIPER

0001 1LHD 0002 1RHD

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iMHU38..RHD200503-200812

main85012-58010iMHU38..LHD200503-200812

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48120iMHU38..RHD200503-200708

main85110-48130iMHU38..LHD200503-200708

sub85110-48160

main85110-48150iMHU38..RHD200708-200812

main85110-48160iMHU38..LHD200708-200812

85160LINK ASSY, WINDSHIELD WIPER

main85150-48120iMHU38..RHD200503-200708

sub85150-48140

main85150-48130iMHU38..LHD200503-200708

sub85150-48150

main85150-48140iMHU38..RHD200708-200812

main85150-48150iMHU38..LHD200708-200812

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iMHU38200503-200812

85211BARM, FRONT WIPER, RH

main85211-48090iMHU38..RHD200503-200812

main85211-48100iMHU38..LHD200503-200812

85212ABLADE, FR WIPER, RH

main85212-48100iMHU38..RHD200503-200812

main85212-48110iMHU38..LHD200503-200812

85214ARUBBER, WIPER, RH

main85214-44140iMHU38..RHD200503-200812

main85214-48010iMHU38..LHD200503-200812

85214BRUBBER, WIPER, LH

main85214-44140iMHU38..LHD200503-200812

main85214-48010iMHU38..RHD200503-200812

85221BARM, FRONT WIPER, LH

main85221-48090iMHU38..RHD200503-200812

main85221-48100iMHU38..LHD200503-200812

85222ABLADE, FR WIPER, LH

main85222-48090iMHU38..RHD200503-200812

main85222-48100iMHU38..LHD200503-200812

89941SENSOR, RAIN

main89941-48031

main89941-48033

main89941-48040

main89941-48060

89944TAPE, RAIN SENSOR

main89944-50011

9011906814

main90119-06814

13 parts on this diagram · 2 diagrams in section
