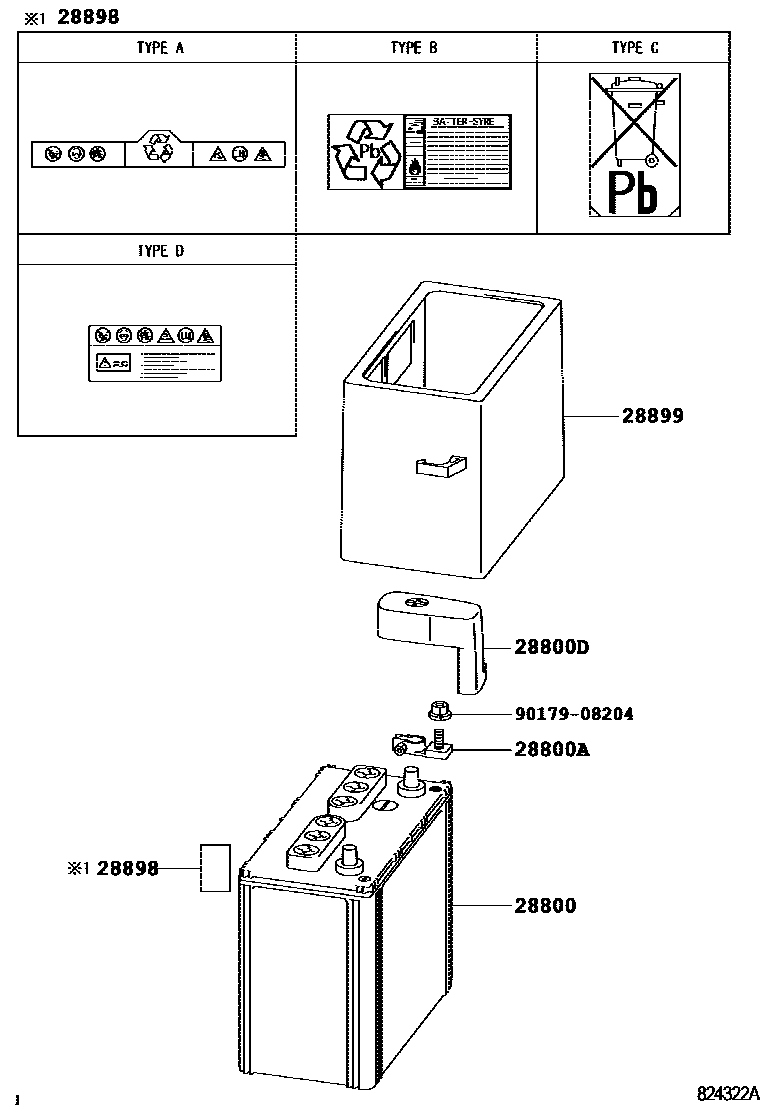

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY

28800BATTERY

main28800-20060i3MZFE..MHU38200503-200812

55B24L(S)

sub28800-20061

28800ATERMINAL, BATTERY POSITIVE

main90982-05058i3MZFE..MHU38200503-200812

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20440i3MZFE..MHU38200503-200812

28898PLATE, BATTERY

main28898-20030i3MZFE..MHU38200503-200812

TYPE A:REFER ILLUST.

main28898-20030i3MZFE..MHU38200503-200812

AUSTRALIA SPEC,TYPE A:REFER ILLUST.

main28898-20030i3MZFE..MHU38200503-200812

NEW ZEALAND SPEC,TYPE A:REFER ILLUST.

main28898-46020i3MZFE..MHU38200503-200812

TYPE C:REFER ILLUST.

28899INSULATOR, BATTERY

main28899-20010i3MZFE..MHU38200503-200504

sub28899-20011

main28899-20011i3MZFE..MHU38200504-200812

9017908204

main90179-08204

6 parts on this diagram · 3 diagrams in section
