FRONT DOOR LOCK & HANDLE

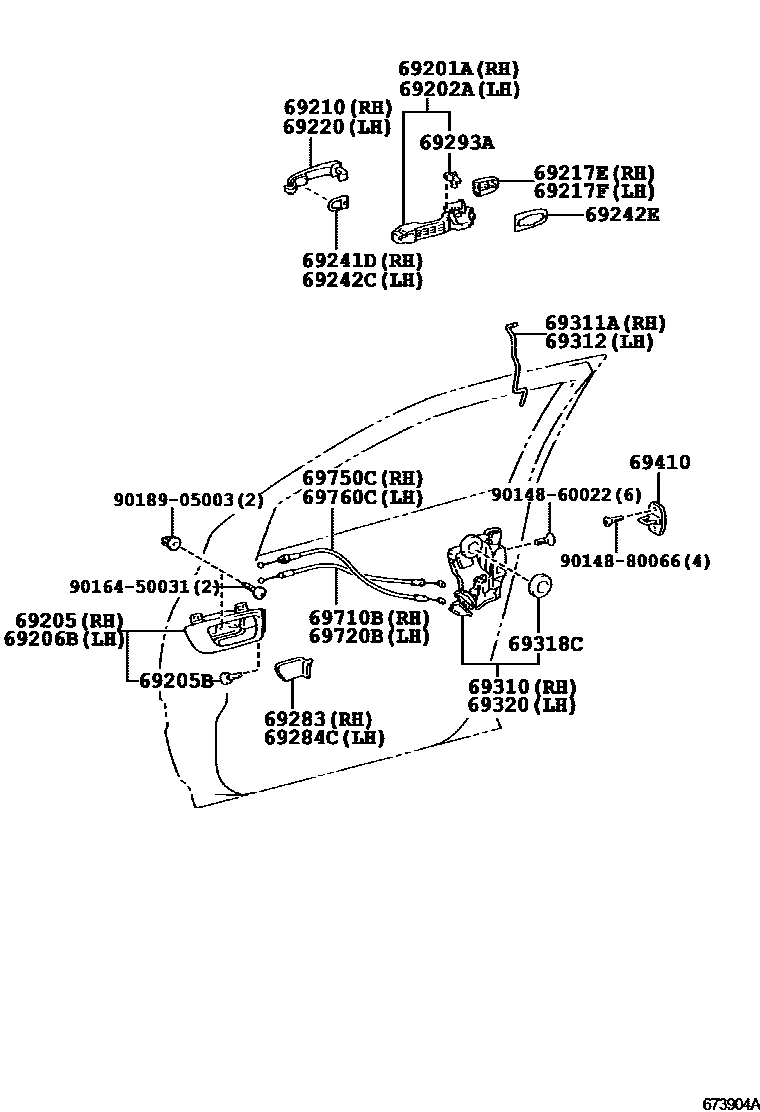

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-28010i200503-200812
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-28010i200503-200812
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-48040-A0i200503-200812
IVORY,TRIM0#
main69205-48040-A0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0#
main69205-48040-B0i200503-200812
LT.GRAY,TRIM1#
main69205-48040-B0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1#
main69205-48040-C0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2#
main69205-48040-C0i200503-200812
BLACK,TRIM2#
main69205-48050-A0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0#
main69205-48050-A0i200503-200812
LUXURY PACKAGE&ILLUMINATED ENTRY SYSTEM-W(INSIDE HANDLE & SCUFF & LEG),IVORY,TRIM0#
main69205-48050-B0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1#
main69205-48050-B0i200503-200812
LUXURY PACKAGE&ILLUMINATED ENTRY SYSTEM-W(INSIDE HANDLE & SCUFF & LEG),LT.GRAY,TRIM1#
main69205-48050-C0i200503-200812
LUXURY PACKAGE&ILLUMINATED ENTRY SYSTEM-W(INSIDE HANDLE & SCUFF & LEG),BLACK,TRIM2#
main69205-48050-C0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i200503-200812
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-48050-A0i200503-200812
IVORY,TRIM0#
main69206-48050-A0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0#
main69206-48050-B0i200503-200812
LT.GRAY,TRIM1#
main69206-48050-B0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1#
main69206-48050-C0i200503-200812
BLACK,TRIM2#
main69206-48050-C0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2#
main69206-48060-A0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,IVORY,TRIM0#
main69206-48060-A0i200503-200812
LUXURY PACKAGE&ILLUMINATED ENTRY SYSTEM-W(INSIDE HANDLE & SCUFF & LEG),IVORY,TRIM0#
main69206-48060-B0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,LT.GRAY,TRIM1#
main69206-48060-B0i200503-200812
LUXURY PACKAGE&ILLUMINATED ENTRY SYSTEM-W(INSIDE HANDLE & SCUFF & LEG),LT.GRAY,TRIM1#
main69206-48060-C0i200503-200812
LUXURY PACKAGE&STEERING WHEEL-WOOD W/AUDIO SW,BLACK,TRIM2#
main69206-48060-C0i200503-200812
LUXURY PACKAGE&ILLUMINATED ENTRY SYSTEM-W(INSIDE HANDLE & SCUFF & LEG),BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-48060i200806-200812
PLATED,MOSCOW SPEC
sub69210-48061
main69210-58010i200708-200812
PLATED
main69211-28070-A4i200503-200708
WHITE PEARL CS.,062
sub69211-28070
main69211-28070-B2i200503-200708
SILVER ME.,1C0
sub69211-28070
main69211-28070-B7i200503-200708
DK.GRAY MC.,1E0
sub69211-28070
main69211-28070-C1i200503-200708
BLACK,202
sub69211-28070
main69211-28070-E1i200503-200708
BEIGE ME.,4R4
sub69211-28070
main69211-28070-G2i200503-200708
LT.OLIVE M.M.,6T1
sub69211-28070
main69211-28070-J7i200503-200708
DK.BLUE M.M.,8R7
sub69211-28070
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-28010-A4i200503-200708
WHITE PEARL CS.,062
sub69217-28010
main69217-28010-B2i200503-200708
SILVER ME.,1C0
sub69217-28010
main69217-28010-B7i200503-200708
DK.GRAY MC.,1E0
sub69217-28010
main69217-28010-C1i200503-200708
BLACK,202
sub69217-28010
main69217-28010-E1i200503-200708
BEIGE ME.,4R4
sub69217-28010
main69217-28010-G2i200503-200708
LT.OLIVE M.M.,6T1
sub69217-28010
main69217-28010-J7i200503-200708
DK.BLUE M.M.,8R7
sub69217-28010
main69217-30040i200708-200812
*CR
main69217-48030i200806-200812
*CR,MOSCOW SPEC
sub69217-48031
main69217-58010i200708-200812
*CR
main69217-60020-A3i200503-200708
WHITE PEARL CS.,062
sub69217-60020
main69217-60020-B5i200503-200708
SILVER ME.,1C0
sub69217-60020
main69217-60020-B6i200503-200708
DK.GRAY MC.,1E0
sub69217-60020
main69217-60020-C0i200503-200708
BLACK,202
sub69217-60020
main69217-60020-E1i200503-200708
BEIGE ME.,4R4
sub69217-60020
main69217-60020-G2i200503-200708
LT.OLIVE M.M.,6T1
sub69217-60020
main69217-60020-J6i200503-200708
DK.BLUE M.M.,8R7
sub69217-60020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-28010-A4i200503-200708
WHITE PEARL CS.,062
sub69217-28010
main69217-28010-B2i200503-200708
SILVER ME.,1C0
sub69217-28010
main69217-28010-B7i200503-200708
DK.GRAY MC.,1E0
sub69217-28010
main69217-28010-C1i200503-200708
BLACK,202
sub69217-28010
main69217-28010-E1i200503-200708
BEIGE ME.,4R4
sub69217-28010
main69217-28010-G2i200503-200708
LT.OLIVE M.M.,6T1
sub69217-28010
main69217-28010-J7i200503-200708
DK.BLUE M.M.,8R7
sub69217-28010
main69217-30040i200708-200812
*CR
main69217-48040i200806-200812
*CR,MOSCOW SPEC
sub69217-48041
main69217-58010i200708-200812
*CR
main69217-60020-A3i200503-200708
WHITE PEARL CS.,062
sub69217-60020
main69217-60020-B5i200503-200708
SILVER ME.,1C0
sub69217-60020
main69217-60020-B6i200503-200708
DK.GRAY MC.,1E0
sub69217-60020
main69217-60020-C0i200503-200708
BLACK,202
sub69217-60020
main69217-60020-E1i200503-200708
BEIGE ME.,4R4
sub69217-60020
main69217-60020-G2i200503-200708
LT.OLIVE M.M.,6T1
sub69217-60020
main69217-60020-J6i200503-200708
DK.BLUE M.M.,8R7
sub69217-60020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-48060i200806-200812
PLATED,MOSCOW SPEC
sub69210-48061
main69210-58010i200708-200812
PLATED
main69211-28070-A4i200503-200708
WHITE PEARL CS.,062
sub69211-28070
main69211-28070-B2i200503-200708
SILVER ME.,1C0
sub69211-28070
main69211-28070-B7i200503-200708
DK.GRAY MC.,1E0
sub69211-28070
main69211-28070-C1i200503-200708
BLACK,202
sub69211-28070
main69211-28070-E1i200503-200708
BEIGE ME.,4R4
sub69211-28070
main69211-28070-G2i200503-200708
LT.OLIVE M.M.,6T1
sub69211-28070
main69211-28070-J7i200503-200708
DK.BLUE M.M.,8R7
sub69211-28070
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-28060i200503-200812
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-28060i200503-200812
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-60030i200503-200812
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-33020-A0i200503-200812
IVORY,TRIM0#
sub69283-33020
main69283-33020-B2i200503-200812
LT.GRAY,TRIM1#
sub69283-33020
main69283-33020-C0i200503-200812
BLACK,TRIM2#
sub69283-33020
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-33020-A0i200503-200812
IVORY,TRIM0#
sub69284-33020
main69284-33020-B2i200503-200812
LT.GRAY,TRIM1#
sub69284-33020
main69284-33020-C0i200503-200812
BLACK,TRIM2#
sub69284-33020
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i200503-200812
RH
main69293-12040i200503-200812
LH
69310LOCK ASSY, FRONT DOOR, RH
main69030-33241i200608-200812
AUSTRALIA SPEC
main69030-33241i200608-200812
NEW ZEALAND SPEC
main69030-33251i200503-200812
main69030-33261i200608-200812
TAIWAN SPEC
main69030-48070i200503-200609
sub69030-48071
main69030-48071i200610-200812
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-48040i200503-200812
69312ROD, FRONT DOOR LOCK OPEN, LH
main69311-48040i200503-200812
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200503-200812
69320LOCK ASSY, FRONT DOOR, LH
main69040-13111i200503-200812
main69040-33221i200608-200812
TAIWAN SPEC
main69040-33271i200608-200812
AUSTRALIA SPEC
main69040-33271i200608-200812
NEW ZEALAND SPEC
main69040-48070i200503-200609
sub69040-48071
main69040-48071i200610-200812
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i200503-200812
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-48040i200503-200812
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-48040i200503-200812
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-48050i200503-200812
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-48050i200503-200812
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003

29 parts on this diagram · 1 diagram in section
