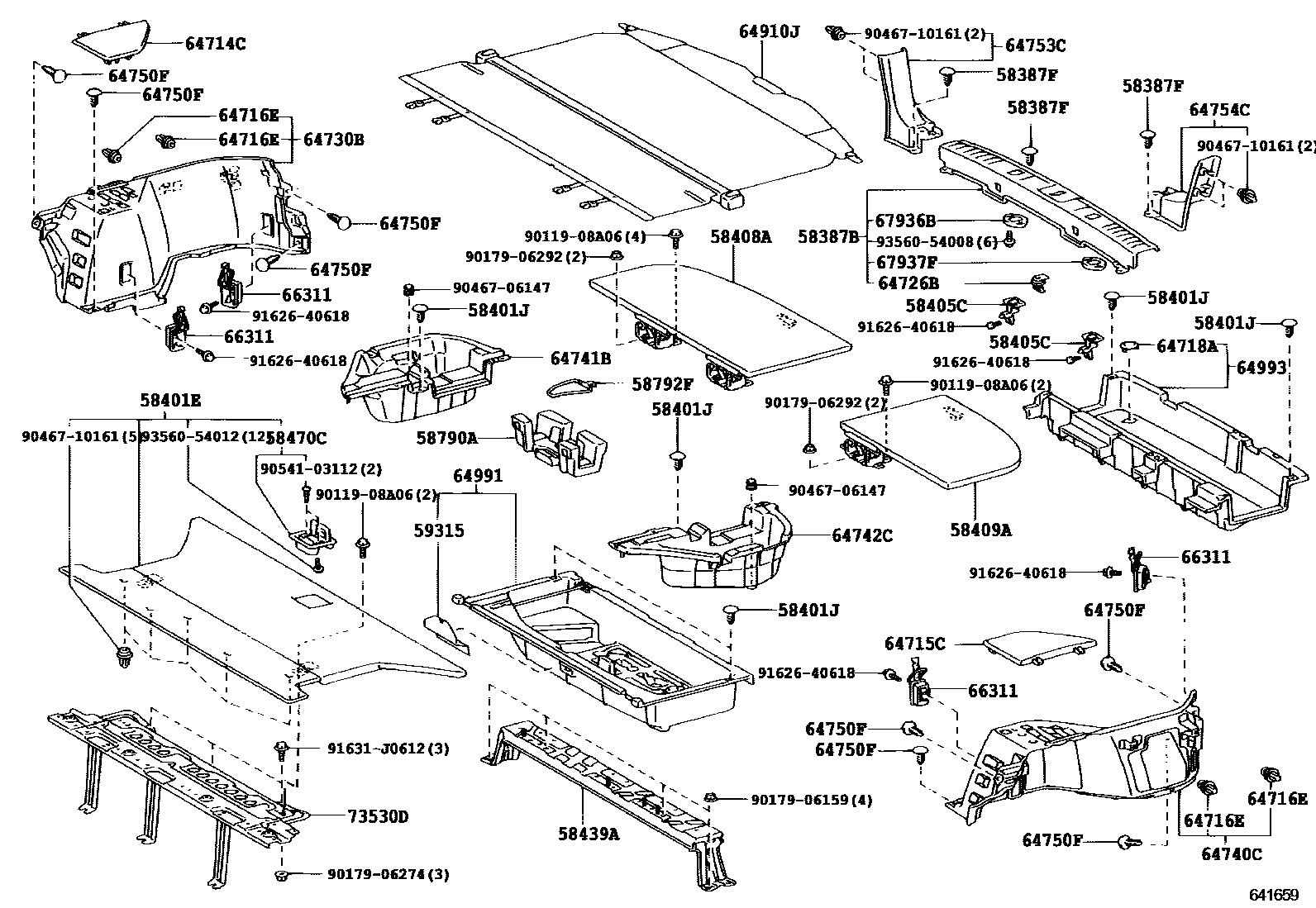

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58387FCLIP, REAR FLOOR FINISH PLATE
58401EBOARD SUB-ASSY, DECK
58401JCLIP(FOR DECK BOAD)
58405CLOCK SUB-ASSY, DECK BOARD
58408ABOARD SUB-ASSY, DECK, NO.2
58409ABOARD SUB-ASSY, DECK, NO.3
58439ACHECK, DECK BOARD, NO.1
58470CHANDLE ASSY, DECK BOARD
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
59315COVER, REAR FLOOR BOX
64714CCOVER, DECK SIDE TRIM, RH
64715CCOVER, DECK SIDE TRIM, LH
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
64740CPANEL ASSY, DECK TRIM SIDE, LH
64741BBOX, DECK SIDE TRIM, RH
sub64741-48031
64742CBOX, DECK SIDE TRIM, LH
sub64742-48021
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64753CPLATE, REAR FLOOR FINISH SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64754CPLATE, REAR FLOOR FINISH SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64910JCOVER ASSY, TONNEAU
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
64991BOX, DECK FLOOR, FRONT
sub64991-48032
64993BOX, DECK FLOOR, REAR
66311HOOK, ROPE
67936BCOVER, BACK DOOR SCUFF SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
67937FCOVER, BACK DOOR SCUFF SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
73530DPANEL ASSY, REAR SEAT SUB FLOOR
9011908A06
main90119-08A06
9017906159
main90179-06159
9017906274
main90179-06274
9017906292
main90179-06292
9046706147
main90467-06147
9046710161
main90467-10161
9054103112
main90541-03112
9162640618
main91626-40618
91631J0612
main91631-J0612
9356054008
main93560-54008
9356054012
main93560-54012
42 parts on this diagram · 1 diagram in section
