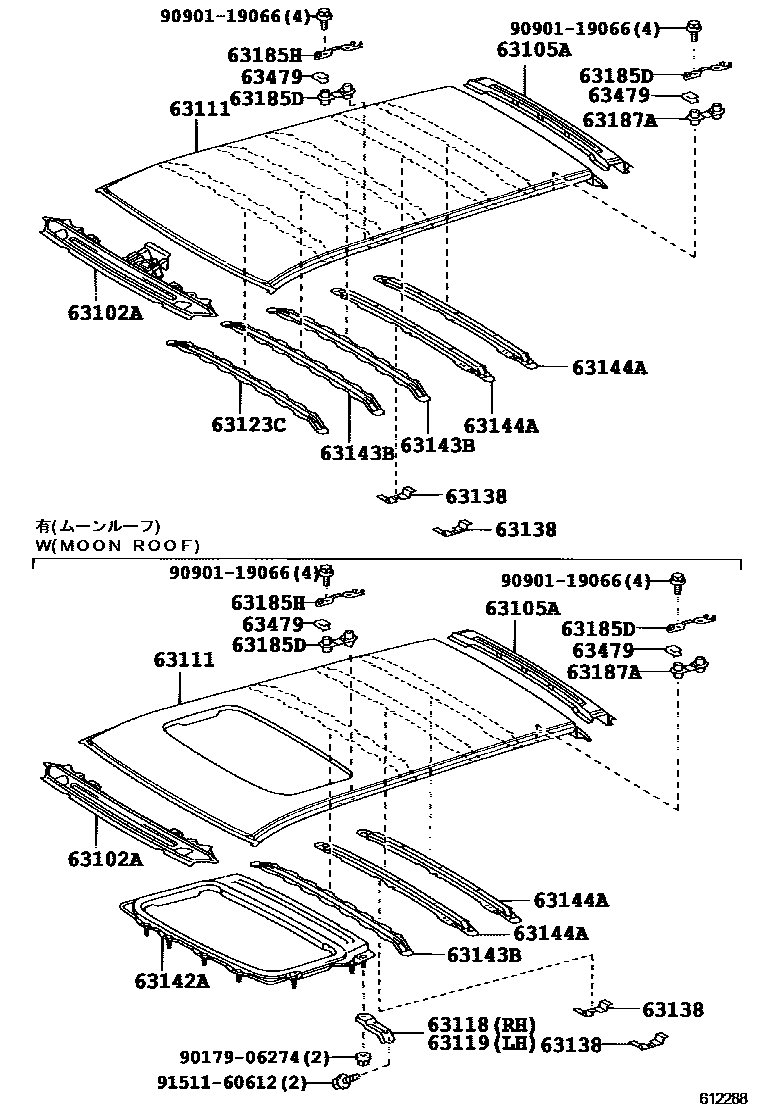

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48050iMHU38200503-200812

main63102-48070iMHU38200503-200812

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48030iMHU38200503-200812

63111PANEL, ROOF

main63111-48070iMHU38200503-200812

main63111-48080iMHU38200503-200812

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-48070iMHU38200503-200812

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63119SUPPORT, ROOF PANEL, LH

main63118-48070iMHU38200503-200812

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63123CREINFORCEMENT, ROOF PANEL

main63123-48020iMHU38200503-200812

63138BRACKET, DOME LAMP, NO.2

main63138-12011iMHU38200503-200812

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-48020iMHU38200503-200812

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48040iMHU38200503-200812

main63143-48050iMHU38200503-200812

SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48030iMHU38200503-200812

63185DBRACKET, ROOF RACK, FRONT

main63187-48010iMHU38200503-200812

63185HBRACKET, ROOF RACK

main63185-42020iMHU38200503-200812

63187ABRACKET, ROOF RACK, REAR

main63187-42010iMHU38200503-200812

63479RETAINER, ROOF INNER RACK

main63479-48010iMHU38200503-200812

9017906274

main90179-06274

9090119066

main90901-19066

9151160612

main91511-60612

17 parts on this diagram · 3 diagrams in section
