FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
sub57021-48013
57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
sub57022-48013
57101MEMBER SUB-ASSY, FRONT SIDE, RH
sub57027-48905
57102MEMBER SUB-ASSY, FRONT SIDE, LH
sub57028-48907
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH
57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH
57173BOX, TORQUE, FRONT NO.2 RH
57174BREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57177APLATE, FRONT SIDE MEMBER, NO.7 RH
57178PLATE, FRONT SIDE MEMBER, NO.7 LH
57181BPLATE, FRONT SIDE MEMBER, NO.3 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
9010512280
main90105-12280
9011908516
main90119-08516
9018906150
main90189-06150
91631J0612
main91631-J0612
91641H0820
main91641-H0820

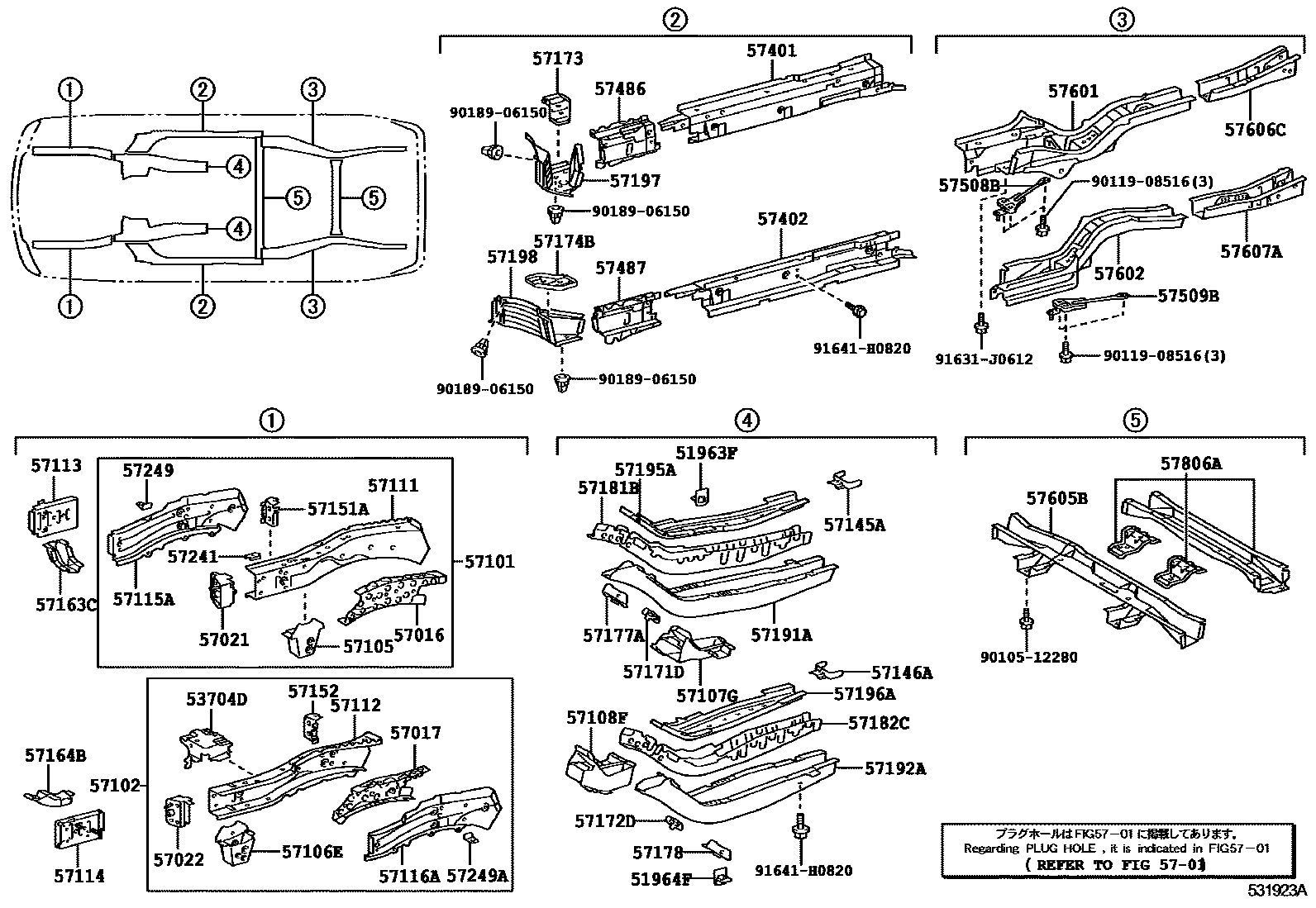

60 parts on this diagram · 1 diagram in section
