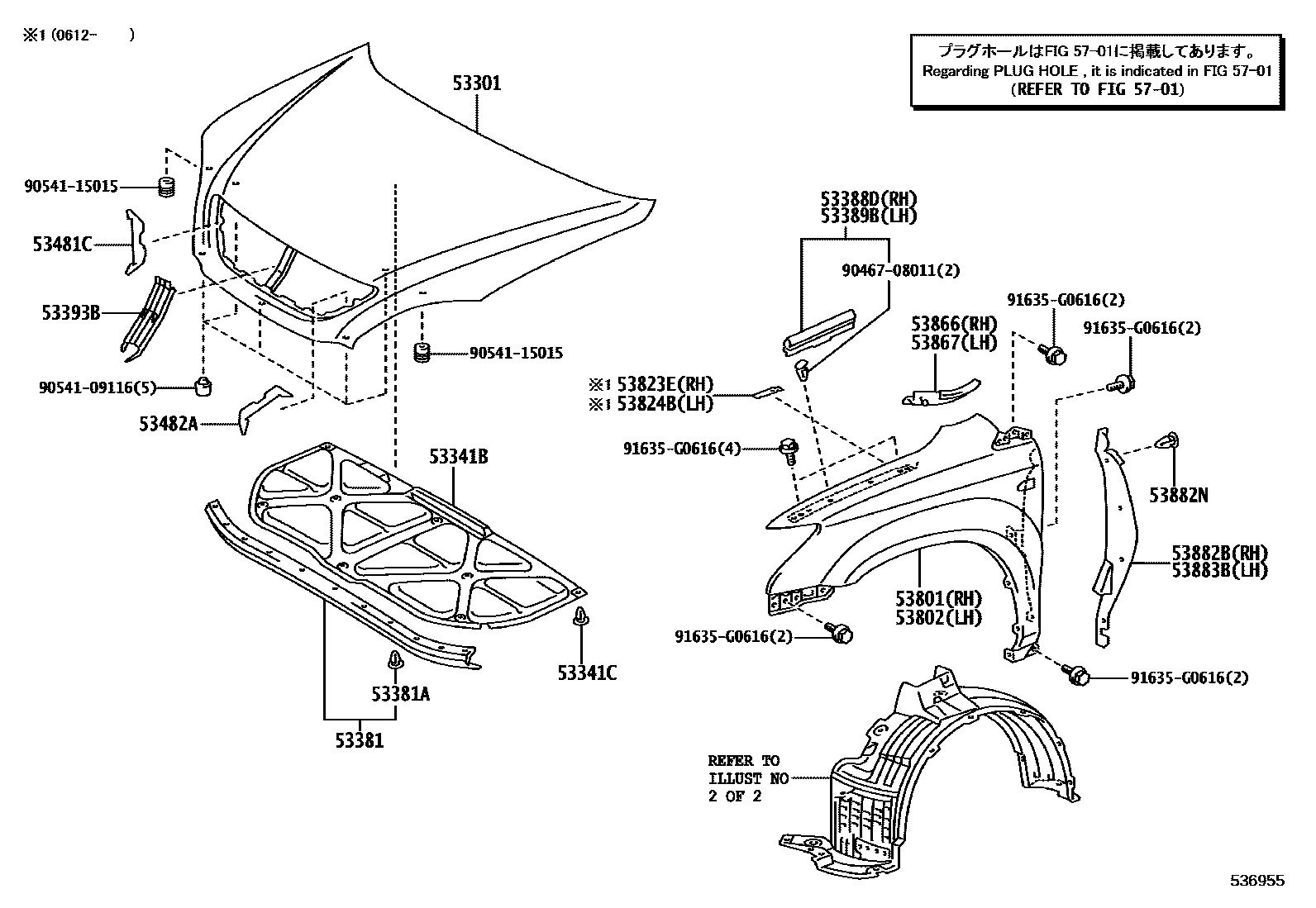

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-48050iMHU38¥61,500200503-200812

53341BINSULATOR, HOOD

main53341-48050iMHU38¥14,100200503-200812

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMHU38¥120200503-200812

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48031iMHU38¥2,060200503-200812

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMHU38¥100200503-200812

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-48010iMHU38¥550200503-200812

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-48010iMHU38¥550200503-200812

53393BPROTECTOR, HOOD, FRONT

main53393-48030iMHU38¥2,910200503-200812

53481CBRACKET, HOOD SUPPORT, RH, NO.1

main53481-48020iMHU38¥380200503-200812

53482ABRACKET, HOOD SUPPORT, LH, NO.1

main53482-48010iMHU38¥380200503-200812

53801FENDER SUB-ASSY, FRONT RH

main53811-48080iMHU38¥48,700200503-200812

53802FENDER SUB-ASSY, FRONT LH

main53812-48090iMHU38¥48,700200503-200812

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-48010iMHU38¥360200612-200812

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-48010iMHU38¥360200612-200812

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-48010iMHU38..RHD¥1,940200503-200812

main53866-48020iMHU38..LHD¥1,650200503-200812

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-48020iMHU38..RHD¥1,650200503-200812

main53867-48030iMHU38..LHD¥1,940200503-200812

53882BSEAL, FRONT FENDER, RH

main53882-48020iMHU38¥3,350200503-200812

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-09169-C0iMHU38200503-200812

BLACK

53883BSEAL, FRONT FENDER, LH

main53883-48020iMHU38¥3,350200503-200812

5701

9046708011

main90467-08011¥100

9054109116

main90541-09116¥100

9054115015

main90541-15015¥220

91635G0616

main91635-G0616¥60

24 parts on this diagram · 2 diagrams in section
