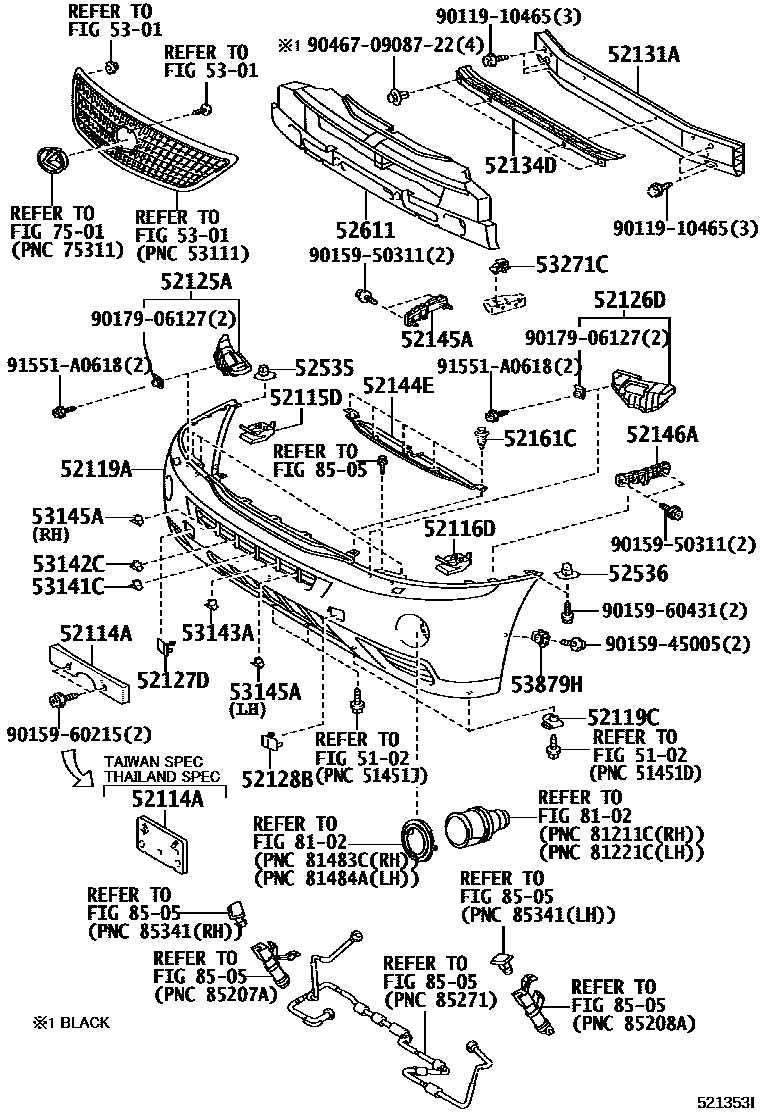

FRONT BUMPER & BUMPER STAY
5102
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52125ABRACKET, FOG LAMP MOUNTING, RH
52126DBRACKET, FOG LAMP MOUNTING, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
52134DREINFORCEMENT, FRONT BUMPER STAY
52144ESTAY, FRONT BUMPER, CENTER
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5301
53141CGARNISH, RADIATOR GRILLE
53142CGARNISH, RADIATOR GRILLE, NO.2
53143AGARNISH, RADIATOR GRILLE, NO.3
53145ABRACKET, RADIATOR GRILLE, GARNISH, NO.1
RH
LH
53271CBRACKET, HEADLAMP MOUNTING
53879HRETAINER, FRONT FENDER LINER
7501
8102
8505
9011910465
main90119-10465
9015945005
main90159-45005
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9017906127
main90179-06127
904670908722
main90467-0908722
91551A0618
main91551-A0618
37 parts on this diagram · 1 diagram in section
