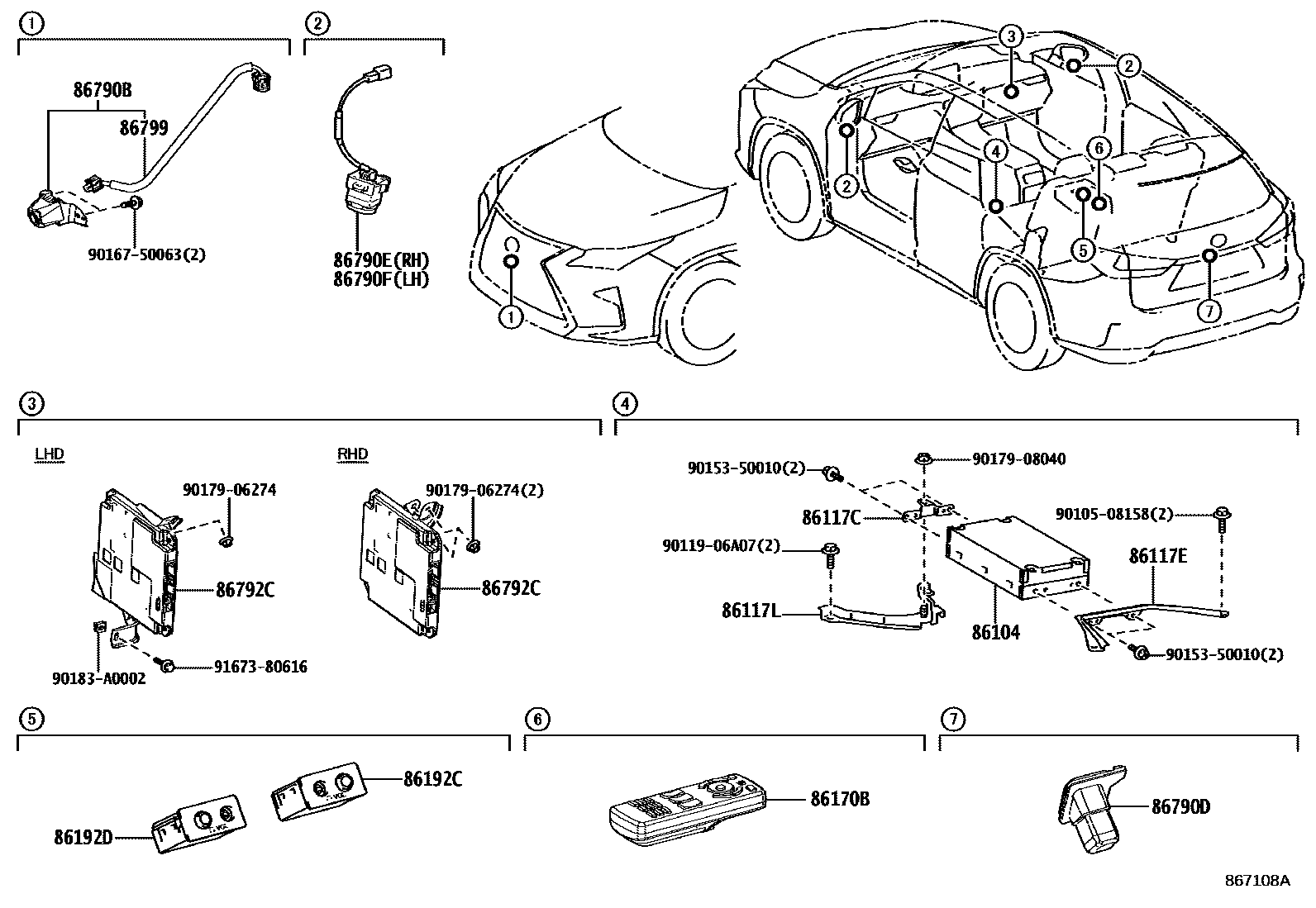

CAMERA & REAR MONITOR DISPLAY
86104CONTROLLER SUB-ASSY, MULTI-DISPLAY
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE)
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86117LBRACKET, MULTI-DISPLAY CONTROLLER, NO.1
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86170BSWITCH & VOLUME ASSY, TELEVISION
AUDIO-DVD&TELEVISION & DVD PLAYER-WITH(*RSE)
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86192CTERMINAL, HEADPHONE, RH
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86192DTERMINAL, HEADPHONE, LH
AUDIO-*EMV & DVD&TELEVISION & DVD PLAYER-WITH(*RSE)&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
AUDIO-DVD&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM)
AUDIO-*EMV & DVD
BACK MONITOR-WITH(*PVM)
AUDIO-DVD&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(*PVM)
TAIWAN SPEC&BACK MONITOR-WITH(*PVM)
AUSTRALIA SPEC&BACK MONITOR-WITH(*PVM),REFER TO PNC 86792C
AUDIO-DVD&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),REFER TO PNC 86792C
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITH(*PVM)
VIETNAM SPEC&BACK MONITOR-WITH(*PVM)
AUSTRALIA SPEC&BACK MONITOR-WITH(*PVM),REFER TO PNC 86792C
AUDIO-DVD&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),REFER TO PNC 86792C
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WITH(*PVM),P/N LABEL=8679248580
BACK MONITOR-WITH(*PVM),P/N LABEL=8679248581
BACK MONITOR-WITH(*PVM),P/N LABEL=8679248590
BACK MONITOR-WITH(*PVM),P/N LABEL=8679248591
86799WIRE, TELEVISION CAMERA
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
9010508158
main90105-08158
9011906A07
main90119-06A07
9015350010
main90153-50010
9016750063
main90167-50063
9017906274
main90179-06274
9017908040
main90179-08040
90183A0002
main90183-A0002
9167380616
main91673-80616
21 parts on this diagram · 3 diagrams in section
