SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM(1/2) 0004 1ENGINE ROOM(1/2) 0005 1ENGINE ROOM(2/2) 0006 1ENGINE ROOM(2/2) 0007 1COWL 0008 1COWL 0009 1COWL 0010 1RHD 0011 1INSTRUMENT PANEL(1/2) 0012 1INSTRUMENT PANEL(1/2) 0013 1INSTRUMENT PANEL(2/2) 0014 1INSTRUMENT PANEL(2/2) 0015 1INSTRUMENT PANEL(2/2) 0016 1INSTRUMENT PANEL(2/2) 0017 1STEERING 0018 1SEAT 0019 1DOOR, ROOF & FLOOR 0020 1FLOOR, LUGGAGE & BACK DOOR 0021 1FLOOR, LUGGAGE & BACK DOOR 0022 1FLOOR, LUGGAGE & BACK DOOR 0023 1FLOOR, LUGGAGE & BACK DOOR

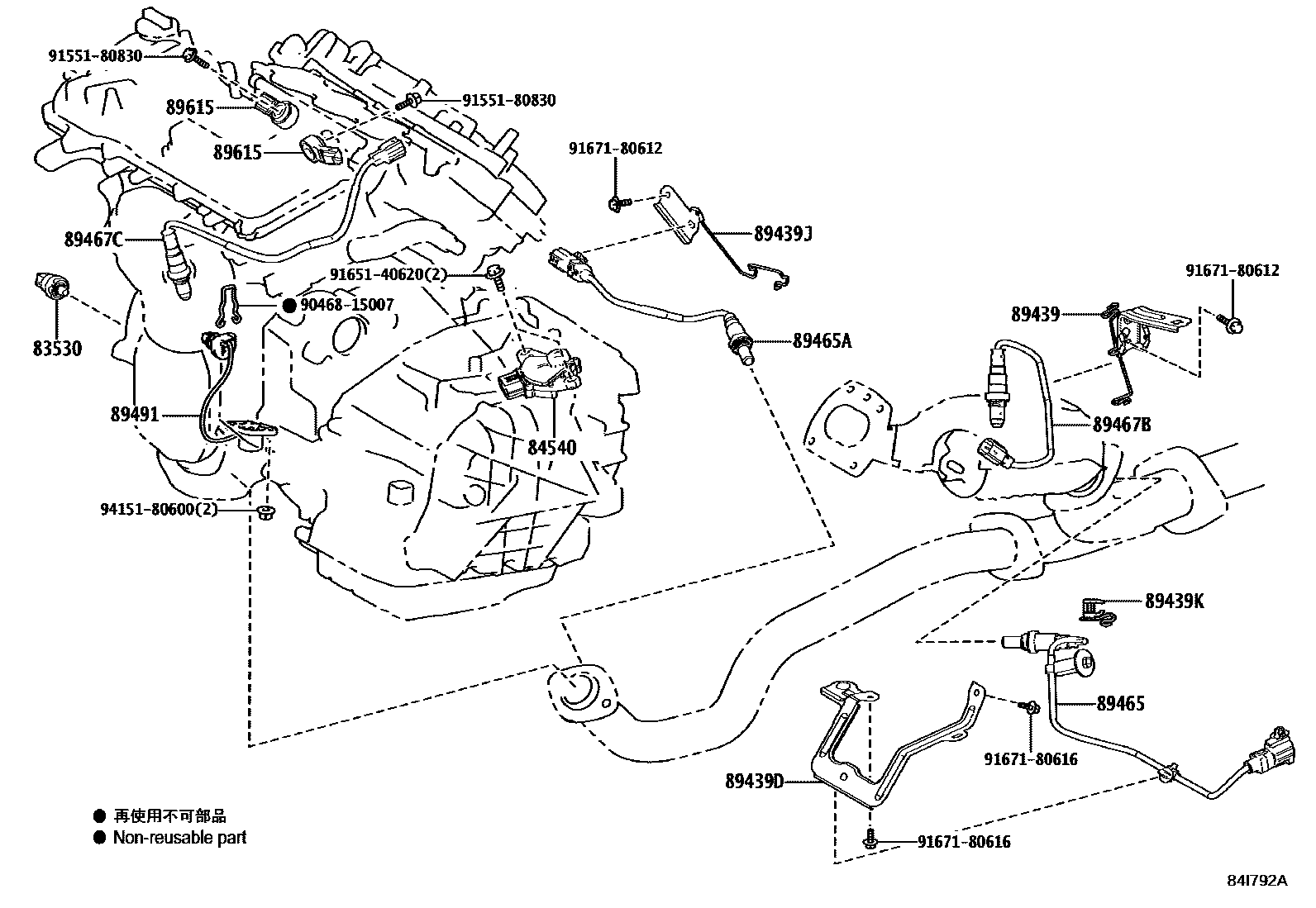

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGGL26,GYL26¥1,970201712-201908

DENSO,*369

main83530-60020iGGL26,GYL26¥1,970201712-201908

YAZAKI,*369

84540SWITCH ASSY, NEUTRAL START

main84540-48030iGGL26201712-201908

89439BRACKET, SENSOR

main82715-45080iGGL26,GYL26¥600201712-201908

89439DBRACKET, SENSOR, NO.1

main82715-48A20iGGL26,GYL26¥1,010201712-201908

89439JBRACKET, SENSOR, NO.2

main82715-48M50iGGL26,GYL26¥410201712-201908

89439KBRACKET, SENSOR, NO.3

main82715-72040iGGL26¥220201712-201908

89465SENSOR, OXYGEN

main89465-48400iGGL26201712-201908

main89465-48410iGYL26¥7,100201712-201908

89465ASENSOR, OXYGEN NO.2

main89465-48390iGGL26,GYL26¥7,100201712-201908

89467BSENSOR, AIR FUEL RATIO

main89467-48320iGGL26,GYL26¥9,900201712-201908

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48310iGGL26,GYL26¥10,900201712-201908

89491SENSOR, ENGINE OIL LEVEL

main89491-48020iGGL26,GYL26¥4,400201712-201808

sub89491-48021¥4,410

main89491-48021iGGL26,GYL26¥4,410201809-202004

sub89491-48040¥3,670

main89491-48040iGGL26,GYL26¥3,670202005-202204

sub89491-48041¥3,330

main89491-48041iGGL26,GYL26¥3,330202205

89615SENSOR, KNOCK CONTROL

main89615-20090iGGL26,GYL26¥2,370201712-201908

9046815007

main90468-15007¥80

9155180830

main91551-80830¥80

9165140620

main91651-40620¥70

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

18 parts on this diagram · 23 diagrams in section
