WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE 0005 1ENGINE 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1DOOR 0009 1FLOOR & ROOF 0010 1FLOOR & ROOF 0011 1HIGH VOLTAGE CABLE 0012 1SEAT 0013 1CRAMP & BRACKET 0014 1CRAMP & BRACKET 0015 1CONNECTOR 1/3 0016 1CONNECTOR 2/3 0017 1CONNECTOR 3/3

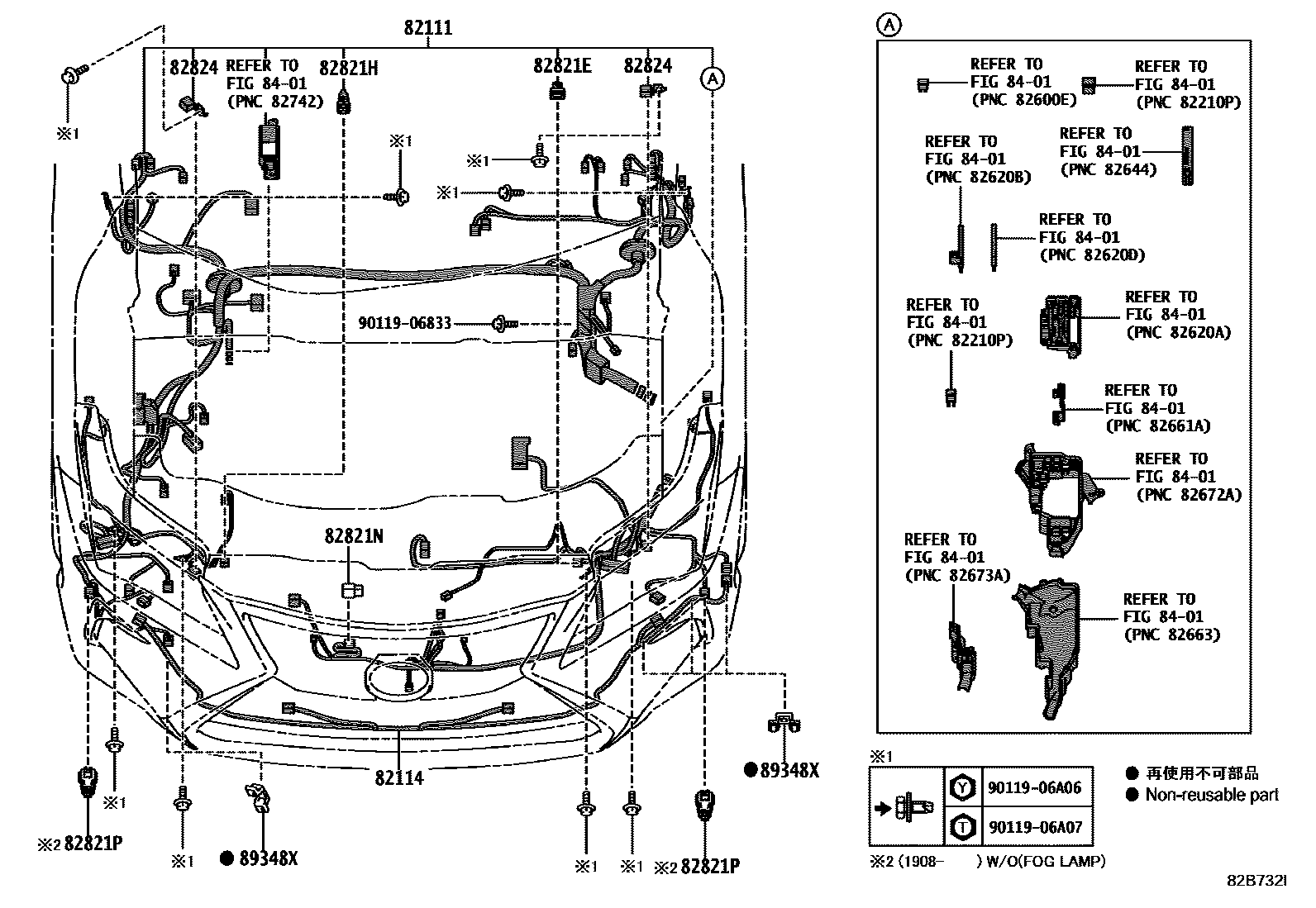

82111WIRE, ENGINE ROOM MAIN

main82111-4D640iGGL26..LHD201712-201908

main82111-4D730iGGL26..RHD201712-201908

main82111-4D770iGYL26..LHD201712-201908

main82111-4D840iGYL26..RHD201712-201908

main82111-4DC40iGYL26..RHD201908-202007

main82111-4DD00iGGL26..LHD201908-202209

main82111-4DD60iGGL26..RHD201908-202101

main82111-4DD61iGGL26..RHD202101-202209

main82111-4DE00iGYL26..LHD..(GCC,GEN)201908-202007

main82111-4DE30iGYL26..CHI201908-202107

main82111-4DK00iGYL26..RHD202007-202209

main82111-4DK10iGYL26..LHD..(GCC,GEN)202007-202209

main82111-4DN80iGYL26..CHI202107-202209

82114WIRE, ENGINE ROOM, NO.4

main82114-48100iGYL26..CHI¥1,970201908

PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)

main82114-48100iGYL26..CHI¥1,970201908

PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)

main82114-48100iGYL26..CHI¥1,970201908

PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)

82821ECOVER, CONNECTOR

main82821-30650iGGL26,GYL26¥60201712-201908

82821HCOVER, CONNECTOR

main82821-42040iGGL26,GYL26¥170201712-201908

82821NCOVER, CONNECTOR

main82821-48310iGGL26,GYL26201712-201908

AUDIO-*EMV & DVD

main82821-48310iGGL26,GYL26201908

82821PCOVER, CONNECTOR

82824CONNECTOR, WIRING HARNESS

main82824-48020iGGL26,GYL26¥1,990201712-201908

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iGGL26,GYL26..LHD..GEN¥260201908

PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)

main89348-50050iGGL26,GYL26..LHD..GEN¥260201908

PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)

main89348-50050iGGL26,GYL26..LHD..GEN¥260201908

PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)

9011906833

main90119-06833¥60

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

12 parts on this diagram · 17 diagrams in section
