FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK(BEIJING SPEC) 0004 1FUEL PUMP 0005 1FUEL PUMP 0006 1FUEL PUMP(BEIJING SPEC) 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE, BEIJING SPEC 0010 1TUBE(HONG KONG MACAO TAIWAN S0011 1FUEL LID OPENER 0012 1FUEL LID OPENER(CHINA 6)

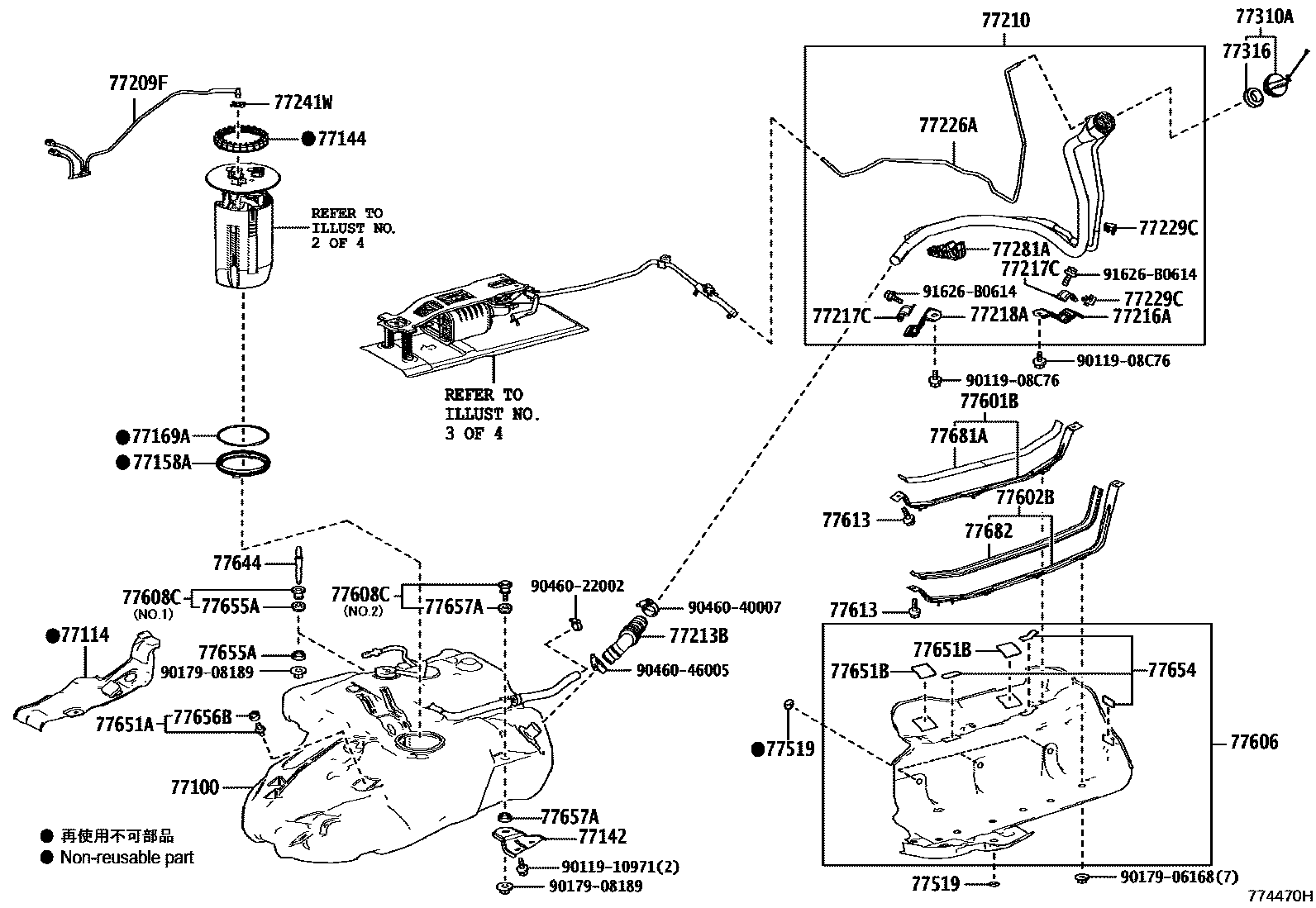

77100TANK ASSY, FUEL

main77001-48201iGGL26201712-201908

sub77001-0E090

sub77114-0E060

sub77213-0E060

sub77652-48060

sub77653-0E010

sub90460-50008

main77001-48211iGYL26..CHI201712-202209

main77001-48280iGYL26..CHI202007-202209

(L)

77114PLATE, FUEL TANK SIDE, REAR

main77114-48040iGGL26201712-201908

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-48010iGGL26201712-201908

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iGGL26201712-201908

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iGGL26201712-201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33030iGYL26201712-201908

main77169-48040iGGL26201712-201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-48120iGGL26201712-201908

main77209-48130iGYL26201805-202007

main77209-48160iGYL26..CHI202007

TAIWAN SPEC

main77209-48190iGYL26201712-201804

sub77209-48130

77210PIPE ASSY, FUEL TANK FILLER

main77210-48340iGGL26201712-201908

main77210-48370iGYL26201712-202007

main77210-48410iGYL26..CHI202007

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48110iGGL26201712-201908

main77213-48120iGYL26201712-202007

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48060iGGL26201712-201908

main77216-48090iGYL26..CHI201712-202007

main77216-48100iGYL26..CHI202007

TAIWAN SPEC

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48060iGGL26201712-201908

main77217-48080iGYL26..LHD..GEN202007

TAIWAN SPEC

main77217-48090iGYL26201712-202007

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48090iGGL26201712-201908

main77218-48120iGYL26201712-202007

main77218-48150iGYL26..CHI202007

TAIWAN SPEC

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-48160iGGL26201712-201908

main77226-48190iGYL26201712-202007

77229CCLAMP, BREATHER TUBE

main77229-48050iGGL26,GYL26201712-202007

main77229-48080iGYL26..CHI202007

77241WCLIP, TUBE JOINT

main77241-33011iGYL26..CHI201908-202007

BEIJING SPEC

main77241-33011iGGL26,GYL26201712-201908

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48130iGGL26201712-201908

77281ACLAMP, FUEL FILLER PIPE

main77281-48090iGGL26201712-201908

main77281-48110iGYL26201712-202007

main77281-48170iGYL26..CHI202007

77310ACAP ASSY, FUEL TANK

main77300-11010iGYL26..CHI202007

main77300-12020iGGL26,GYL26201712-202007

77316GASKET, FUEL TANK CAP

main77316-52040iGGL26,GYL26201712-202007

main77316-75020iGYL26..CHI202007

TAIWAN SPEC

77519SPACER, FUEL TANK BRACKET

main77529-48010iGGL26201712-201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0E040iGYL26..CHI202007

main77601-48080iGGL26201712-201908

main77601-48200iGYL26..CHI201712-202007

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E040iGYL26..CHI202007

main77602-48190iGGL26201712-201908

main77602-48200iGYL26..GCC,GEN201712-202007

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E050iGYL26..CHI202007

main77606-48140iGGL26201712-201908

main77606-48150iGYL26..CHI201712-202007

77608CCUSHION SET, FUEL TANK

main77608-48011iGGL26201712-201908

NO.1

main77608-48040iGGL26201712-201908

NO.2

77613BOLT, FUEL TANK BAND SET

main90119-10971iGGL26,GYL26201712-201908

77644BOLT, FUEL TANK

main77644-48010iGGL26201712-201908

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iGYL26201712-201908

main77651-48020iGGL26201712-201908

77651BCUSHION, FUEL TANK

main77651-12070iGGL26201712-201908

77654CUSHION, FUEL TANK, NO.2

main77652-48020iGGL26201712-201908

77655ACUSHION, FUEL TANK, NO.5

main77655-48011iGGL26201712-201908

77656BCUSHION, FUEL TANK, NO.6

main77656-48020iGGL26201712-201908

77657ACUSHION, FUEL TANK, NO.5

main77655-48020iGGL26201712-201908

77681ASEAT, FUEL TANK BAND

main77681-48050iGGL26201712-201908

main77681-60200iGYL26201712-202007

77682SEAT, FUEL TANK BAND, LH

main77616-0E050iGYL26..CHI202007

main77681-48090iGYL26201712-202007

main77682-48050iGGL26201712-201908

9011908C76

main90119-08C76

9011910971

main90119-10971

9017906168

main90179-06168

9017908189

main90179-08189

9046022002

main90460-22002

9046040007

main90460-40007

9046046005

main90460-46005

91626B0614

main91626-B0614
