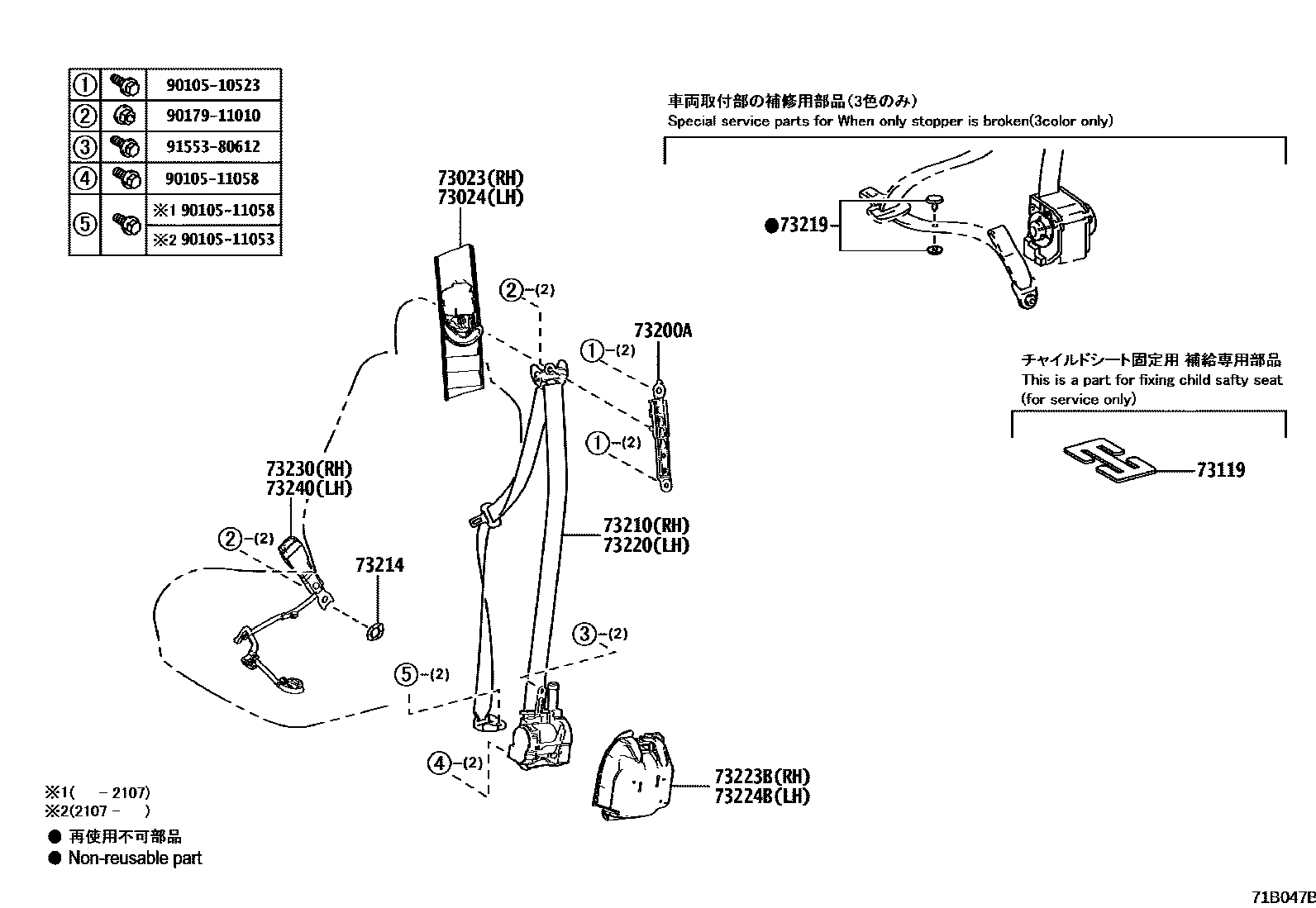

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT-BENCH SEAT 0003 1REAR NO.1 SEAT-CAPTAIN SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-A1iGGL26,GYL26201908

ECRU,TRIM0#,5#,6#

main73023-58010-B1iGGL26,GYL26201908

MOON STONE,TRIM1#,2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-A1iGGL26,GYL26201712-201908

ECRU,TRIM0#,5#,6#

main73024-58010-B1iGGL26,GYL26201908

MOON STONE,TRIM1#,2#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGGL26,GYL26201908

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iGGL26,GYL26201712-201908

main73200-42020×2iGGL26,GYL26202007

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48450-C3iGGL26,GYL26..GCC,GEN201908-202207

BLACK/MOON STONE,TRIM1#,2#,4#

main73210-48450-C7iGGL26,GYL26..GCC,GEN201908-202007

BLACK/ECRU,TRIM00,01,02,03,04,5#,6#

main73210-48450-E1iGGL26,GYL26..GCC,GEN201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

main73210-48451-C3iGGL26,GYL26..GCC,GEN202208

BLACK/MOON STONE,TRIM2#,4#

main73210-48451-C7iGGL26,GYL26..GCC,GEN202208

BLACK/ECRU,TRIM0#,5#,6#

main73210-48570-C3iGYL26..CHI201908-202207

BLACK/MOON STONE,TRIM1#,2#,4#

main73210-48570-C7iGYL26..CHI202007-202207

BLACK/ECRU,TRIM0#,5#,6#

main73210-48570-E1iGYL26..CHI201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

main73210-48571-C3iGYL26..CHI202208

BLACK/MOON STONE,TRIM2#,4#

main73210-48571-C7iGYL26..CHI202208

BLACK/ECRU,TRIM0#,5#,6#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iGGL26,GYL26201712-201908

73219STOPPER, TONGUE PLATE

main73219-33010iGGL26,GYL26201908

BLACK

main73219-33020iGGL26,GYL26201712-201908

GRAY

main73219-33030iGGL26,GYL26201908

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48520-C3iGGL26,GYL26..GCC,GEN201908-202207

BLACK/MOON STONE,TRIM1#,2#,4#

main73220-48520-C7iGGL26,GYL26..GCC,GEN202007-202207

BLACK/ECRU,TRIM0#,5#,6#

main73220-48520-E1iGGL26,GYL26..GCC,GEN201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

main73220-48521-C3iGGL26,GYL26..GCC,GEN202208

BLACK/MOON STONE,TRIM2#,4#

main73220-48521-C7iGGL26,GYL26..GCC,GEN202208

BLACK/ECRU,TRIM0#,5#,6#

main73220-48530-C3iGYL26..CHI201908-202207

BLACK/MOON STONE,TRIM1#,2#,4#

main73220-48530-C7iGYL26..CHI201908-202007

BLACK/ECRU,TRIM00,01,02,03,04,5#,6#

main73220-48530-E1iGYL26..CHI201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

main73220-48531-C3iGYL26..CHI202208

BLACK/MOON STONE,TRIM2#,4#

main73220-48531-C7iGYL26..CHI202208

BLACK/ECRU,TRIM0#,5#,6#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-48020iGGL26,GYL26201712-201908

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73223-48020iGGL26,GYL26201908

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48530-C0iGGL26,GYL26..RHD201712-201908

BLACK,TRIM1#,2#,4#

main73230-48530-E0iGGL26,GYL26..RHD201712-201908

NOBLE BROWN,TRIM0#,5#,6#

main73230-48540-C0iGGL26,GYL26..LHD201908-202007

BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#

main73230-48540-E0iGGL26,GYL26..LHD201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48530-C0iGGL26,GYL26..LHD201908-202007

BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#

main73230-48530-E0iGGL26,GYL26..LHD201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

main73230-48540-C0iGGL26,GYL26..RHD201908-202007

BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#

main73230-48540-E0iGGL26,GYL26..RHD201712-201908

NOBLE BROWN,TRIM0#,5#,6#

9010510523

main90105-10523

9010511053

main90105-11053

9010511058

main90105-11058

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 4 diagrams in section
