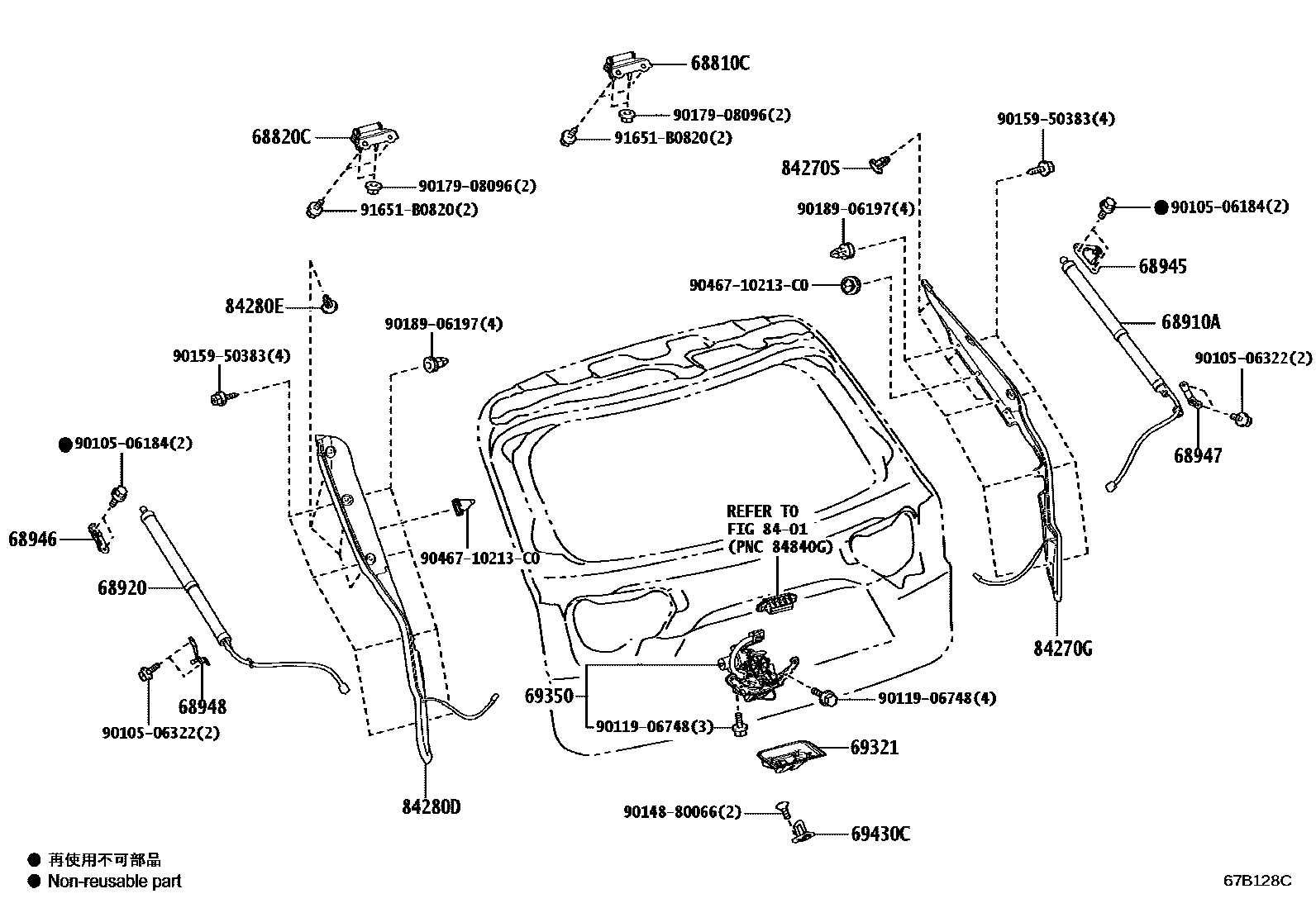

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69321COVER, BACK DOOR LOCK
69350LOCK ASSY, BACK DOOR
TAIWAN SPEC
PHILIPPINE SPEC
VIETNAM SPEC
AUSTRALIA SPEC
NEW ZEALAND SPEC
SOUTH AFRICA SPEC
SINGAPORE SPEC
INDONESIA SPEC
BRUNEI SPEC
MALAYSIA SPEC
69430CSTRIKER ASSY, BACK DOOR LOCK
8401
84270GSENSOR ASSY, POWER BACK DOOR, RH
84270SCLIP(POWER BACK DOOR SENSOR, RH)
84280DSENSOR ASSY, POWER BACK DOOR, LH
84280ECLIP (FOR POWER BACK DOOR SENSOR, LH)
9010506184
main90105-06184
9010506322
main90105-06322
9011906748
main90119-06748
9014880066
main90148-80066
9015950383
main90159-50383
9017908096
main90179-08096
9018906197
main90189-06197
9046710213C0
main90467-10213C0
91651B0820
main91651-B0820
25 parts on this diagram · 1 diagram in section
