E
EPC Data

REAR DOOR LOCK & HANDLE

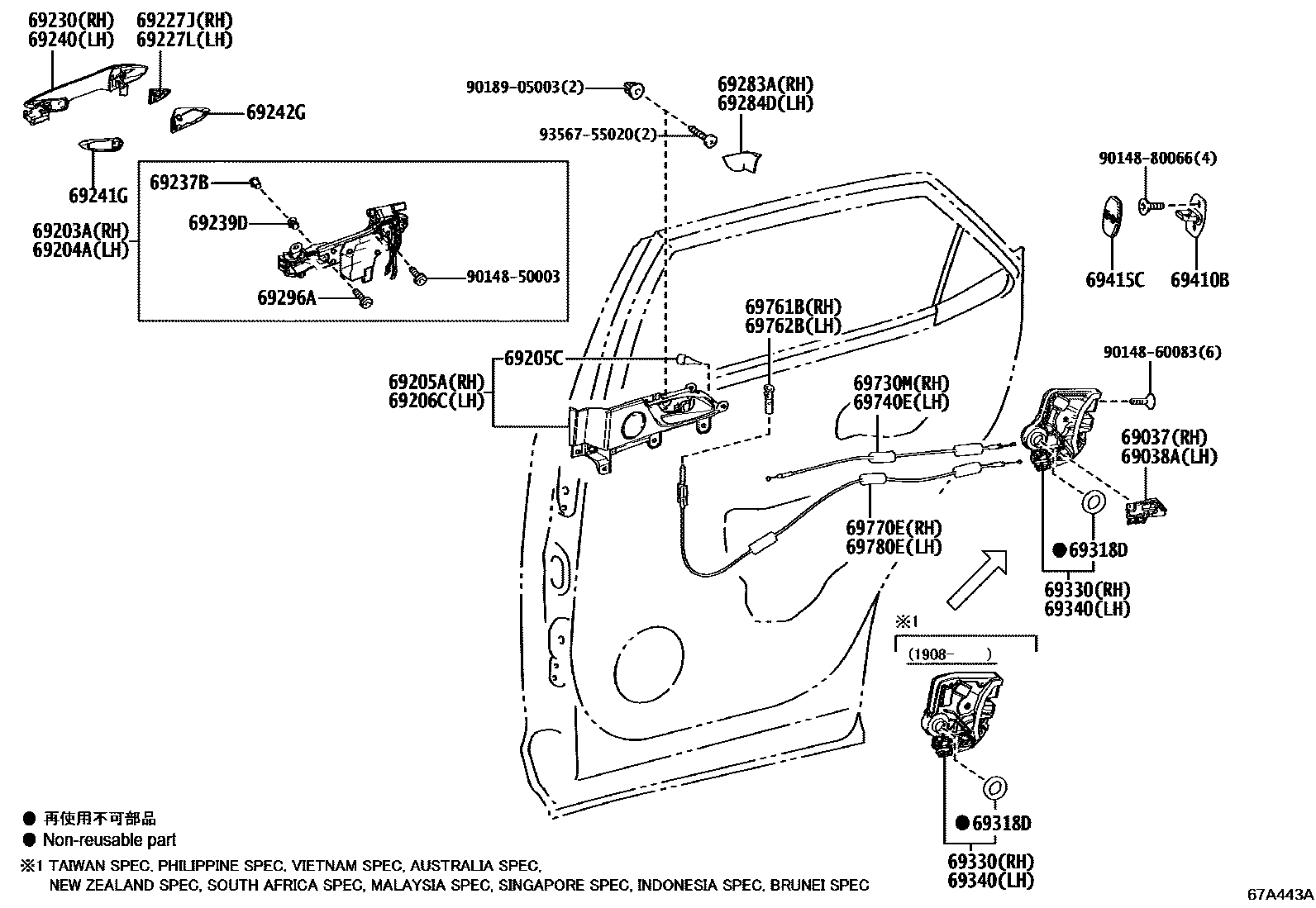

Parts diagram
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
main69037-30010i201712-201908
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
main69038-30010i201712-201908
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-48060i201712-201908
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-48060i201712-201908
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main67607-48030-C0i201712-201905
BLACK,TRIM2#,4#
sub67607-48031
main67607-48030-E0i201712-201905
NOBLE BROWN,TRIM0#,5#,6#
sub67607-48031
main67607-48031-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
main67607-48031-C0i201906-201908
BLACK,TRIM2#,4#
main67607-48031-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main67607-48031-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48031-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48031-E0i201906-201908
NOBLE BROWN,TRIM0#,5#,6#
main67607-48031-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main67607-48040-C0i201712-201905
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
sub67607-48041
main67607-48040-C0i201712-201905
"VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
sub67607-48041
main67607-48040-C0i201712-201905
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
sub67607-48041
main67607-48040-C0i201712-201905
SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
sub67607-48041
main67607-48040-E0i201712-201905
SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
sub67607-48041
main67607-48040-E0i201712-201905
"VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
sub67607-48041
main67607-48040-E0i201712-201905
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
sub67607-48041
main67607-48040-E0i201712-201905
SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
sub67607-48041
main67607-48041-C0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201906-201908
"VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
main67607-48041-C0i201906-201908
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
main67607-48041-C0i201906-201908
SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
main67607-48041-C0i201906-201908
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
main67607-48041-C0i201908-202007
YEMEN SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201908-202007
SYRIA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER,*MAR,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201908-202007
SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i201908-202007
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67607-48041-C0i202007-202107
SYRIA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
YEMEN SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER,*MAR,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-C0i202007
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67607-48041-E0i201908-202007
SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201906-201908
SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
main67607-48041-E0i201906-201908
"VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
main67607-48041-E0i201906-201908
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
main67607-48041-E0i201906-201908
SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
main67607-48041-E0i201908-202007
YEMEN SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201908-202007
SYRIA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER,*MAR,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM00,01,02,03,04
main67607-48041-E0i201908-202007
SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04014i201712-201908
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main67608-48030-C0i201712-201905
BLACK,TRIM2#,4#
sub67608-48031
main67608-48030-E0i201712-201905
NOBLE BROWN,TRIM0#,5#,6#
sub67608-48031
main67608-48031-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48031-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main67608-48031-C0i201906-201908
BLACK,TRIM2#,4#
main67608-48031-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48031-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
main67608-48031-E0i201906-201908
NOBLE BROWN,TRIM0#,5#,6#
main67608-48031-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main67608-48040-C0i201712-201905
"VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
sub67608-48041
main67608-48040-C0i201712-201905
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
sub67608-48041
main67608-48040-C0i201712-201905
SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
sub67608-48041
main67608-48040-C0i201712-201905
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
sub67608-48041
main67608-48040-E0i201712-201905
"VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
sub67608-48041
main67608-48040-E0i201712-201905
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
sub67608-48041
main67608-48040-E0i201712-201905
SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
sub67608-48041
main67608-48040-E0i201712-201905
SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
sub67608-48041
main67608-48041-C0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i201906-201908
"VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
main67608-48041-C0i201906-201908
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
main67608-48041-C0i201906-201908
SPEAKER-12SPEAKER,BLACK,TRIM2#,4#
main67608-48041-C0i201906-201908
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4#
main67608-48041-C0i201908-202007
YEMEN SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
SYRIA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER,*MAR,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
SPEAKER-12SPEAKER,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i201908-202007
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main67608-48041-C0i202007-202107
SYRIA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i202007
YEMEN SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER,*MAR,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i202007
SPEAKER-12SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-C0i202007
SPEAKER-15SPEAKER, *MAR,BLACK,TRIM0#,1#,2#,4#,5#,6#
main67608-48041-E0i201908-202007
SYRIA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER,*MAR,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
YEMEN SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
main67608-48041-E0i201906-201908
"VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
main67608-48041-E0i201906-201908
SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
main67608-48041-E0i201906-201908
SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6#
main67608-48041-E0i201906-201908
"VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-78010i201712-201908
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69228-78010i201712-201908
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-48110-A1i201712-201908
SONIC QUARTZ,085
sub69210-48110
main69210-48110-B0i201712-201908
MERCURY GRAY MC.,1H9
sub69210-48110
main69210-48110-B1i201712-201908
PLATINUM SILVER ME.,1J4
sub69210-48110
main69210-48110-B2i201712-201908
SONIC TITANIUM,1J7
sub69210-48110
main69210-48110-B5i202107
SONIC CHROME,1L1
sub69210-48110
main69210-48110-B6i202107
SONIC IRIDIUM,1L2
sub69210-48110
main69210-48110-C0i201712-201908
BLACK,212
sub69210-48110
main69210-48110-C1i201712-201908
GRAPHITE BLACK GF.,223
sub69210-48110
main69210-48110-D0i201712-201908
RED MC.CS.,3R1
sub69210-48110
main69210-48110-E0i201712-201908
SLEEK ECRU ME.,4U7
sub69210-48110
main69210-48110-E1i201712-202107
AMBER CS.,4X2
sub69210-48110
main69210-48110-E4i201908
ICE ECRU M.M.,4X8
sub69210-48110
main69210-48110-G0i201908
TERRANE KHAKI M.M.,6X4
sub69210-48110
main69210-48110-J0i201712-201908
DEEP BLUE MC.,8X5
sub69210-48110
69237BNUT, REAR DOOR HANDLE
main69237-30010i201712-201908
69239DBUSH, REAR DOOR HANDLE
main69239-30010i201712-201908
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69220-48070-A1i201712-201908
SONIC QUARTZ,085
sub69220-48070
main69220-48070-B0i201712-201908
MERCURY GRAY MC.,1H9
sub69220-48070
main69220-48070-B1i201712-201908
PLATINUM SILVER ME.,1J4
sub69220-48070
main69220-48070-B2i201712-201908
SONIC TITANIUM,1J7
sub69220-48070
main69220-48070-B5i202107
SONIC CHROME,1L1
sub69220-48070
main69220-48070-B6i202107
SONIC IRIDIUM,1L2
sub69220-48070
main69220-48070-C0i201712-201908
BLACK,212
sub69220-48070
main69220-48070-C1i201712-201908
GRAPHITE BLACK GF.,223
sub69220-48070
main69220-48070-D0i201712-201908
RED MC.CS.,3R1
sub69220-48070
main69220-48070-E0i201712-201908
SLEEK ECRU ME.,4U7
sub69220-48070
main69220-48070-E1i201712-202107
AMBER CS.,4X2
sub69220-48070
main69220-48070-E4i201908
ICE ECRU M.M.,4X8
sub69220-48070
main69220-48070-G0i201908
TERRANE KHAKI M.M.,6X4
sub69220-48070
main69220-48070-J0i201712-201908
DEEP BLUE MC.,8X5
sub69220-48070
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-78010i201712-201908
RH
main69242-78010i201712-201908
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-78020i201712-201908
RH
main69242-78020i201712-201908
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-48010-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main69283-48010-C0i201712-201908
BLACK,TRIM1#,2#,4#
main69283-48010-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main69283-48010-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
main69283-48010-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-48010-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main69284-48010-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main69284-48010-C0i201712-201908
BLACK,TRIM1#,2#,4#
main69284-48010-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
main69284-48010-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
69296ASCREW, DOOR INSIDE HANDLE
main69296-30010i201712-201908
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201712-201908
69330LOCK ASSY, REAR DOOR, RH
main69050-48070i201712-201908
main69050-48080i201908
BRUNEI SPEC
main69050-48080i201908-202007
TAIWAN SPEC
main69050-48080i201908-202107
MALAYSIA SPEC
main69050-48080i201908-202107
SINGAPORE SPEC
main69050-48080i201908
PHILIPPINE SPEC
main69050-48080i201908
VIETNAM SPEC
main69050-48080i201908
AUSTRALIA SPEC
main69050-48080i201908
NEW ZEALAND SPEC
main69050-48080i201908
SOUTH AFRICA SPEC
main69050-48080i201908
INDONESIA SPEC
69340LOCK ASSY, REAR DOOR, LH
main69060-48070i201712-201908
main69060-48080i201908
NEW ZEALAND SPEC
main69060-48080i201908
AUSTRALIA SPEC
main69060-48080i201908
VIETNAM SPEC
main69060-48080i201908
PHILIPPINE SPEC
main69060-48080i201908-202007
TAIWAN SPEC
main69060-48080i201908
BRUNEI SPEC
main69060-48080i201908
INDONESIA SPEC
main69060-48080i201908-202107
SINGAPORE SPEC
main69060-48080i201908
SOUTH AFRICA SPEC
main69060-48080i201908-202107
MALAYSIA SPEC
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33030i201712-201908
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-60020i201712-201908
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69730-48080i201712-201908
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69730-48080i201712-201908
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
main69761-48030i201712-201908
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
main69761-48030i201712-201908
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69770-48091i201712-201908
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69770-48091i201712-201908
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020

34 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
