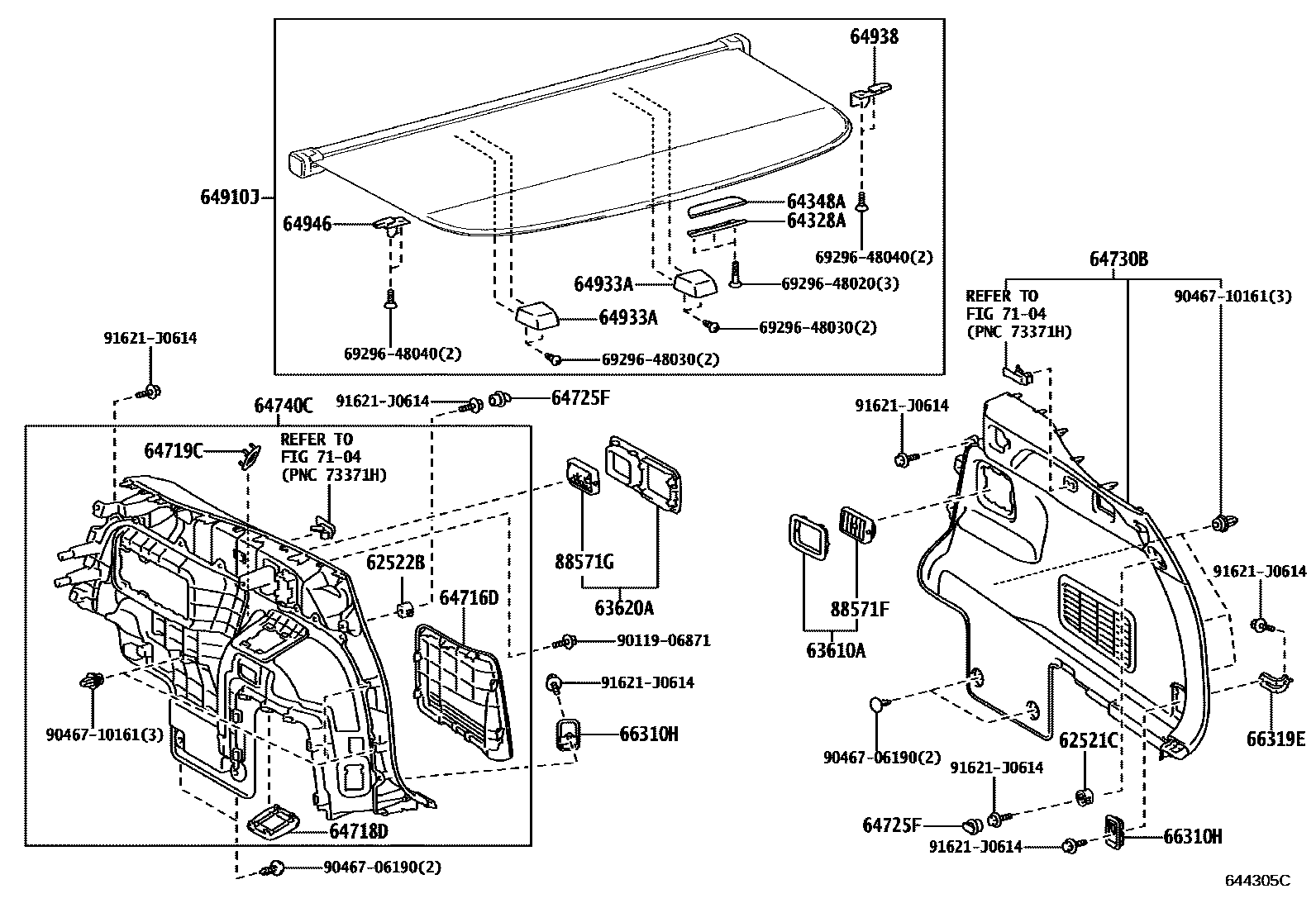

DECK BOARD & DECK TRIM COVER
62521CCOVER, QUARTER TRIM RH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
62522BCOVER, QUARTER TRIM LH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
63610AREGISTER ASSY, AIR OUTLET, RH
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
63620AREGISTER ASSY, AIR OUTLET, LH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
64328ACOVER, PACKAGE TRAY TRIM CLAMP
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64348AKNOB, PACKAGE TRAY TRIM
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64718DCOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64719CCOVER, DECK TRIM POCKET
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64933ABRACKET, TONNEAU COVER HOLDER, RH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
64938HOOK, TONNEAU COVER, A
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
64946HOOK, TONNEAU COVER, B
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
66310HHOOK ASSY, ROPE
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
66319EBRACKET, ROPE HOOK, RH
7104
88571FGRILLE, COOLER AIR OUTLET, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
88571GGRILLE, COOLER AIR OUTLET, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
6929648020SCREW, DOOR INSIDE HANDLE
6929648030SCREW, DOOR INSIDE HANDLE
6929648040SCREW, DOOR INSIDE HANDLE
9011906871
9046706190
9046710161
91621J0614
28 parts on this diagram · 3 diagrams in section
