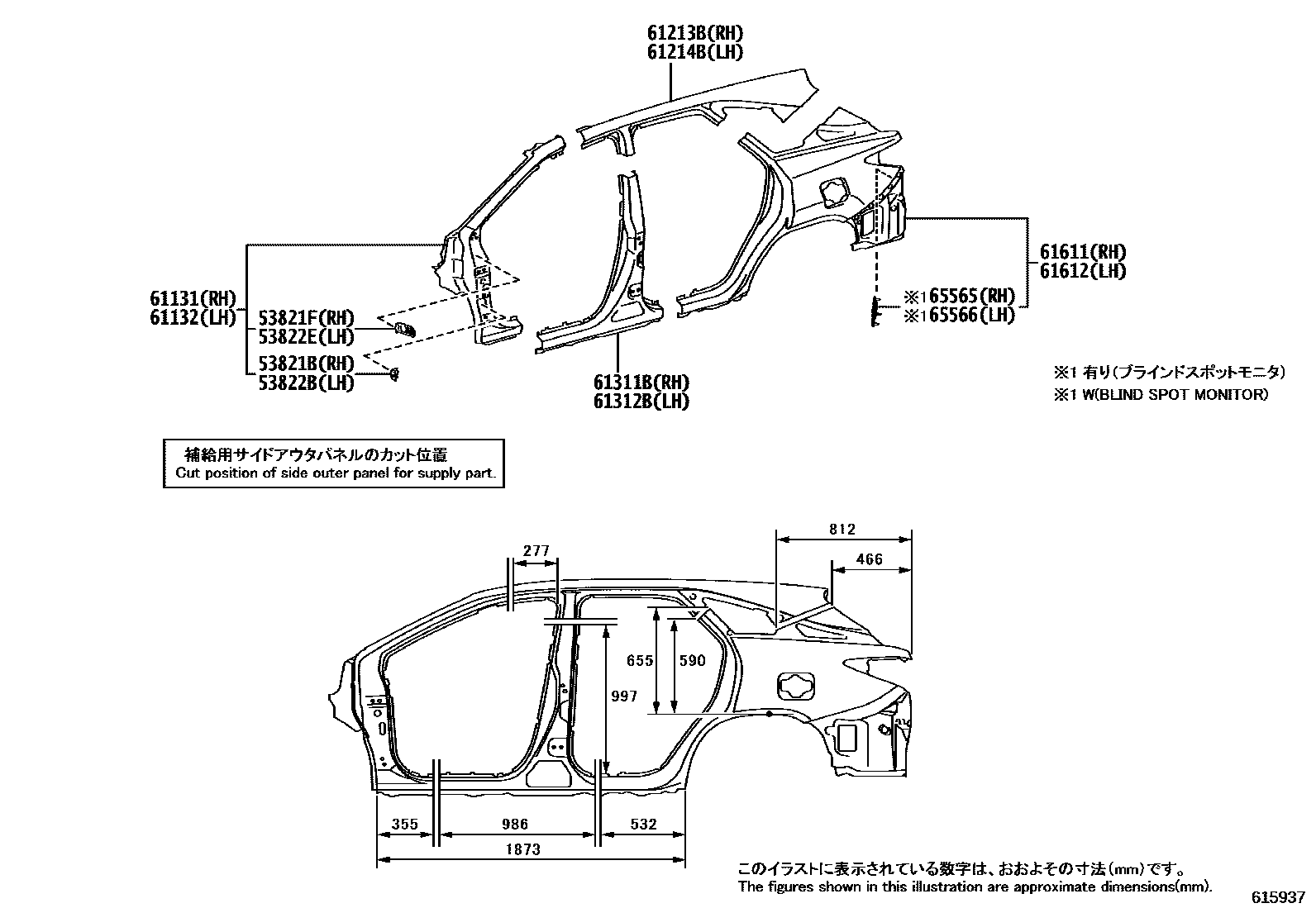

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030iGGL26,GYL26201712-201908

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-48070iGGL26,GYL26201712-201908

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030iGGL26,GYL26201712-201908

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

main53821-48070iGGL26,GYL26201712-201908

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-48050iGGL26,GYL26201712-201908

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-48060iGGL26,GYL26201712-201908

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-48090iGGL26,GYL26201712-201908

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-48090iGGL26,GYL26201712-201908

61311BPILLAR, CENTER BODY, OUTER RH

main61311-48080iGGL26,GYL26201712-201908

61312BPILLAR, CENTER BODY, OUTER LH

main61312-48080iGGL26,GYL26201712-201908

61611PANEL, QUARTER, RH

main61601-48070iGGL26,GYL26..GCC201908-202107

IRAQ SPEC

main61601-48070iGGL26,GYL26..GCC201712-202107

SYRIA SPEC

main61601-48070iGGL26,GYL26..GEN201712-202209

YEMEN SPEC

main61601-48080iGGL26,GYL26..CHI,GEN201712-202209

LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

61612PANEL, QUARTER, LH

main61602-48070iGGL26..GCC201712-202209

YEMEN SPEC

main61602-48070iGGL26,GYL26..GEN201712-202107

SYRIA SPEC

main61602-48070iGGL26,GYL26..GCC201908-202107

IRAQ SPEC

main61602-48080iGGL26,GYL26..GCC201712-202209

LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

65565PATCH, SIDE PANEL REAR END, RH

main65565-48020iGGL26,GYL26..GEN201712-201908

LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

65566PATCH, SIDE PANEL REAR END, LH

main65566-48020iGGL26,GYL26..GCC201712-201908

LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

14 parts on this diagram · 3 diagrams in section
