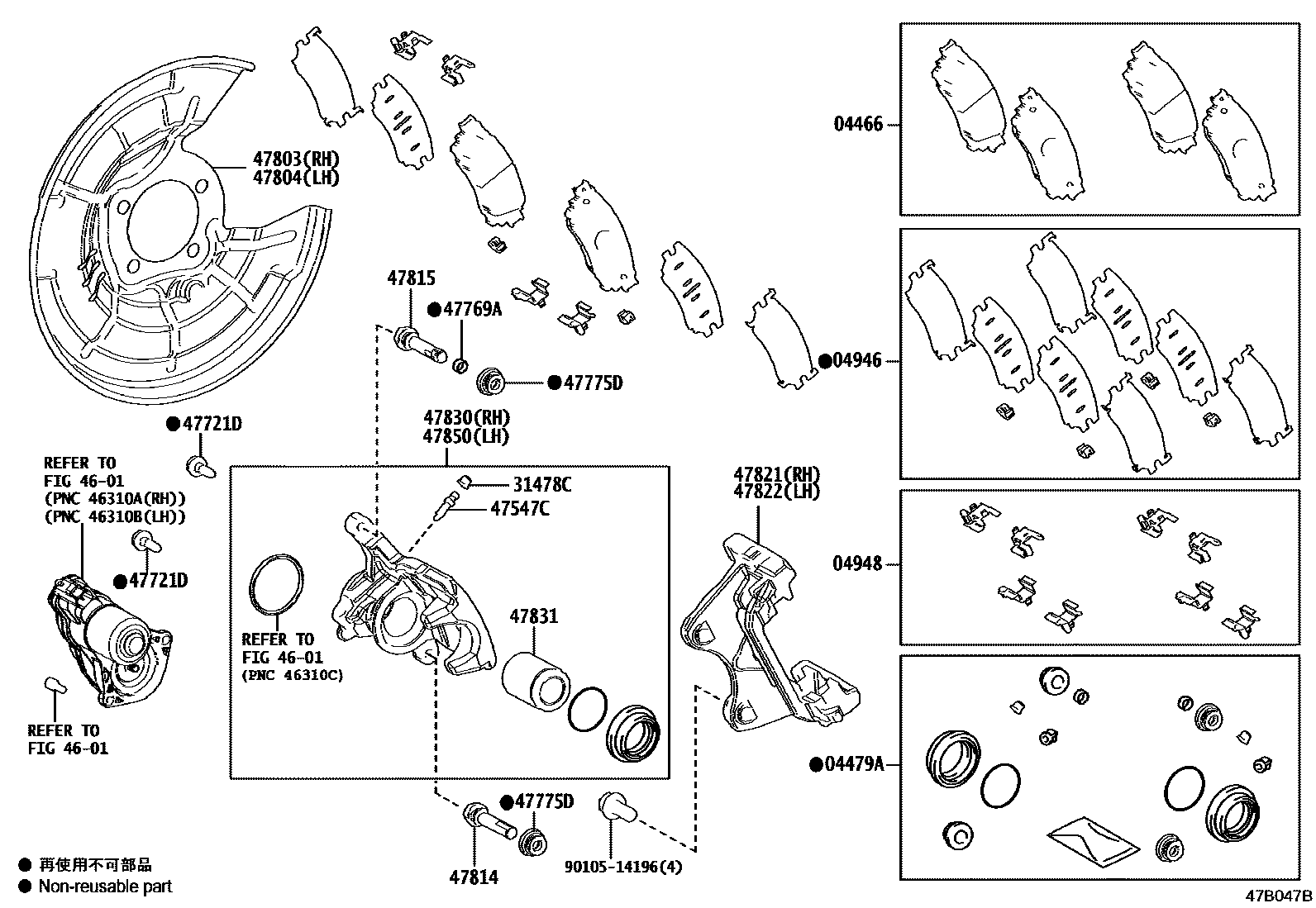

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48160iGGL26,GYL26¥5,700201712-202209

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48171iGGL26,GYL26¥3,200201712-201908

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iGGL26,GYL26¥1,780201712-201908

04948FITTING KIT, DISC BRAKE, REAR

main04948-48110iGGL26,GYL26¥1,900201712-201908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGGL26,GYL26¥160201712-201908

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGGL26,GYL26¥200201712-201908

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGGL26,GYL26¥270201712-201908

*8-1.00PX23-12.5

sub90016-AA614¥270

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iGGL26,GYL26¥50201712-201908

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iGGL26,GYL26¥70201712-201908

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-48010iGGL26,GYL26¥1,860201712-201908

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-48010iGGL26,GYL26¥1,860201712-201908

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iGGL26,GYL26¥510201712-201908

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iGGL26,GYL26¥510201712-201908

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48130iGGL26,GYL26¥4,820201712-201908

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-48130iGGL26,GYL26¥4,820201712-201908

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48130iGGL26,GYL26¥28,800201712-201908

47831PISTON, REAR DISC BRAKE

main47831-48130iGGL26,GYL26¥920201712-201908

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48130iGGL26,GYL26¥28,800201712-201908

9010514196

main90105-14196¥190

20 parts on this diagram · 1 diagram in section
