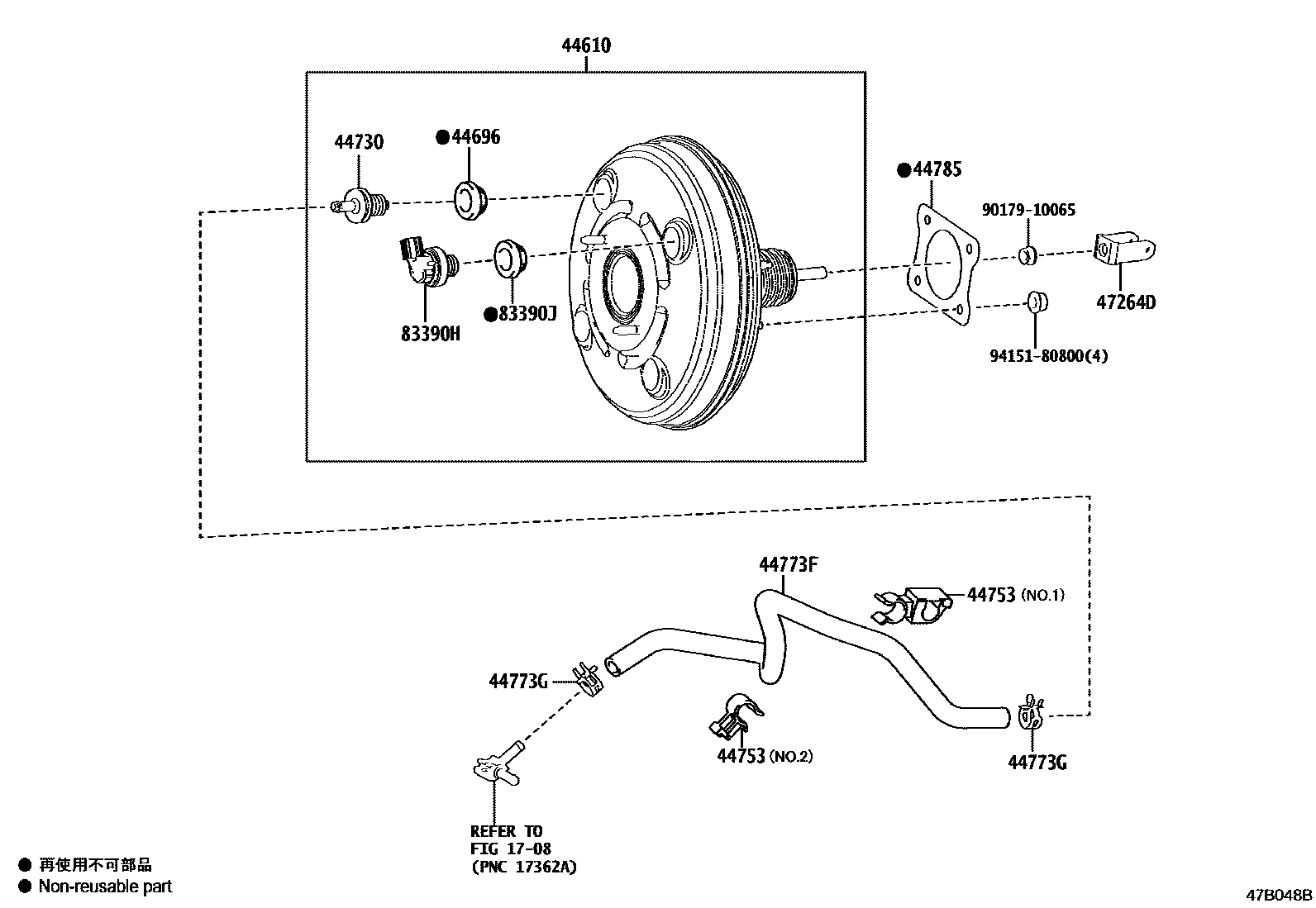

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708

44610BOOSTER ASSY, BRAKE

main44610-48440iGGL26..LHD201712-201908

main44610-48470iGGL26..RHD201712-201908

44696GROMMET, CHECK VALVE

main90480-24439iGGL26201712-201908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGGL26201712-201908

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-48350iGGL26..LHD201712-201908

NO.2

main44753-48370iGGL26..LHD201712-201908

NO.1

44773FHOSE, UNION TO CHECK VALVE

main44773-48250iGGL26..LHD201712-201908

main44773-48260iGGL26..RHD201712-201908

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGGL26201712-201908

44785GASKET, BRAKE BOOSTER

main44785-12040iGGL26201712-201908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGGL26201712-201908

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGGL26201712-201908

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGGL26201712-201908

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
