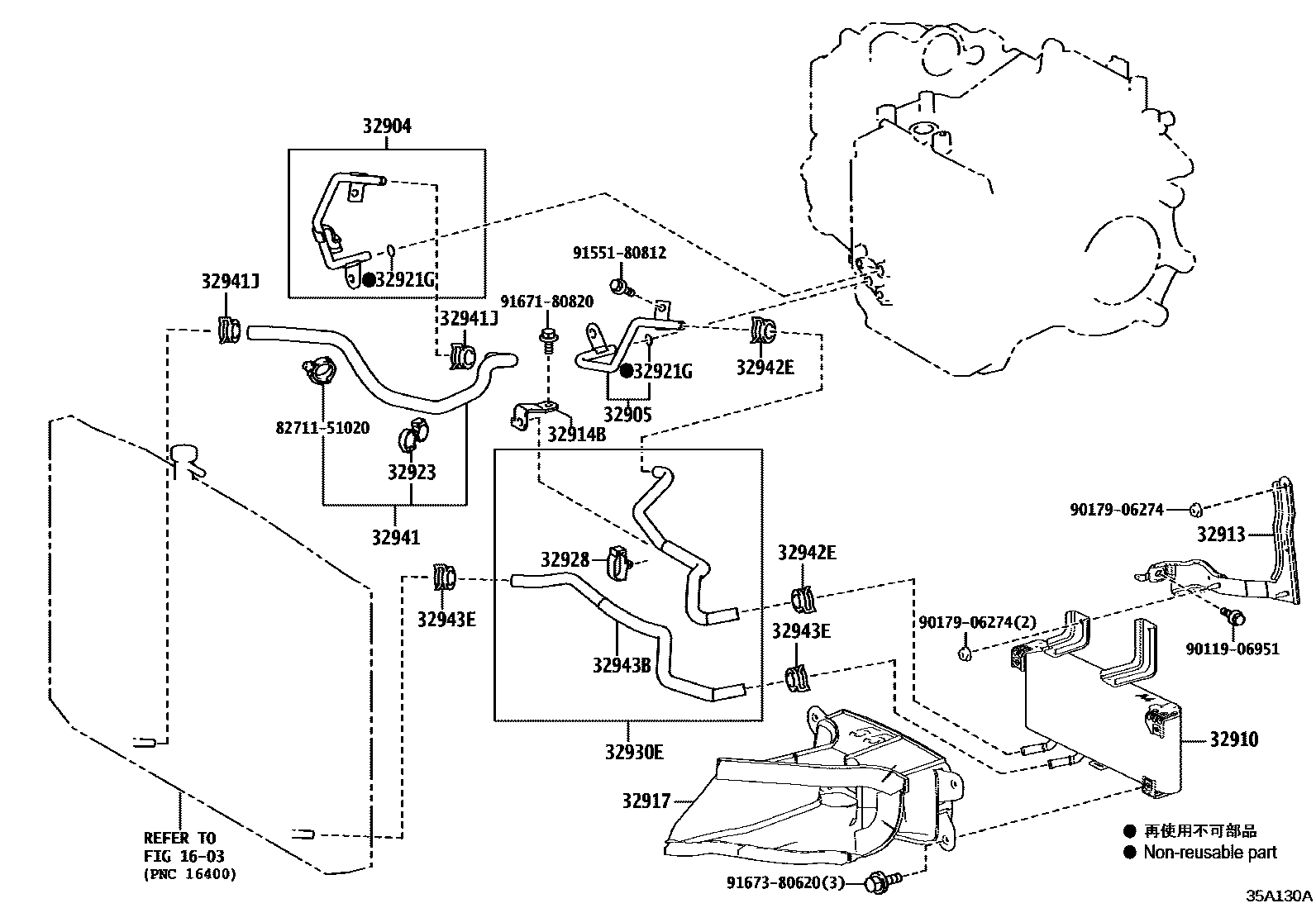

OIL COOLER & TUBE (ATM)

0001 1U881F 0002 1U881F 0003 1U881F

1603

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-48200iGGL26201908

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main32905-48240iGGL26201712-201908

32910COOLER ASSY, OIL

main32910-48090iGGL26201908

main32910-48200iGGL26201712-201908

32913BRACKET, OIL COOLER

main32913-48050iGGL26201712-201908

main32913-48070iGGL26201908

32914BSTAY, TRANSMISSION OIL COOLER

main32914-48010iGGL26201712-201908

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-48060iGGL26201712-201908

main32917-48080iGGL26201908

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11033×2iGGL26201908

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-45010iGGL26201712-201908

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030iGGL26201712-201908

32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-48070iGGL26201712-201908

32941HOSE, OIL COOLER INLET, NO.1

main32930-48050iGGL26201712-201908

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iGGL26201712-201908

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-48140iGGL26201908

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iGGL26201712-201908

32943BHOSE, TRANSMISSION OIL COOLER

main32943-48170iGGL26201712-201908

main32943-48200iGGL26201908

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×2iGGL26201712-201908

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9011906951

main90119-06951

9017906274

main90179-06274

9155180812

main91551-80812

9167180820

main91671-80820

9167380620

main91673-80620

23 parts on this diagram · 3 diagrams in section
