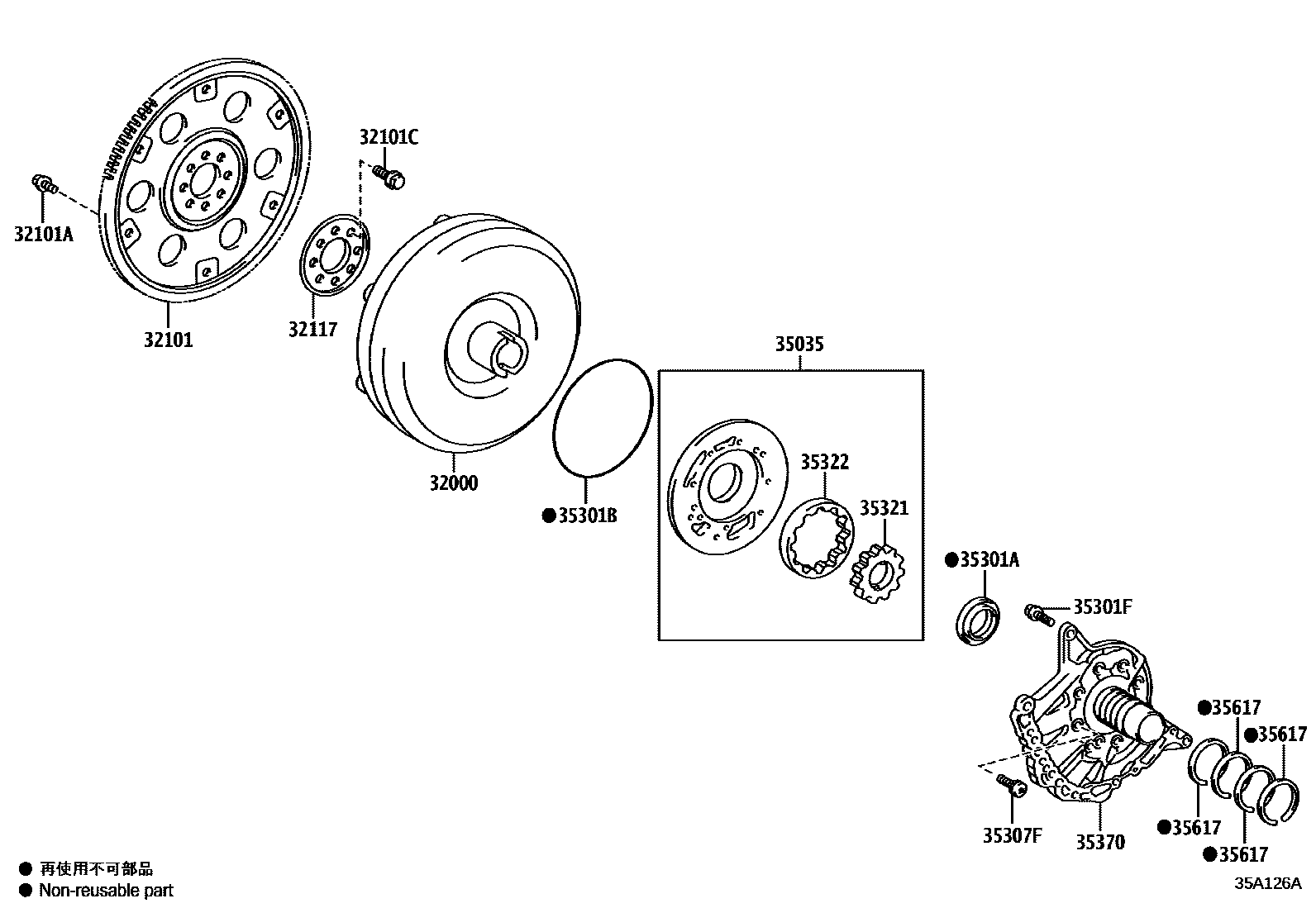

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-33160iGGL26201712-201908

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-48010iGGL26201712-201908

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iGGL26201712-201908

*9-1.25PX12.4-7.3,BLACK

main90119-09025iGGL26201712-201908

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGGL26201712-201908

*10-1.25PX18-13

32117SPACER, DRIVE PLATE, REAR

main32117-32020iGGL26201712-201908

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-48010iGGL26201712-201908

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43010iGGL26201712-201908

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99123iGGL26201712-201908

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08333iGGL26201712-201908

*8-1.25PX35-30

sub91551-C0835

main90105-08375iGGL26201712-201908

*8-1.25PX25-25

35307FBOLT (FOR STATOR SHAFT)

main90149-60067iGGL26201712-201908

35321GEAR, FRONT OIL PUMP DRIVE

main35321-48010iGGL26201712-201908

T=10.298,MARK A

main35321-48020iGGL26201712-201908

T=10.298,MARK B

main35321-48030iGGL26201712-201908

T=10.298,MARK C

main35321-48040iGGL26201712-201908

T=10.298,MARK D

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-48010iGGL26201712-201908

T=10.298,MARK A

main35322-48020iGGL26201712-201908

T=10.298,MARK B

main35322-48030iGGL26201712-201908

T=10.298,MARK C

main35322-48040iGGL26201712-201908

T=10.298,MARK D

35370SHAFT ASSY, STATOR

main35370-48010iGGL26201712-201908

35617RING, CLUTCH DRUM OIL SEAL

main35617-48010iGGL26201712-201908

14 parts on this diagram · 1 diagram in section
