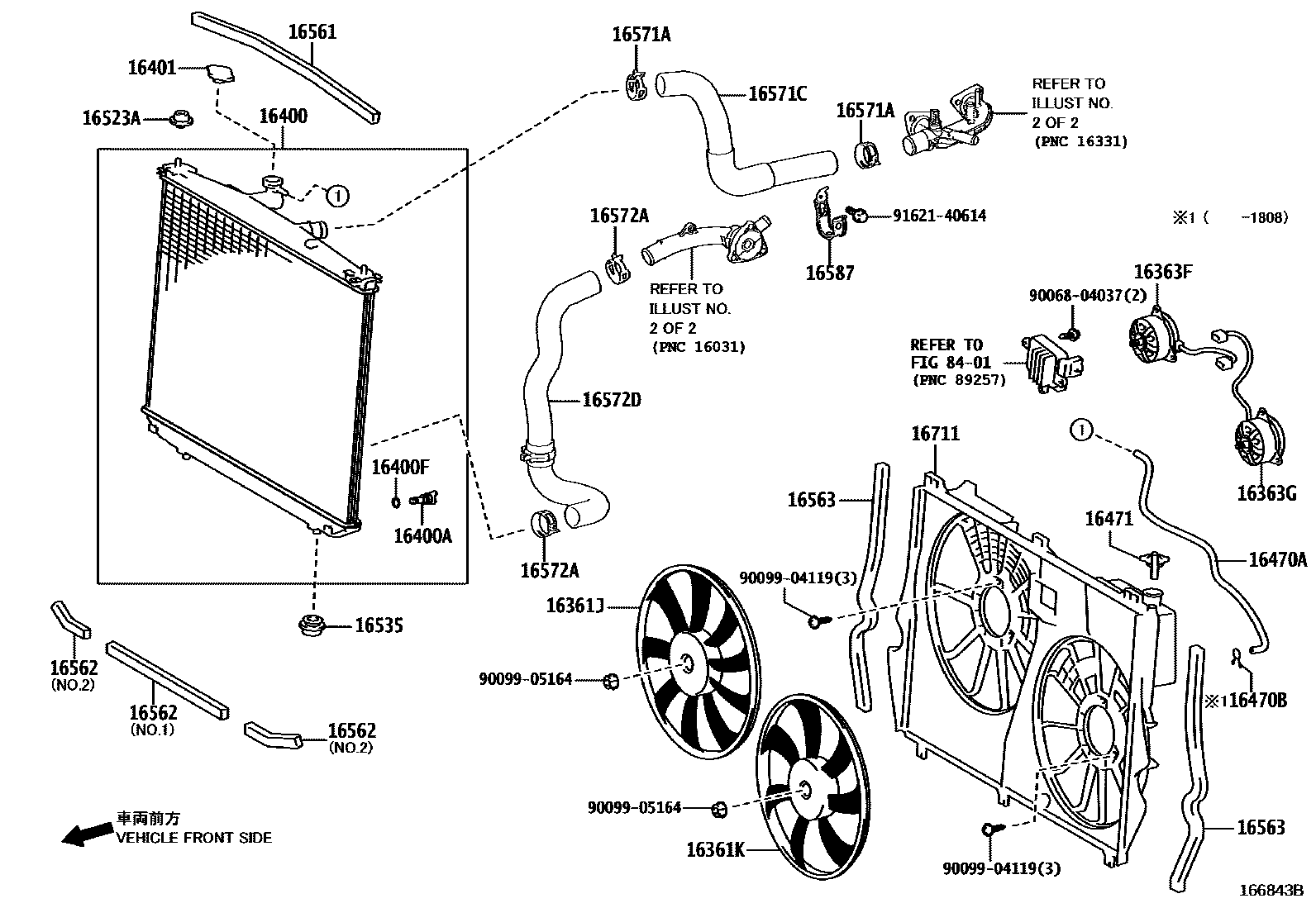

RADIATOR & WATER OUTLET
16363FMOTOR, COOLING FAN, RH
16363GMOTOR, COOLING FAN, LH
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.1
NO.2
NO.3
16562SEAL, RADIATOR TO SUPPORT, NO.2
NO.1
NO.2
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16587CLAMP, RADIATOR PIPE
16711SHROUD, FAN
8401
9006804037
main90068-04037
9009904119
main90099-04119
9009905164
main90099-05164
9162140614
main91621-40614
27 parts on this diagram · 6 diagrams in section
