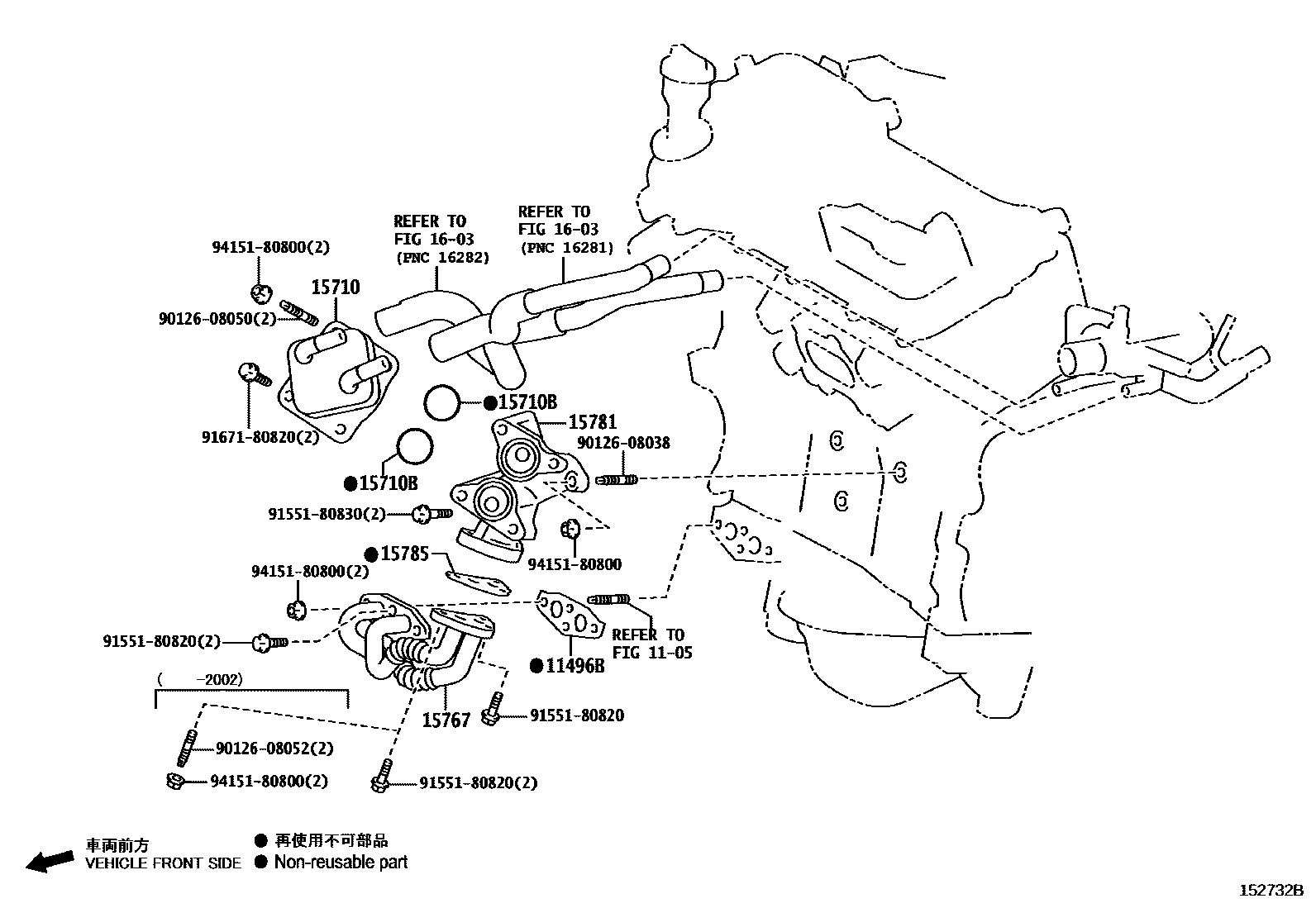

ENGINE OIL COOLER

1105

11496BGASKET, OIL HOLE COVER

main11496-31020i2GRFKS..GGL26201712-201908

15710COOLER ASSY, OIL

main15710-31060i2GRFKS..GGL26201712-201908

15710BRING, O(FOR OIL COOLER)

main15785-31050i2GRFKS..GGL26201806-201908

main96723-35035i2GRFKS..GGL26201712-201805

sub15785-31050

15767PIPE, OIL COOLER

main15767-31030i2GRFKS..GGL26201712-201809

sub15767-31031

sub12583-31011

main15767-31031i2GRFKS..GGL26201810-202008

sub15767-31032

main15767-31032i2GRFKS..GGL26202009

15781BRACKET, OIL COOLER, NO.1

main15781-31020i2GRFKS..GGL26201712-201908

15785GASKET, OIL COOLER

main15785-31040i2GRFKS..GGL26201712-201908

1603

9012608038

main90126-08038

9012608050

main90126-08050

9012608052

main90126-08052

9155180820

main91551-80820

9155180830

main91551-80830

9167180820

main91671-80820

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
