HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT,W(REAR AIR CONDITIONER)0004 1FRONT,W(REAR AIR CONDITIONER)0005 1FRONT 0006 1FRONT 0007 1FRONT,W(REAR AIR CONDITIONER)0008 1FRONT,W(REAR AIR CONDITIONER)0009 1REAR 0010 1REAR,W(REAR AIR CONDITIONER)

8714

8719

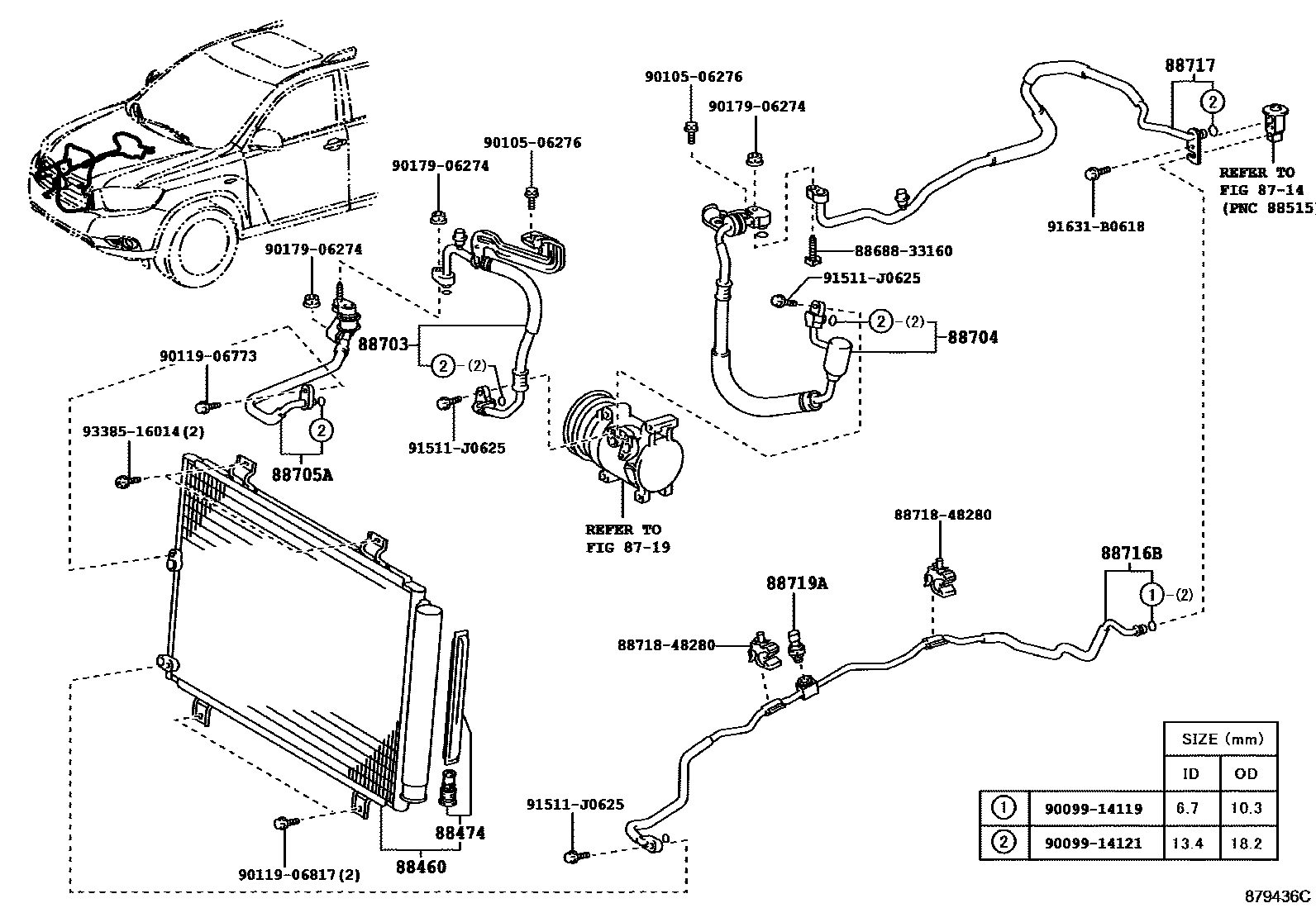

88460CONDENSER ASSY, COOLER

main88460-48100iGSU4#200705-201007

main88460-48101iGSU4#201007-201312

88474DRYER, COOLER

main88474-17010iGSU4#..CHI200705-201312

88703HOSE SUB-ASSY, DISCHARGE

main88703-48151iGSU4#..CHI200705-201007

main88703-48240iGSU4#201007

88704HOSE SUB-ASSY, SUCTION

main88704-48120iGSU4#..CHI200705-201007

main88704-48220iGSU4#201007

88705ATUBE SUB-ASSY, DISCHARGE

main88705-48100iGSU4#..CHI200705-201007

main88705-48180iGSU4#201007

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-48190iGSU40..CHI200705-200901

WITH(REAR MANUAL AIR CONDITIONER)

sub88716-48330

main88716-48200iGSU40..CHI200705-200901

WITHOUT(REAR AIR CONDITIONER)

sub88716-48340

main88716-48240iGSU4#..ARL200705-201007

main88716-48370iGSU4#..GD201007-201312

REAR AIR CONDITIONER-MANUAL

main88716-48370iGSU4#..GD201007-201312

REAR AIR CONDITIONER-AUTO

main88716-48390iGSU45..RUS201007-201310

sub88716-48391

main88716-48391iGSU45..RUS201310-201312

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-48110iGSU4#..ARL200705-201007

main88717-48120iGSU4#..STD..ARL201007

REAR AIR CONDITIONER-MANUAL

main88717-48120iGSU45..CHI200705-200901

WITH(REAR MANUAL AIR CONDITIONER)

main88717-48120iGSU4#..GD,LIMD;GSU45..STD..RUS201007

REAR AIR CONDITIONER-AUTO

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSU4#..CHI200705-201312

8868833160BRACKET, COOLER DIAPHRAGM

main88688-33160

8871848280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48280

9009914119

main90099-14119

9009914121

main90099-14121

9010506276

main90105-06276

9011906773

main90119-06773

9011906817

main90119-06817

9017906274

main90179-06274

91511J0625

main91511-J0625

91631B0618

main91631-B0618

9338516014

main93385-16014

21 parts on this diagram · 10 diagrams in section
