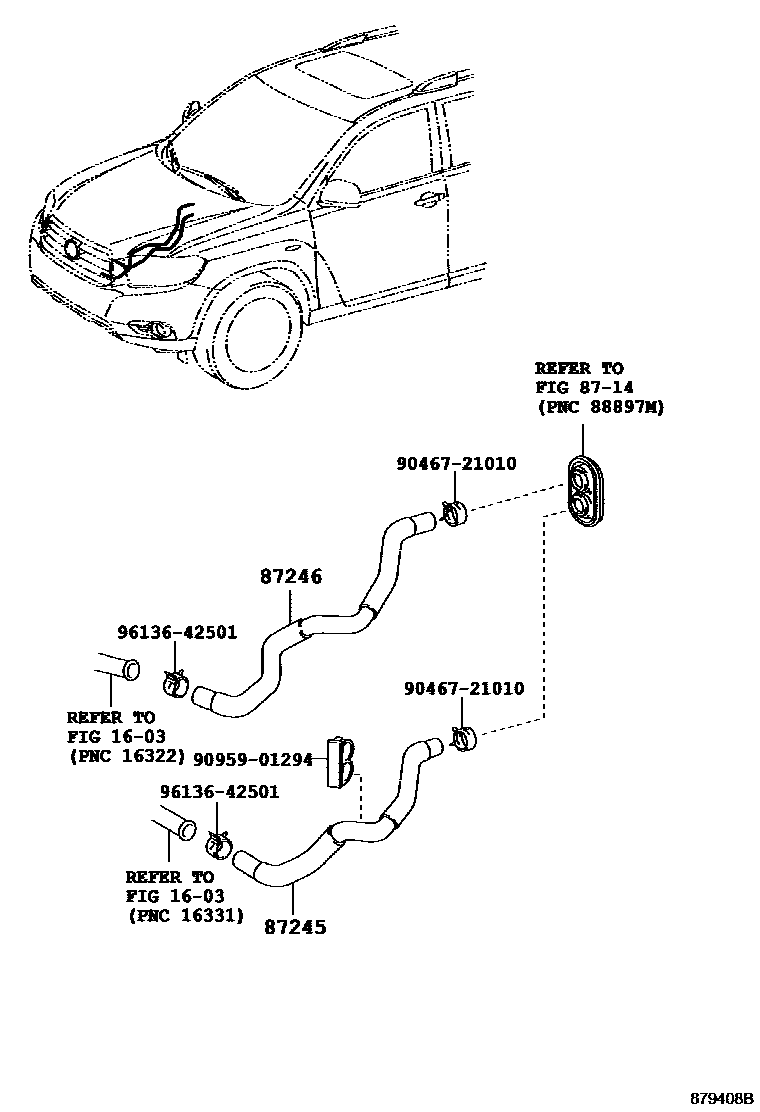

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT,W(REAR HEATER) 0003 1REAR

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-48140iGSU4#..GD,LIMD;GSU45..STD..RUS201007-201204

REAR AIR CONDITIONER-MANUAL

sub87209-48141

main87209-48140iGSU45..CHI200705-200901

WITH(REAR MANUAL AIR CONDITIONER)

sub87209-48141

main87209-48140iGSU4#..GD,LIMD;GSU45..STD..RUS201007-201204

REAR AIR CONDITIONER-AUTO

sub87209-48141

main87209-48141iGSU4#..STD..ARL201204

REAR AIR CONDITIONER-MANUAL

main87209-48141iGSU4#..STD..ARL201204

REAR AIR CONDITIONER-AUTO

main87245-48C00iGSU45..SPO200705-200901

WITHOUT(REAR AIR CONDITIONER)

main87245-48C00iGSU4#..ARL200705-201007

main87245-48C00iGSU4#..STD..ARL201007

REAR AIR CONDITIONER-WITHOUT

87246HOSE, HEATER WATER, OUTLET

main87209-48150iGSU4#..STD..ARL201007-201204

REAR AIR CONDITIONER-MANUAL

sub87209-48151

main87209-48150iGSU4#..STD..ARL201007-201204

REAR AIR CONDITIONER-AUTO

sub87209-48151

main87209-48150iGSU45..CHI200705-200901

WITH(REAR MANUAL AIR CONDITIONER)

sub87209-48151

main87209-48151iGSU4#..GD,LIMD;GSU45..STD..RUS201204

REAR AIR CONDITIONER-MANUAL

main87209-48151iGSU4#..GD,LIMD;GSU45..STD..RUS201204

REAR AIR CONDITIONER-AUTO

main87245-48C10iGSU45..STD..RUS201007

REAR AIR CONDITIONER-WITHOUT

main87245-48C10iGSU40..CHI200705-200901

WITHOUT(REAR AIR CONDITIONER)

main87245-48C10iGSU4#..ARL200705-201007

9046721010

main90467-21010

9095901294

main90959-01294

9613642501

main96136-42501

7 parts on this diagram · 3 diagrams in section
