HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1REAR AIR DUCT 0006 1SENSOR

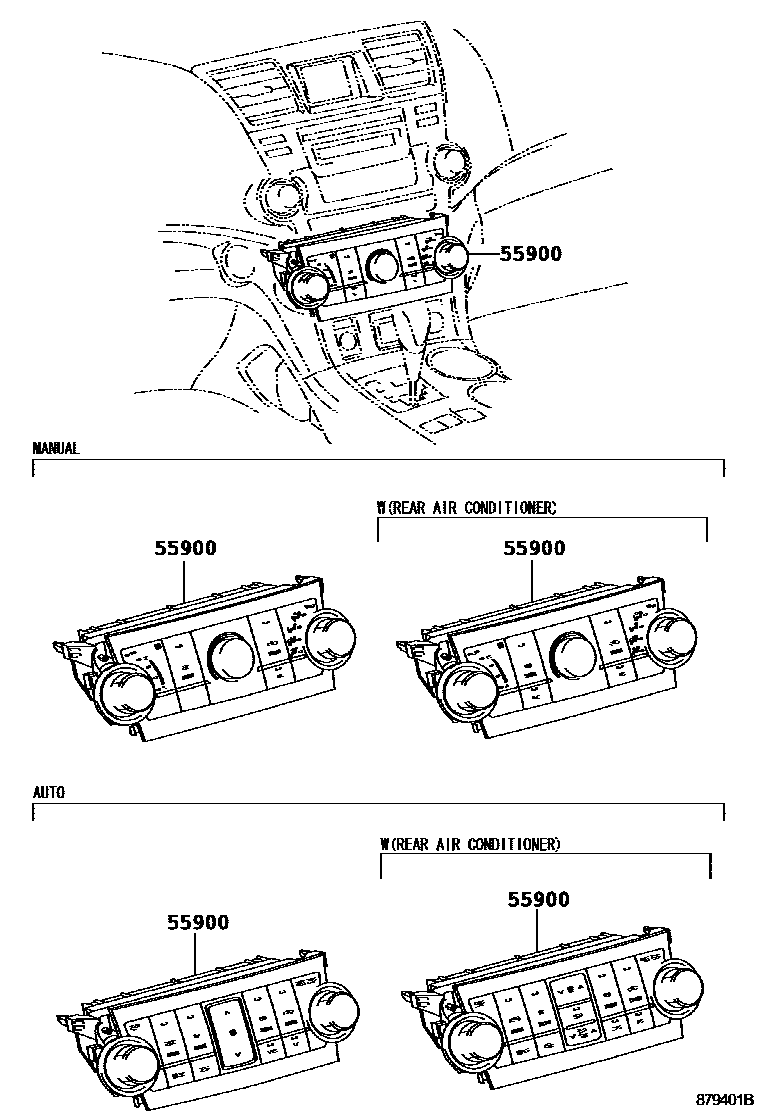

55900CONTROL ASSY, AIR CONDITIONER

main55900-48070iGSU40..CHI200705-200901

WITHOUT(REAR AIR CONDITIONER)

main55900-48080iGSU45..SPO200705-200901

WITH(REAR MANUAL AIR CONDITIONER)

main55900-48090iGSU4#..STD..ARL200705-200711

sub55900-48091

main55900-48091iGSU4#..STD..ARL200712-201007

main55900-48200iGSU4#..GD200705-200711

sub55900-48201

main55900-48201iGSU4#..GD200712-201007

main55900-48220iGSU45..LIMD200705-200901

main55900-48410iGSU4#..STD..ARL201007

main55900-48450iGSU4#..GD201007

main55900-48470iGSU45..STD..RUS201007

main55900-48480iGSU45..LIMD201007

1 parts on this diagram · 6 diagrams in section
