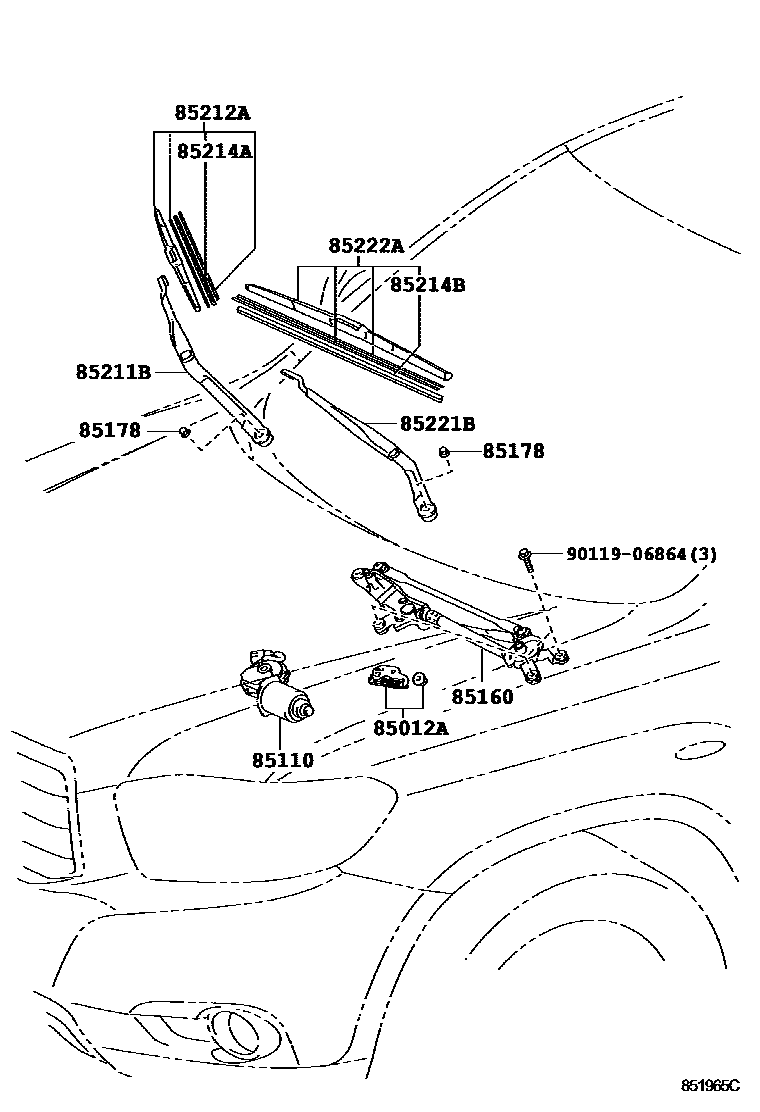

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iGSU4#..CHI200705-200901

main85012-58030iGSU4#..ARL200705-201007

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48120iGSU4#..CHI200705-200901

main85110-48140iGSU4#..ARL200705-201007

85160LINK ASSY, WINDSHIELD WIPER

main85150-48070iGSU45..RUS200705-200901

main85150-48080iGSU4#..ARL200705-201007

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGSU4#..CHI200705-201007

85211BARM, FRONT WIPER, RH

main85211-48120iGSU4#..CHI200705-201301

sub85211-48121

main85211-48121iGSU45..RUS201302

main85211-48130iGSU4#..ARL200705-201007

85212ABLADE, FR WIPER, RH

main85212-48120iGSU4#..ARL200705-201007

sub85212-60220

main85212-53081iGSU4#..CHI200705-200901

85214ARUBBER, WIPER, RH

main85214-53090iGSU4#..CHI200705-200901

main85214-68020iGSU4#..ARL200705-201007

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-53090iGSU4#..ARL200705-201007

main85214-68020iGSU45..RUS200705-200901

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-48120iGSU4#..CHI200705-200901

main85221-48130iGSU4#..ARL200705-201007

85222ABLADE, FR WIPER, LH

main85222-48130iGSU4#..CHI200705-200901

sub85222-60260

main85222-53060iGSU4#..ARL200705-201007

9011906864

main90119-06864

11 parts on this diagram · 2 diagrams in section
