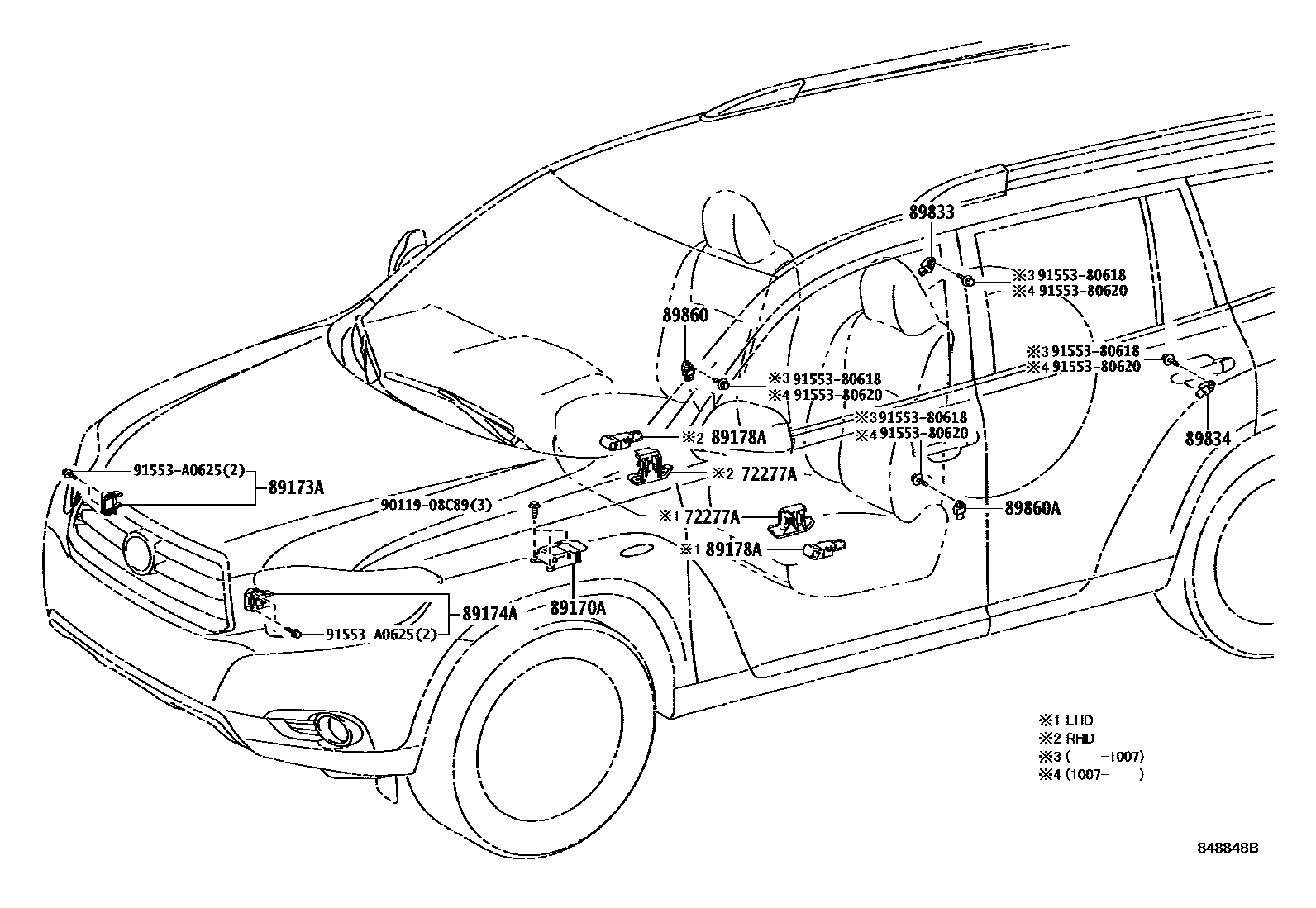

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER(WITH PERFORATION)&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
89170ACOMPUTER ASSY, AIRBAG
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
89178ASENSOR, SEAT POSITION AIRBAG
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
CVX PACKAGE&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
CVX PACKAGE&SEAT COVER MATERIAL-LEATHER(WITH PERFORATION)&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER
FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
89860SENSOR ASSY, SIDE AIRBAG, RH
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
89860ASENSOR ASSY, SIDE AIRBAG, LH
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD)
9011908C89
main90119-08C89
9155380618
main91553-80618
9155380620
main91553-80620
91553A0625
main91553-A0625
13 parts on this diagram · 1 diagram in section
