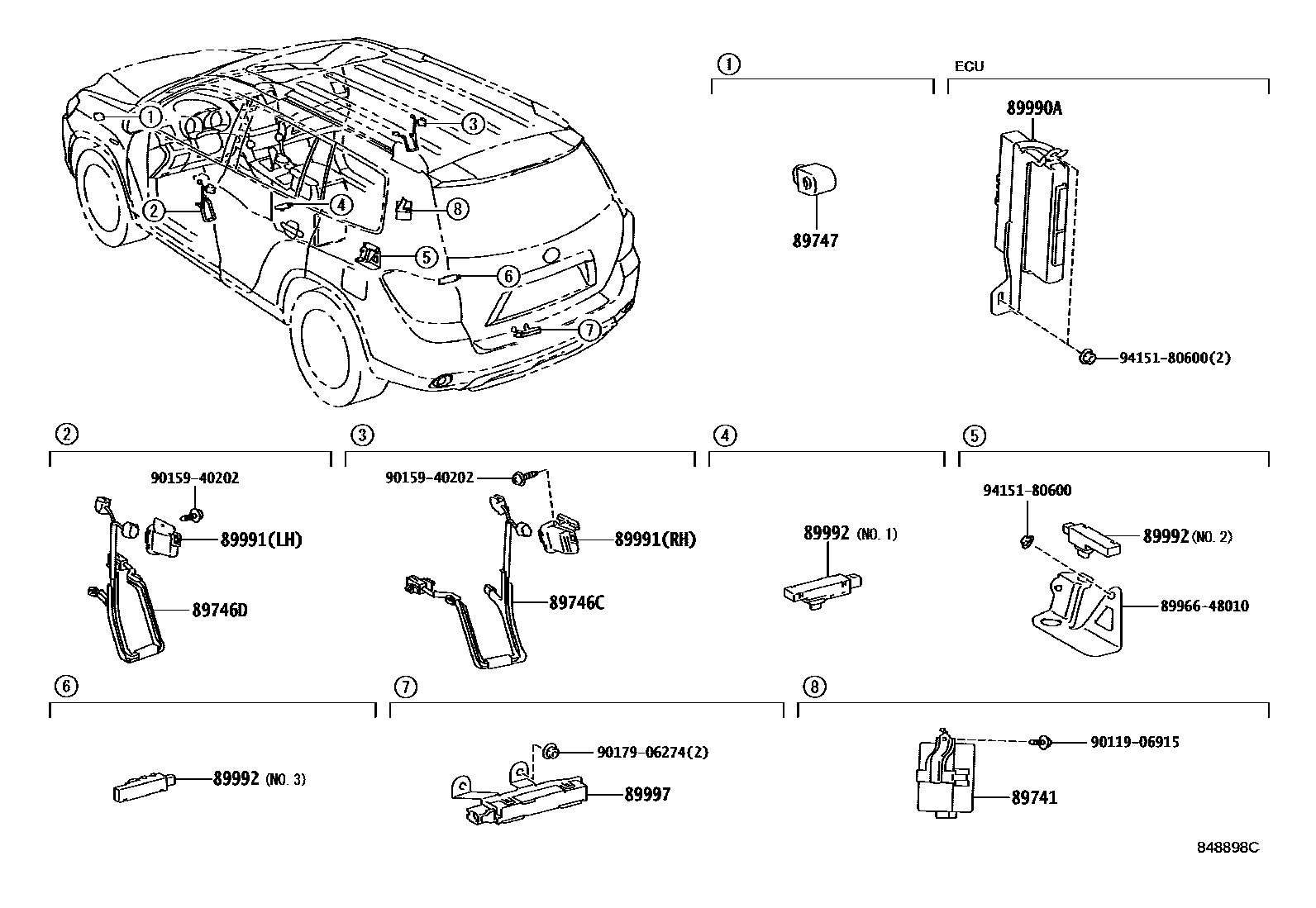

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-48031iGSU4#..GD200705-201007

main89740-48040iGSU45..LIMD200705-200901

main89740-48180iGSU45..LIMD201007

main89741-0W011iGSU4#..STD..ARL200705-201007

main89741-48260iGSU4#..(SPO,STD)..CHI200705-200901

main89741-48270iGSU45..STD..RUS201007

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-48040iGSU45..LIMD200705-200901

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-48050iGSU45..LIMD200705-200901

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iGSU4#..CHI200705-200901

89990ACOMPUTER ASSY, SMART KEY

main89990-48020iGSU45..LIMD200705-200901

sub89990-48021

main89990-48030iGSU4#..GD200705-200903

main89990-48031iGSU4#..GD200904-201007

sub89990-48032

main89990-48160iGSU45..LIMD201007

main89990-48170iGSU4#..GD201007

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iGSU4#..GD,LIMD200705-201007

RH

main89991-30050iGSU4#..GD,LIMD201007-201312

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-42020×2iGSU45..LIMD200705-200901

NO.2 & NO.3

main89992-52020iGSU4#..GD200705-201007

NO.1

89997ANTENNA, ELECTRICAL KEY

main89997-48020iGSU4#..GD,LIMD201007

8996648010BRACKET, OSCILLATOR ELECTRICAL KEY

main89966-48010

9011906915

main90119-06915

9015940202

main90159-40202

9017906274

main90179-06274

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
